4. Place pole into the base, aligning the pin on the flange with the pin hole in the base. Place bolt, spacer, and washer,
oriented as shown, into the pole. Tighten securely with the enclosed Allen wrench. (The assembly may need to be tilted.)
5. Before using the video colposcope, refer to "Setting Up Video Colposcope" section of this manual.

Swing Arm Stand Assembly

The video colposcope stand is shipped unassembled. Minimal assembly is required.
NOTE: BASE WEIGHS 58 LBS. YOU MAY REQUIRE ASSISTANCE TO LIFT IT.

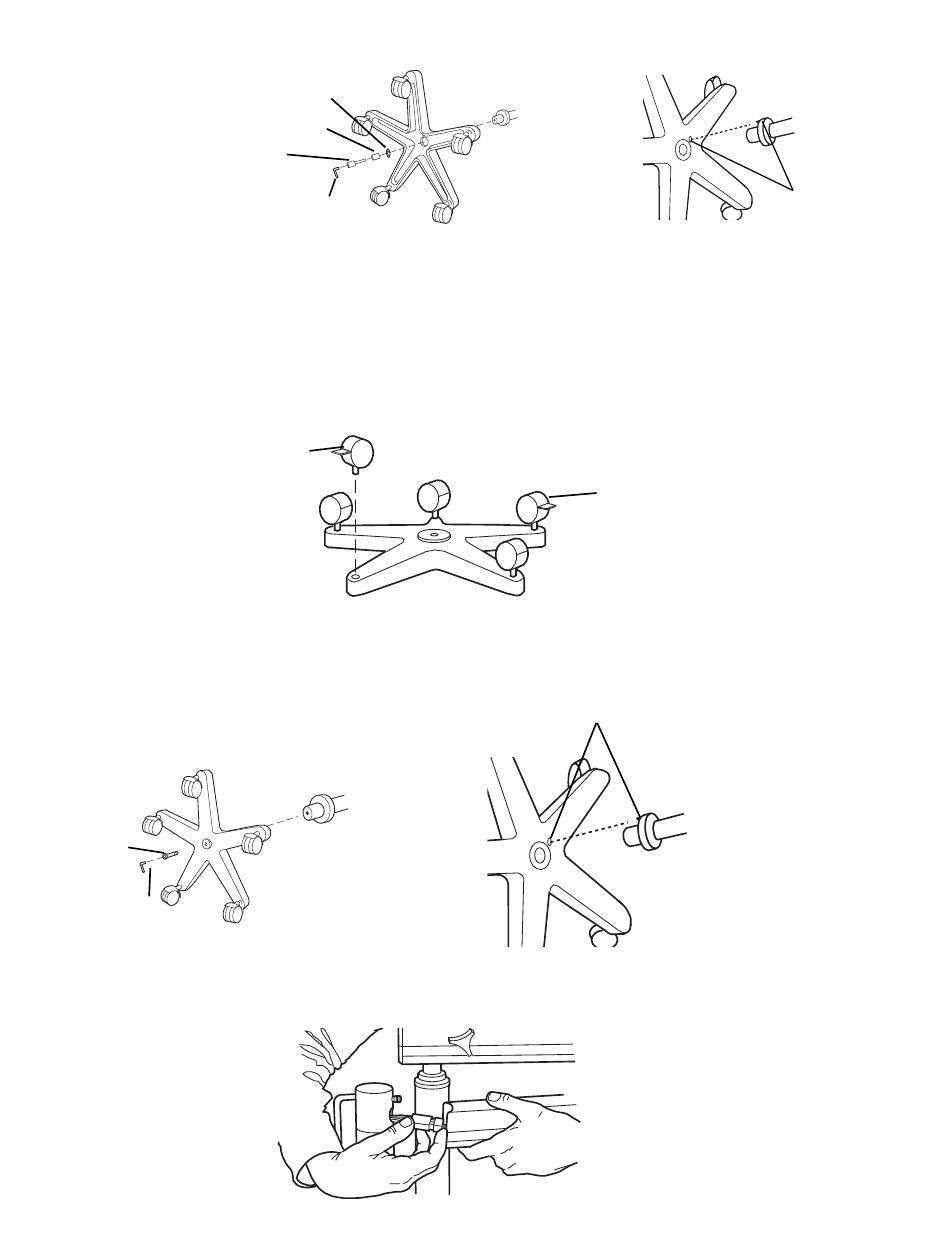

1. To assemble the stand, remove the stand and base parts from the cartons.
2. Place base upside down on the floor and insert casters into holes on the bottom of the base. (Do not place two locking
casters next to each other.)
Locking caster
3. Place the base on the floor with casters down. Lock the two locking casters.
4. Place the vertical pole section of the assembly into the base, aligning the pin on the flange with the pin hole in
the base.
5. Locate the packaged bolt.
6. Place the bolt through the bottom of the pole.
(The assembly may need to be tilted.)
Hex Bolt
Allen Wrench
7. Tighten securely with the enclosed Allen wrench.
8. Remove the bolt from the arm of the colposcope assembly and insert it through the hole near the top of the pole.
Washer
Spacer
Hex Bolt
Allen Wrench
Locking caster
Align pin with hole
9. Position the pole and the arm of the
10. Connect the two wire harnesses
13
Align pin
with hole
remaining colposcope assembly in
close proximity.
via their connectors. (This may
require assistance for proper
assembly.)
