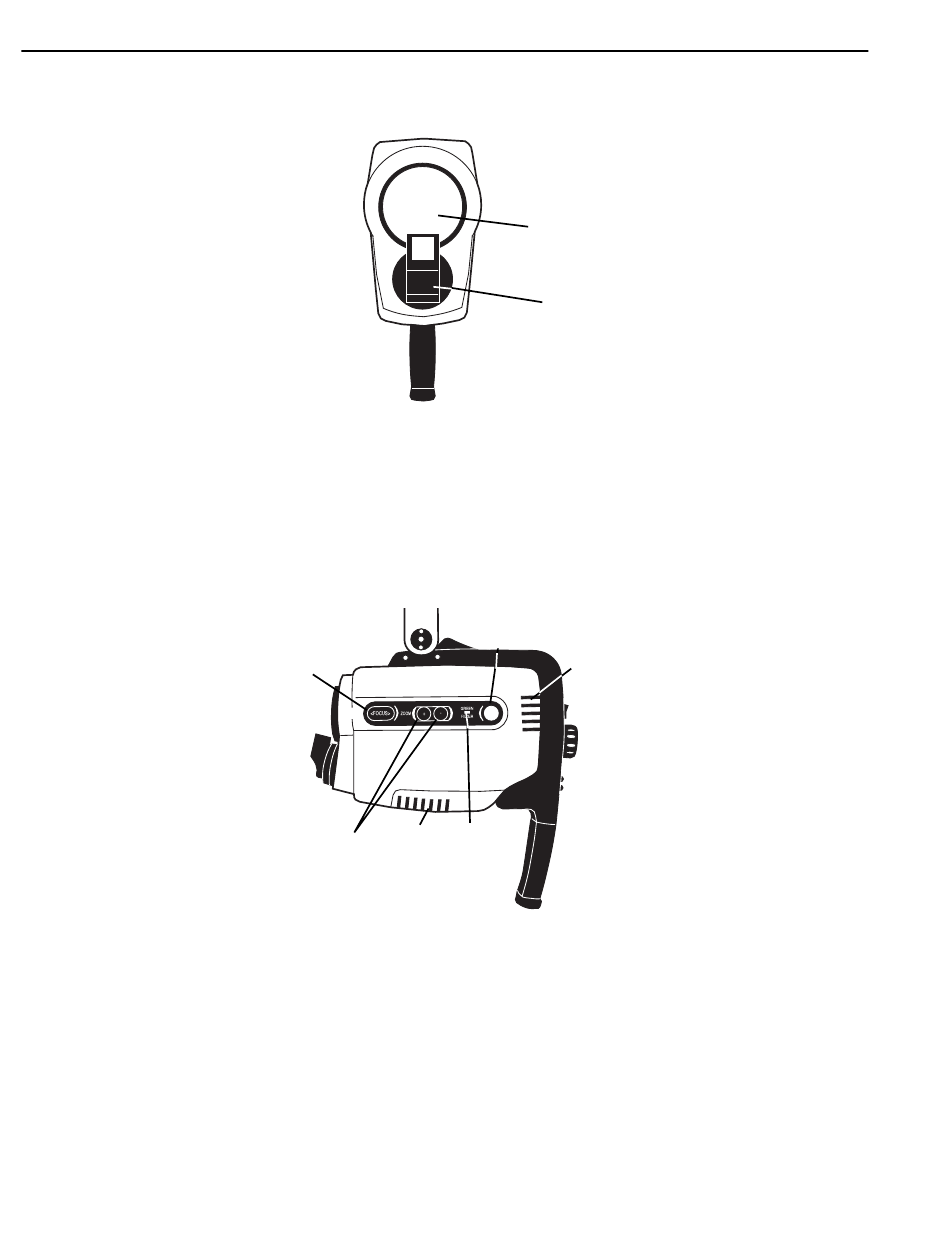

Nomenclature

Video Colposcope Front View

Name
1. Objective lens
2. Illumination beam director

Video Colposcope Side View

Name
3. Ventilation slots
4. Zoom control button
5. Focus control button
6. Green filter button
7. LED indicator
.
Function
The lens that establishes the magnification and field of view.
Directs lamp beam.
5
3
7
4
Function
Allow air to enter and leave unit, cooling internal components.
Pressing + or - increases or decreases magnification accordingly.
Pressing < or > adjusts the focus.
Pressing turns the electronic green filter on or off.
Illuminates if the electronic green filter is on. Flashes during activation
or deactivation.
7
1
2
6
3
