English

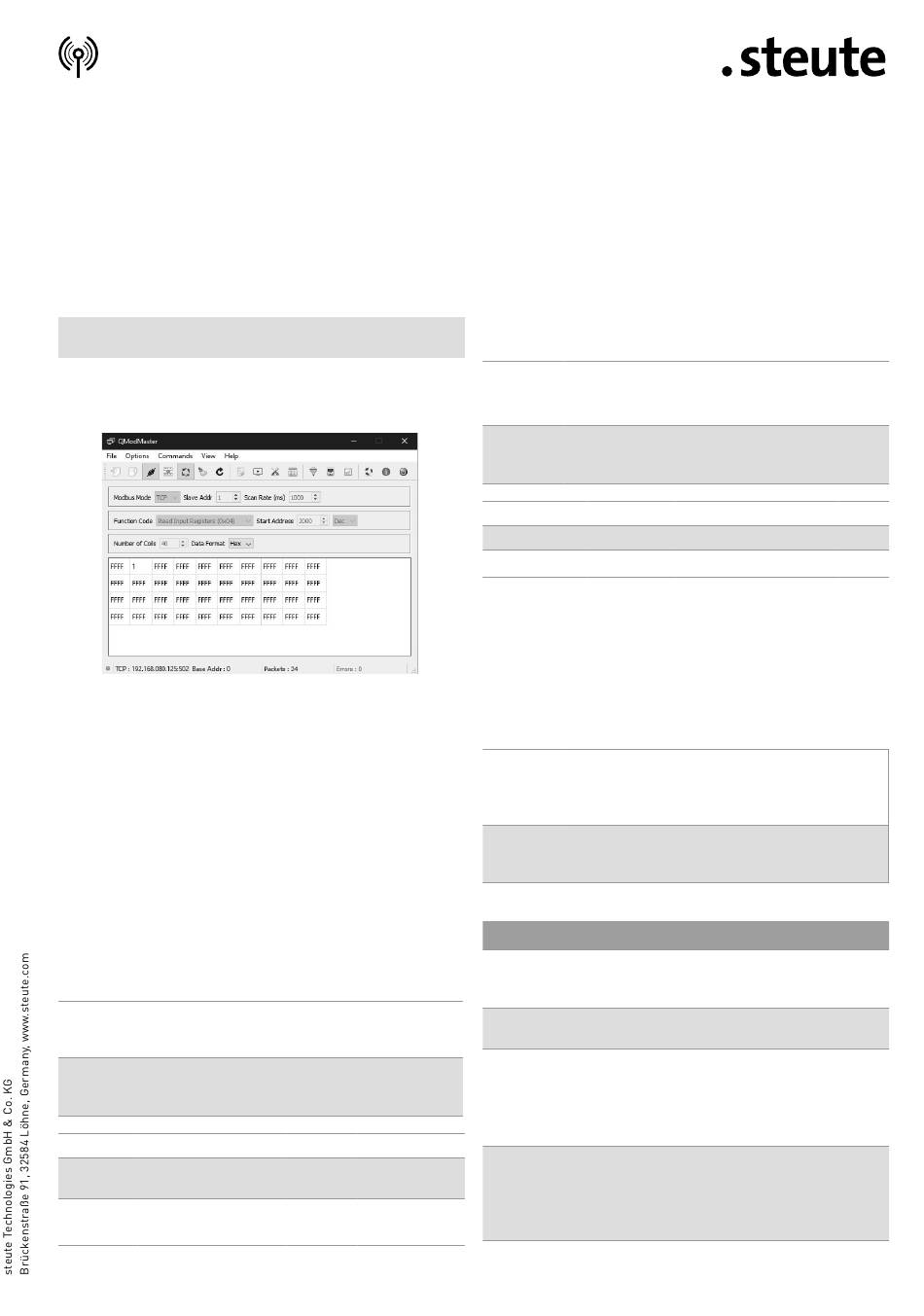

To test the function, a ModbusTCP tool such as the freely available

QModMaster is useful (https://sourceforge.net/projects/qmodmaster/),

e.g. on a laptop in the network of the PLC and the Gateway.

The IP address and port of the Gateway must be set in the ModbusTCP

settings. 2000 was selected as the start address in order to read out all

40 possible switches at once. After clicking on the »Connect« and

»Scan« icons (marked in blue), the tool cyclically retrieves the switch

data. The screenshot shows switch 2 as pressed. All other switches

have not been pressed since the Gateway was restarted.

Wireless telegram

The wireless telegram included in the TCP/UDP datagram is transmit-

ted in hexadecimal coding as an ASCII string with a terminating »[LF]«

control character (line feed). In special cases it is possible that one da-

tagram contains several wireless telegrams separated by »[LF]«. This

is possible especially after an ethernet transmission error when at this

particular time of the repeated transmission further wireless tele-

grams have already been received by the Gateway.

Example sWave® telegram

Data: (hex

0000: 30 32 30 41 34 32 33 35 44 39 42 46 31 30 37 45

stream,

0010: 46 30 30 30 30 30 39 39 0a

25 byte)

Data:

020A4235D9BF107EF0000099[LF]

(ASCII, 25

characters)

Byte

3 4 5

Mean-

Pre-

LEN

MODE

ADR

ing

amble

HEX

35D9BF

code

*interface definition sWave ® on request!

Data #1

RSSI

Data #2

Bat

Sensor

Example EnOcean® telegram

Data: (hex

0000: 41 35 35 41 30 42 30 35 33 30 30 30 30 30 30 30

stream,

0010: 30 30 31 30 36 41 31 44 33 30 30 37 0a

29 byte)

Data:

A55A0B053000000000106A1D3007[LF]

(ASCII, 29

charaters)

Byte

0 1

Meaning

Sync

LEN

HEX code

A55A

*interface definition EnOcean ® at http://www.enocean.com!

Error telegram

If the Gateway detects an error, it attempts to transmit an error tele-

gram to the configurated receiver. An error telegram always starts

with »E:«, followed by the error text and a terminating »[LF]«.

Example telegram

Data: (Hex

0000: 45 3a 20 54 43 50 20 6d 65 73 73 61 67 65 20 64

stream,

0010: 69 63 61 72 64 65 64 20 28 73 6f 63 6b 65 74 20

29 byte)

0020: 6e 6f 74 20 6f 70 65 6e 29 20 6c 69 6e 65 3a 20

0030: 41 4c 4c 00 0a

Data:

E: TCP message discarded (socket open) line: ALL

(ASCII, 29

[LF]

characters)
