Operating Manual
Inductive Positioning System BIP AD0-B014-01-EP02
No. 872877 EN E16

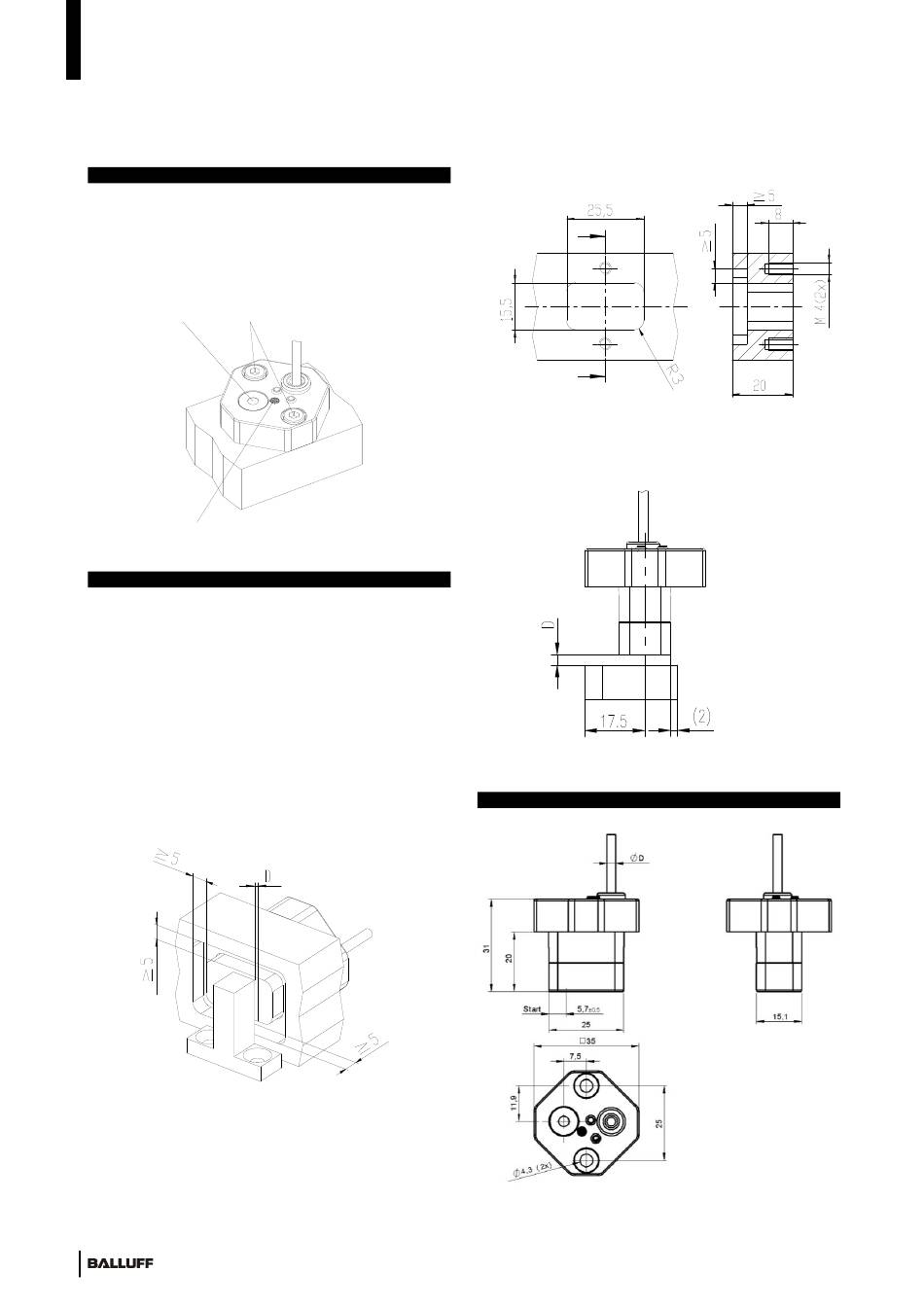

Installation
1.
Pushbutton
2.
2 screws for example DIN 912 M4x14 (not
included). Torque of the fastening screws, max.
0.5Nm
LED – indicator
3.
1
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
3
Installation notices
A metal-free area of approx. 5mm should be maintained
around the active surface of the sensor to minimize
influencing of the measurement signal by the installation
material (see installation diagrams 1+2).
If, in addition to the position encoder, another metal part
is detected by the sensor, invalid measurement signals
result.
To obtain a measurement signal with high resolution, it is
necessary to ensure that cables are laid appropriately in
the machine and that suitable filtering measures are
taken with the voltage supply of the system.
Installation diagram 1
2
2
Installation diagram 2
For the correct target position see following diagram
Installation diagram 3
For details on dimension D, see page 4 - Remarks
Product view
