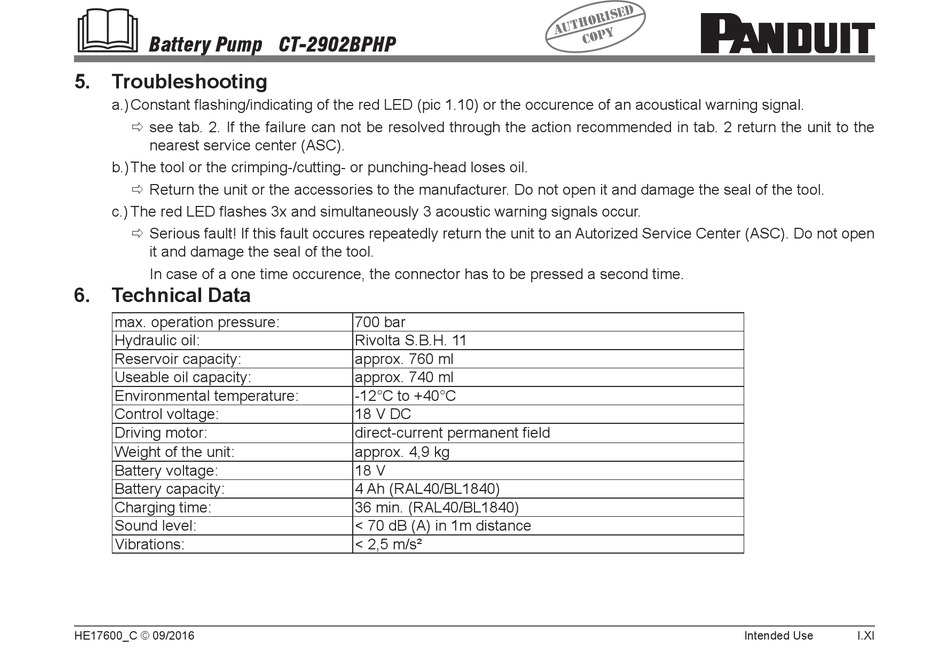

Battery Pump CT-2902BPHP
5. Troubleshooting
a.) Constant fl ashing/indicating of the red LED (pic 1.10) or the occurence of an acoustical warning signal.
 see tab. 2. If the failure can not be resolved through the action recommended in tab. 2 return the unit to the
nearest service center (ASC).
b.) The tool or the crimping-/cutting- or punching-head loses oil.
 Return the unit or the accessories to the manufacturer. Do not open it and damage the seal of the tool.
c.) The red LED fl ashes 3x and simultaneously 3 acoustic warning signals occur.
 Serious fault! If this fault occures repeatedly return the unit to an Autorized Service Center (ASC). Do not open
it and damage the seal of the tool.
In case of a one time occurence, the connector has to be pressed a second time.
6.

Technical Data

max. operation pressure:
Hydraulic oil:
Reservoir capacity:
Useable oil capacity:
Environmental temperature:
Control voltage:
Driving motor:
Weight of the unit:
Battery voltage:
Battery capacity:
Charging time:
Sound level:
Vibrations:
HE17600_C © 09/2016
700 bar
Rivolta S.B.H. 11
approx. 760 ml
approx. 740 ml
-12°C to +40°C
18 V DC
direct-current permanent fi eld
approx. 4,9 kg
18 V
4 Ah (RAL40/BL1840)
36 min. (RAL40/BL1840)
< 70 dB (A) in 1m distance
< 2,5 m/s²
Intended Use I.XI
