Select a valve adapter and an O-Ring with correct thickness to fit your inflatable product's air valve.
▪
You can use your original valve adapter if it provides better inflation result than using the ones provided
with the pump. To modify the valve connector won't affect your pump existing warranty coverage.
▪
Test Run is necessary before the first time use. You can stop the pump any time by pressing its power
button. Do NOT leave the pump running unattended even considering its auto stop feature!
▪
Do NOT let the pump running for more than 20 minutes continuously. Inflate one SUP / Paddle Boat at a
time. Extended usage beyond its recommended continuous running time can cause overheating and
damage the internal inflator.
▪
Using smaller valve fittings limits the airflow speed, so the pump will be easier to get overheated. User's
attention is very important for this type of application. The max 20 minutes continuous working time must
be reduced accordingly.
▪
Low quality instable power source will decrease the pump running performance. The needed time to
complete inflating a product will be increased. This can cause overheating issue and damage the pump's
inflator quickly. Do NOT operate the pump with any low capacity, low voltage, and low quality battery.
▪
If the air hose section near the pump port is getting warmer such as over 60ºC (92ºF), stop using the
pump immediately to let it cool down first.
▪
If the environment temperature is too high, the pump's maximum continuous working time shall be
reduced accordingly.
▪
Plug the pump power adapter into the car's 12V DC socket, or to a battery with a convertor.
▪

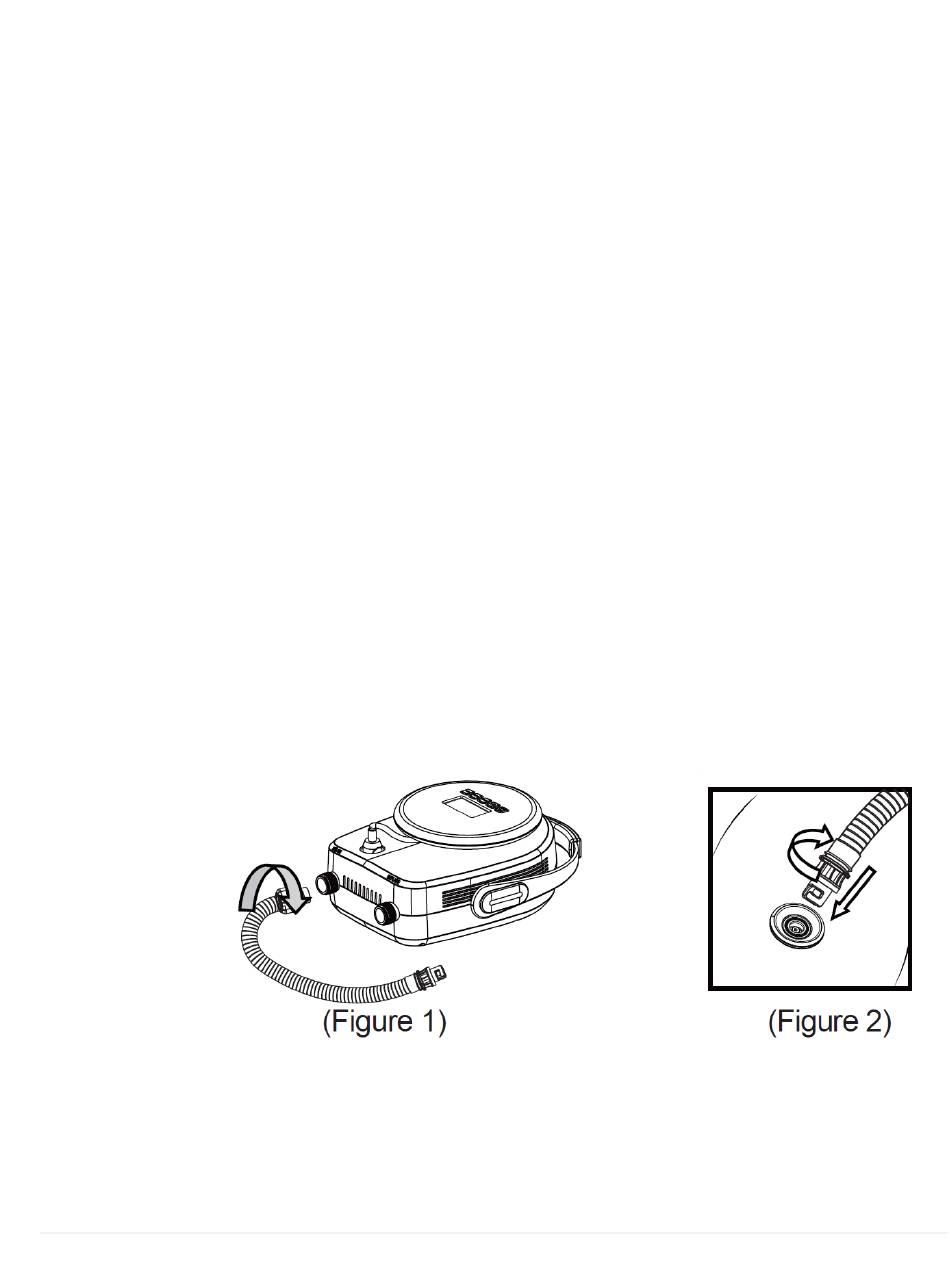

Connect the end with flexible conduit adaptor (1) of the air hose with the air pump inflation port (1), and
twist clockwise to tighten it (Figure 1).
▪
Connect the other end of the air hose with an air valve adapter. Insert it into the supported product's air
valve and twist clockwise to fix it (Figure 2).
▪
Press the air pressure unit toggle button [PSI/BAR] to select your preferred unit such PSI or BAR.
▪
Press the Increase Air Pressure button [+] or cycle as decrease Air Pressure button. Set the desired target
pressure value matching with your inflatable product's air pressure requirement from 0.5 PSI to 20 PSI
(1PSI=0.0689BAR).
▪
The pressure setting increasement is 0.5 PSI. Press the On/Off power switch button to start the pump.
▪
During the inflating process, you can press the Increase Air Pressure button [+] or Decrease Air Pressure
Button [-] to adjust the target air pressure value. Press the Air Pressure Unit toggle button [PSI/BAR] to
switch the air pressure unit. Pressing the On/Off power button can stop pumping manually.
7 | P a g e

FIRST TIME USE

INFLATION OPERATION
