Maintenance and repair
EN
The following tests and measures must be carried out during regular maintenance.
EN
Check
EN
the permissible ambient temperature
EN
EN
EN
the enclosure components for formation of
EN cracks and damage.
EN
EN
its intended use
EN
EN
EN

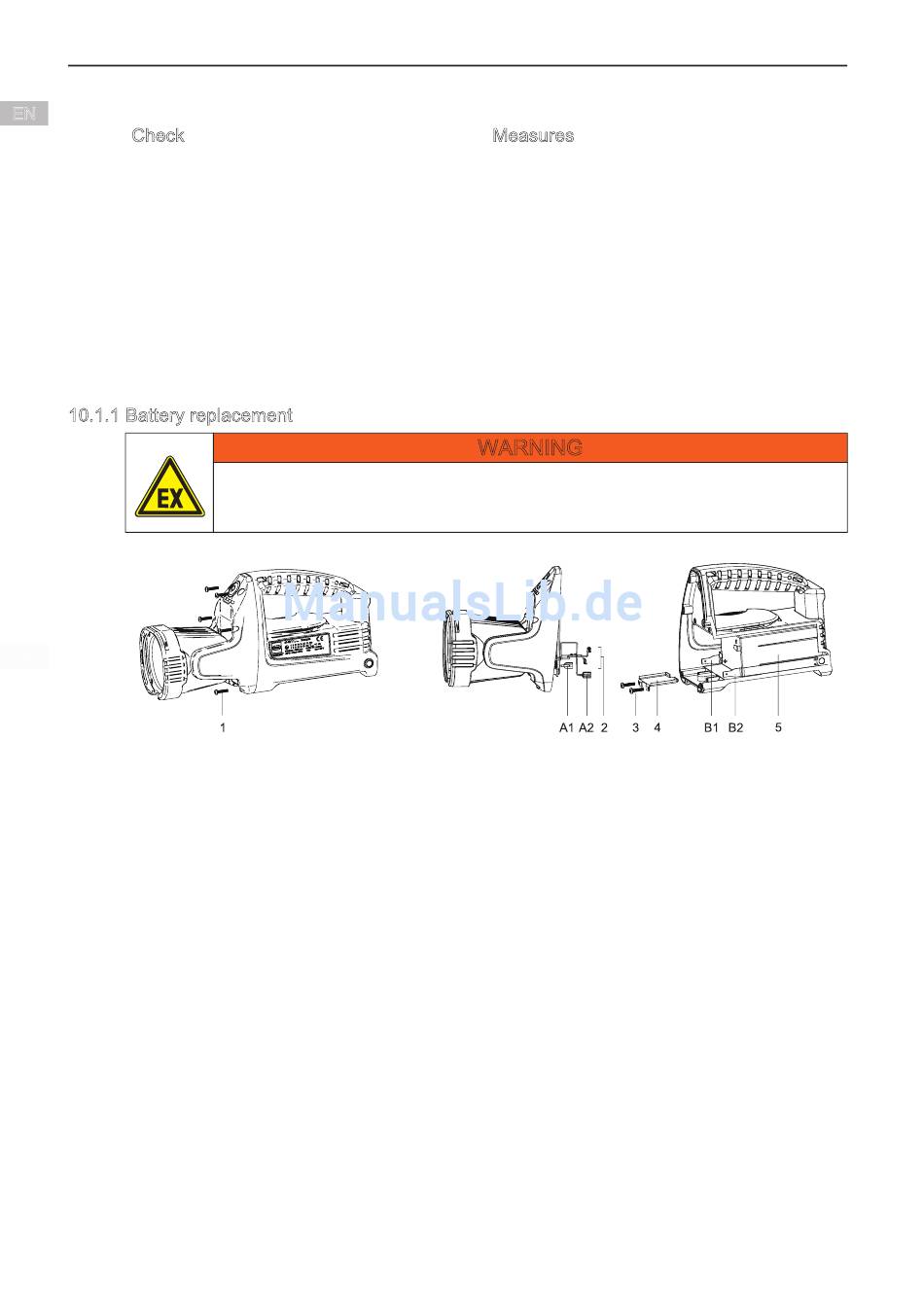

10.1.1 Battery replacement

EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
1 6 screws for head (Torx 10)
2 PCB connection line (+; -)
3 2 screws for retaining bracket (Torx 10) B1 Charging contact connection line
4 Battery retaining bracket
5 Battery
• Remove the screws (1) at the head.
• Remove lamp head from the enclosure.
• Pull the connection lines (A1, A2) off the charging contacts (B1, B2).
• Pull the connection lines (2) off the battery contacts.
• Remove the screws (3) from the retaining bracket.
• Remove the battery retaining bracket (4).
• Remove battery (5) from the enclosure.
• Insert new battery into enclosure according to marking.
• Insert battery retaining bracket (4).
• Screw down the battery retaining bracket with the screws (3) -
tightening torque 0.5 Nm.
42
Portable Lamp
SHL 200-Ex
Danger when used in hazardous areas!
The explosion protection is impaired!
• Open the portable lamp in safe areas only.
Measures
If exceeding the permissible ambient
temperature or falling below the device
must be taken out of operation.
Replace the exchangeable enclosure
components. If the enclosure components
are non-exchangeable, the device must be
taken out of operation.
If the device is not used according to its
intended use, it must be taken out of
operation.
WARNING
-
+
A1 PCB connection line
A2 PCB connection line
B2 Charging contact connection line
+
15005E00
