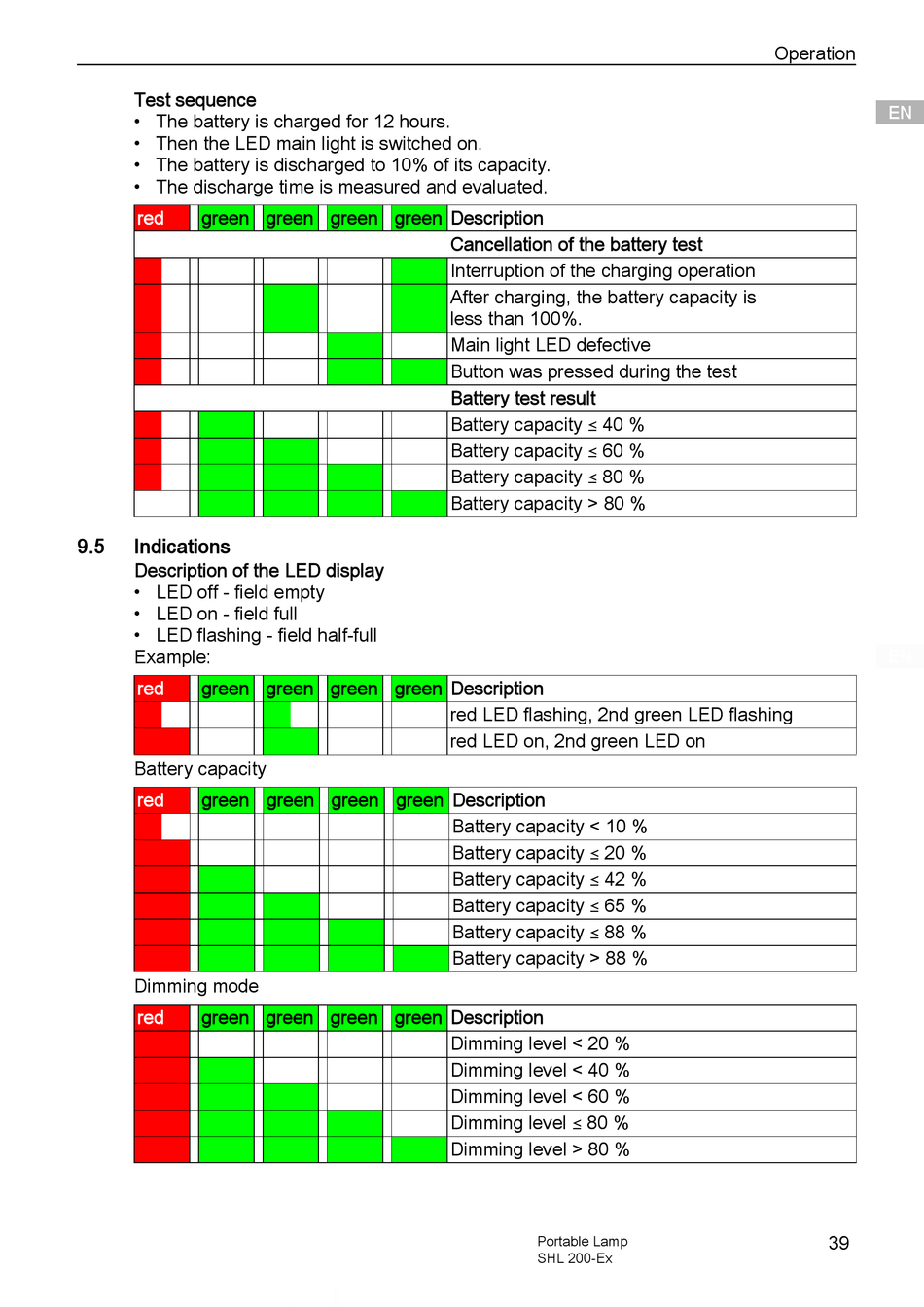

Test sequence
• The battery is charged for 12 hours.
• Then the LED main light is switched on.
• The battery is discharged to 10% of its capacity.
• The discharge time is measured and evaluated.
red green green green green Description
9.5

Indications

Description of the LED display
• LED off - field empty
• LED on - field full
• LED flashing - field half-full
Example:
red green green green green Description
Battery capacity
red green green green green Description
Dimming mode
red green green green green Description
Cancellation of the battery test
Interruption of the charging operation
After charging, the battery capacity is
less than 100%.
Main light LED defective
Button was pressed during the test
Battery test result
Battery capacity ( 40 %
Battery capacity ( 60 %
Battery capacity ( 80 %
Battery capacity > 80 %
red LED flashing, 2nd green LED flashing
red LED on, 2nd green LED on
Battery capacity < 10 %
Battery capacity ( 20 %
Battery capacity ( 42 %
Battery capacity ( 65 %
Battery capacity ( 88 %
Battery capacity > 88 %
Dimming level < 20 %
Dimming level < 40 %
Dimming level < 60 %
Dimming level ( 80 %
Dimming level > 80 %
Portable Lamp
SHL 200-Ex
Operation
