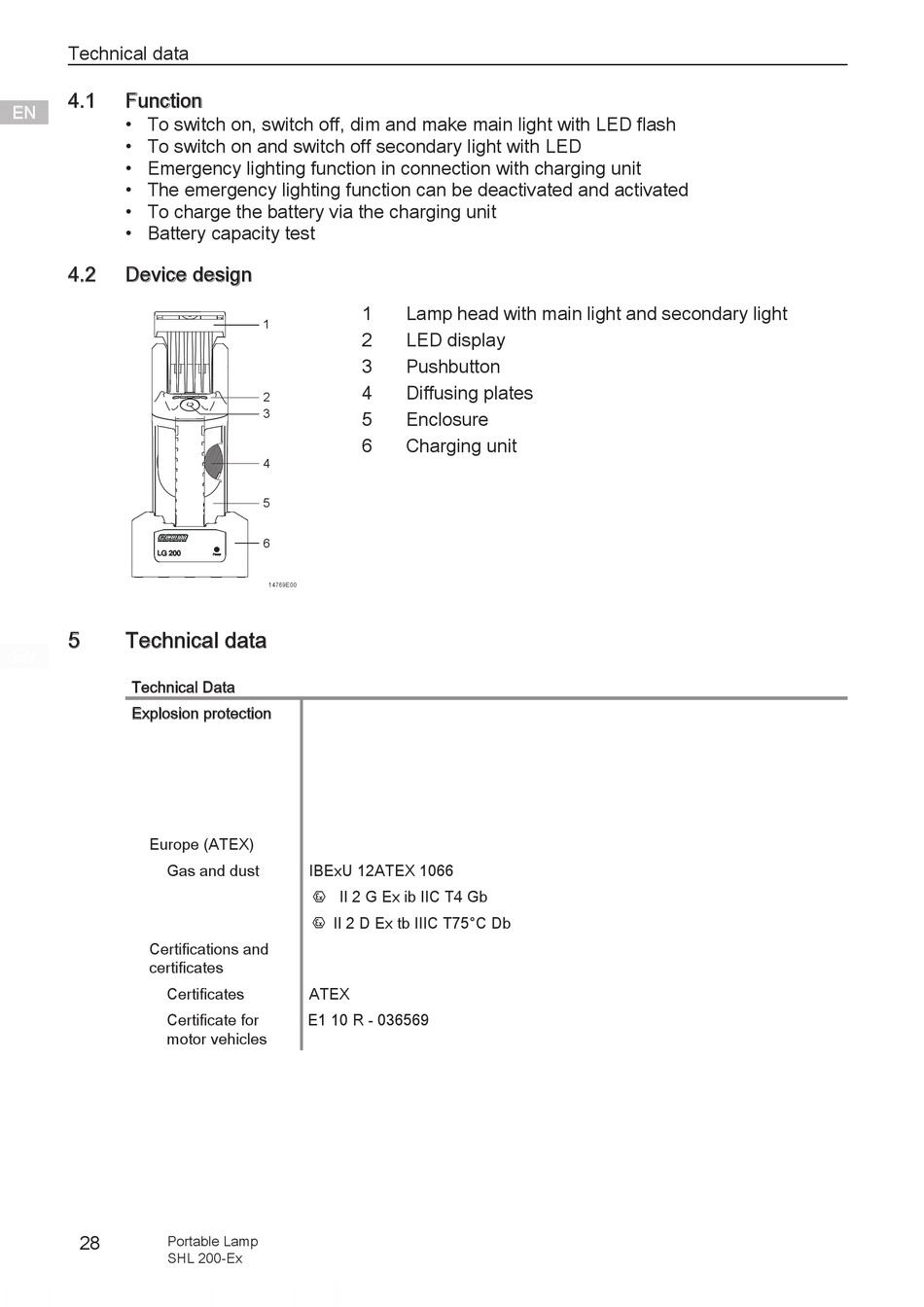

Function; Device Design; Technical Data - Ecom SHL 200-Ex Bedienungsanleitung

Technical data

EN
4.1

Function

EN
• To switch on, switch off, dim and make main light with LED flash
EN
• To switch on and switch off secondary light with LED
• Emergency lighting function in connection with charging unit
EN
• The emergency lighting function can be deactivated and activated
EN
• To charge the battery via the charging unit
EN
• Battery capacity test
EN
4.2

Device design

EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
5 Technical data
EN
EN
Technical Data
EN
Explosion protection
EN
EN
Europe (ATEX)
Gas and dust
Certifications and
certificates
Certificates
Certificate for
motor vehicles
28
Portable Lamp
SHL 200-Ex
1 Lamp head with main light and secondary light
1
2 LED display
3 Pushbutton
4 Diffusing plates
2
3 5 Enclosure
6 Charging unit
4
5
6
14769E00
IBExU 12ATEX 1066
† II 2 G Ex ib IIC T4 Gb
II 2 D Ex tb IIIC T75°C Db
†
ATEX
E1 10 R - 036569
