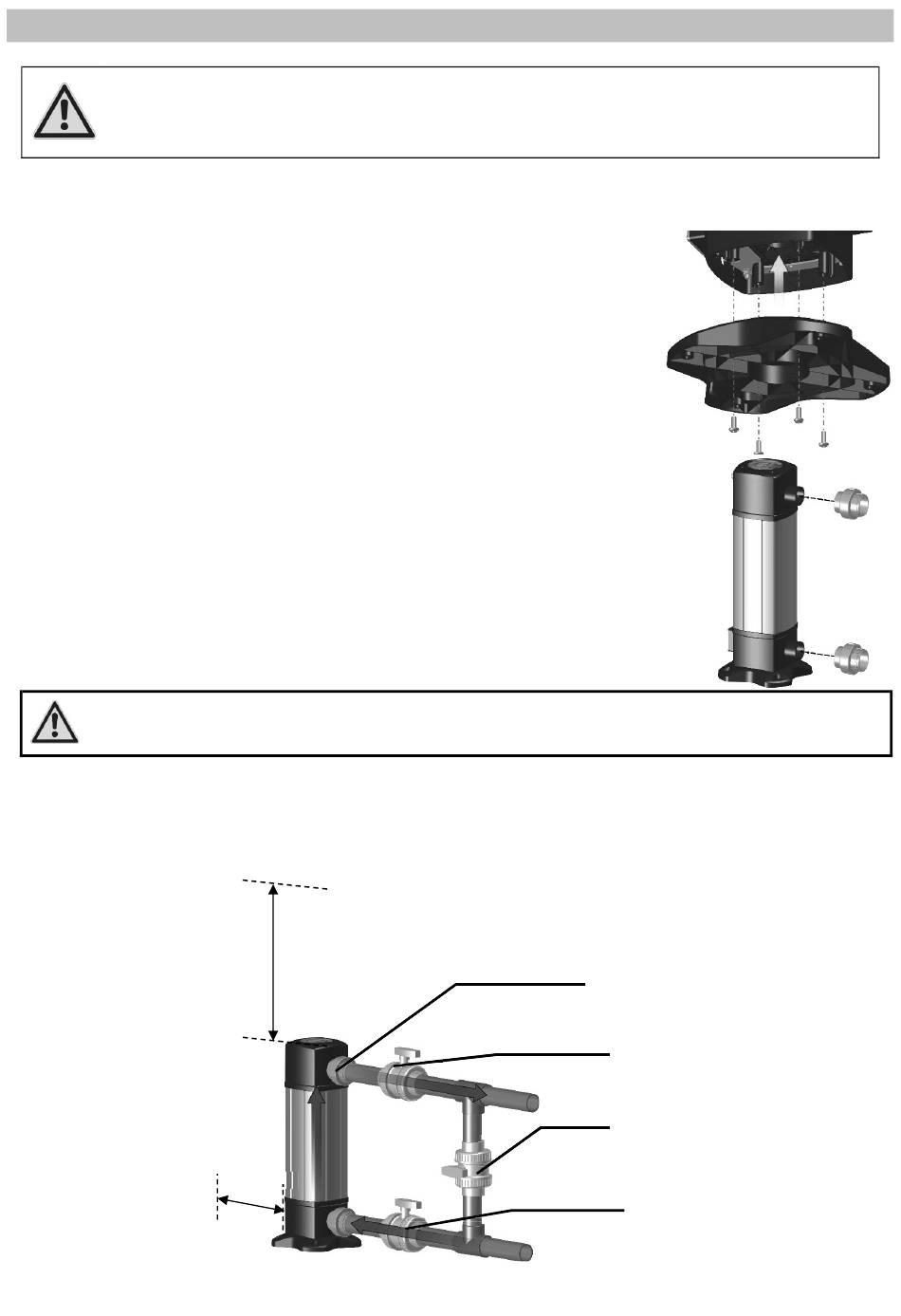

5. UV REACTOR

It is imperative that you read all the instructions in this manual before

5.1. Pre-assembly

Assembling the base

Fit the base to the lower part of the reactor
-
Using a 5 mm Allen key, fit the 4 screws as shown in the figure opposite
-

Assembling the fittings

Using PVC glue, fit the fittings that came with the unit to the reactor inlet and
-
outlet
If necessary, fit and glue the reducers corresponding to the diameter of the pipe
-
onto each of the fittings.
Under no circumstances should the reactor body be dismantled. The nuts at the four corners of the reactor must
never be loosened as the reactor may start to leak. Any tampering with these nuts could result in the warranty
being voided.

5.2. Installation

For ease of maintenance, we recommend using a bypass.
-
The reactor must be installed in a vertical position (water inlet at the bottom)
-
Before starting the installation, please wear protective gloves.
850 mm
250 mm
operating the reactor.
Union fitting 75
Downstream
valve
Bypass valve
Upstream valve
7
