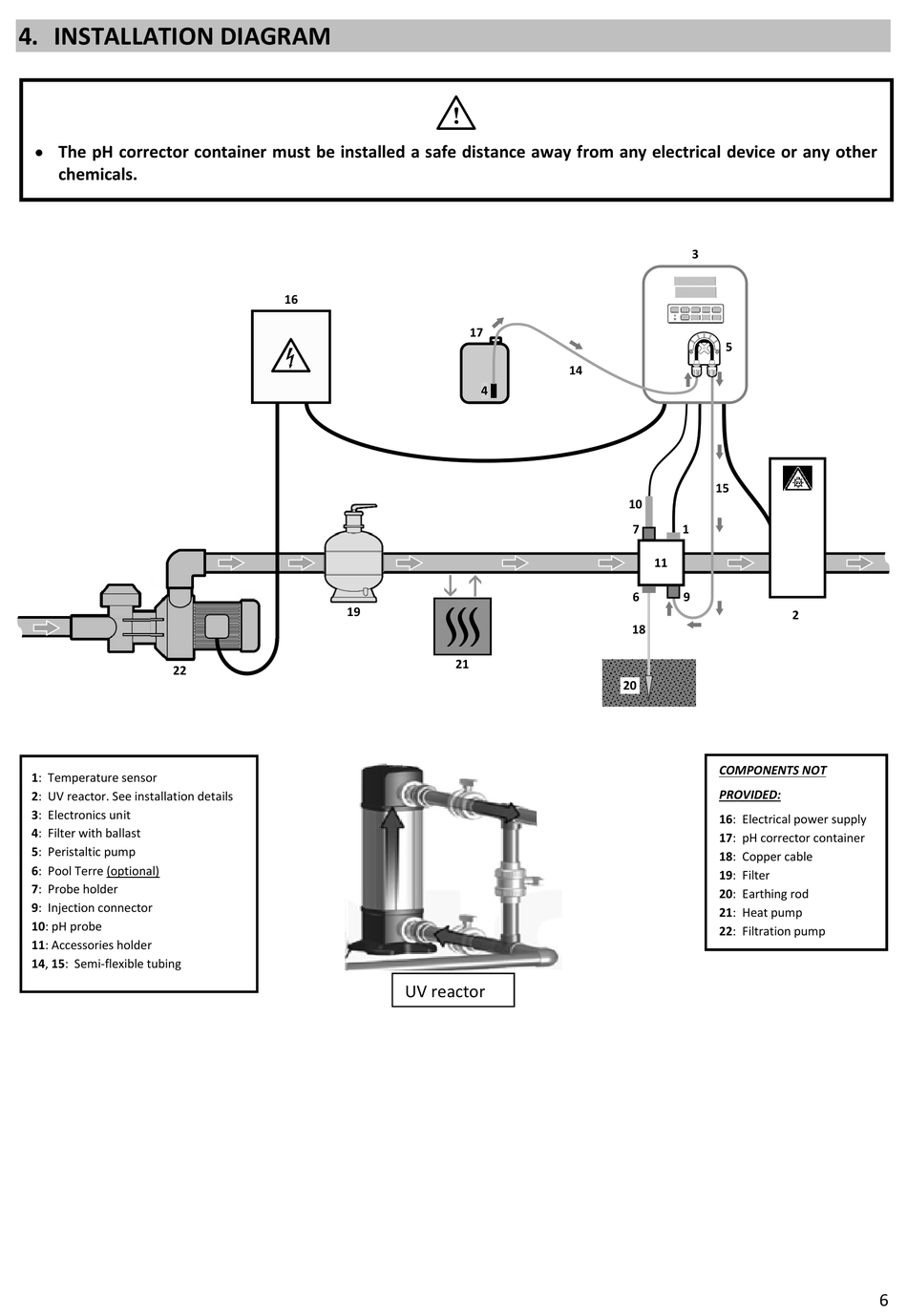

4. INSTALLATION DIAGRAM

The pH corrector container must be installed a safe distance away from any electrical device or any other
chemicals.
22
1: Temperature sensor
2: UV reactor. See installation details
3: Electronics unit
4: Filter with ballast
5: Peristaltic pump
6: Pool Terre (optional)
7: Probe holder
9: Injection connector
10: pH probe
11: Accessories holder
14, 15: Semi-flexible tubing
I
16
H
19
UV reactor
17
14
4
21
20
3
5
15
10
7 1
4
11
6 9
2
18
COMPONENTS NOT
PROVIDED:
16: Electrical power supply
17: pH corrector container
18: Copper cable
19: Filter
20: Earthing rod
21: Heat pump
22: Filtration pump
6
