Versions

The Connex CMx2 media converter is available in the following versions:
18270049 CMx2-HIN12-EB2M-RX Connex HDMI Extender 4K CMx2-D
18270050 CMx2-HIN12-EB2M-TX Connex HDMI Extender 4K CMx2-D
18270051 CMx2-HIN12-NO2M-RX Connex HDMI Extender 4K CMx2-D
18270052 CMx2-HIN12-NO2M-TX Connex HDMI Extender 4K CMx2-D
18270053 CMx2-DON12-EB2M-RX Connex DisplayPort Extender 4K CMx2-D
18270054 CMx2-DON12-EB2M-TX Connex DisplayPort Extender 4K CMx2-D
18270055 CMx2-DON12-NO2M-RX Connex DisplayPort Extender 4K CMx2-D
18270056 CMx2-DON12-NO2M-TX Connex DisplayPort Extender 4K CMx2-D
EBC1502= Fiberfox EBC1502 expanded beam connector / NO2 = Neutrik® OpticalCon® DUO

Product Description

The CMx2 media converter has either an HDMI 2.0 or
DisplayPort 1.2 interface and offers the user one of the two
most widely used formats for the transmission of digital video
and audio signals.
In addition, all CMx2 media converters include a 3-port
gigabit low latency switch with 2x Gigabit RJ45 ports and 1x
fiber port which uses state-of-the-art CWDM technology to
send both Ethernet data packets over one fiber optic cable.
Instruction Manual CMx2 Media Converter
CMx2-DisplayPort
CMx2-HDMI
Media Converter
1x HDMI 2.0 4K/60 OUT, 2xGigabit, EBC1502 50/125
1x HDMI 2.0 4K/60 IN, 2xGigabit, EBC1502 50/125
1x HDMI 2.0 4K/60 OUT, 2xGigabit, NO2 50/125
1x HDMI 2.0 4K/60 IN, 2xGigabit, NO2 50/125
1x DP1.2 4K/60 OUT, 2xGigabit, EBC1502 50/125
1x DP1.2 4K/60 IN, 2xGigabit, EBC1502 50/125
1x DP1.2 4K/60 OUT, 2xGigabit, NO2 50/125
1x DP1.2 4K/60 IN, 2xGigabit, NO2 50/125

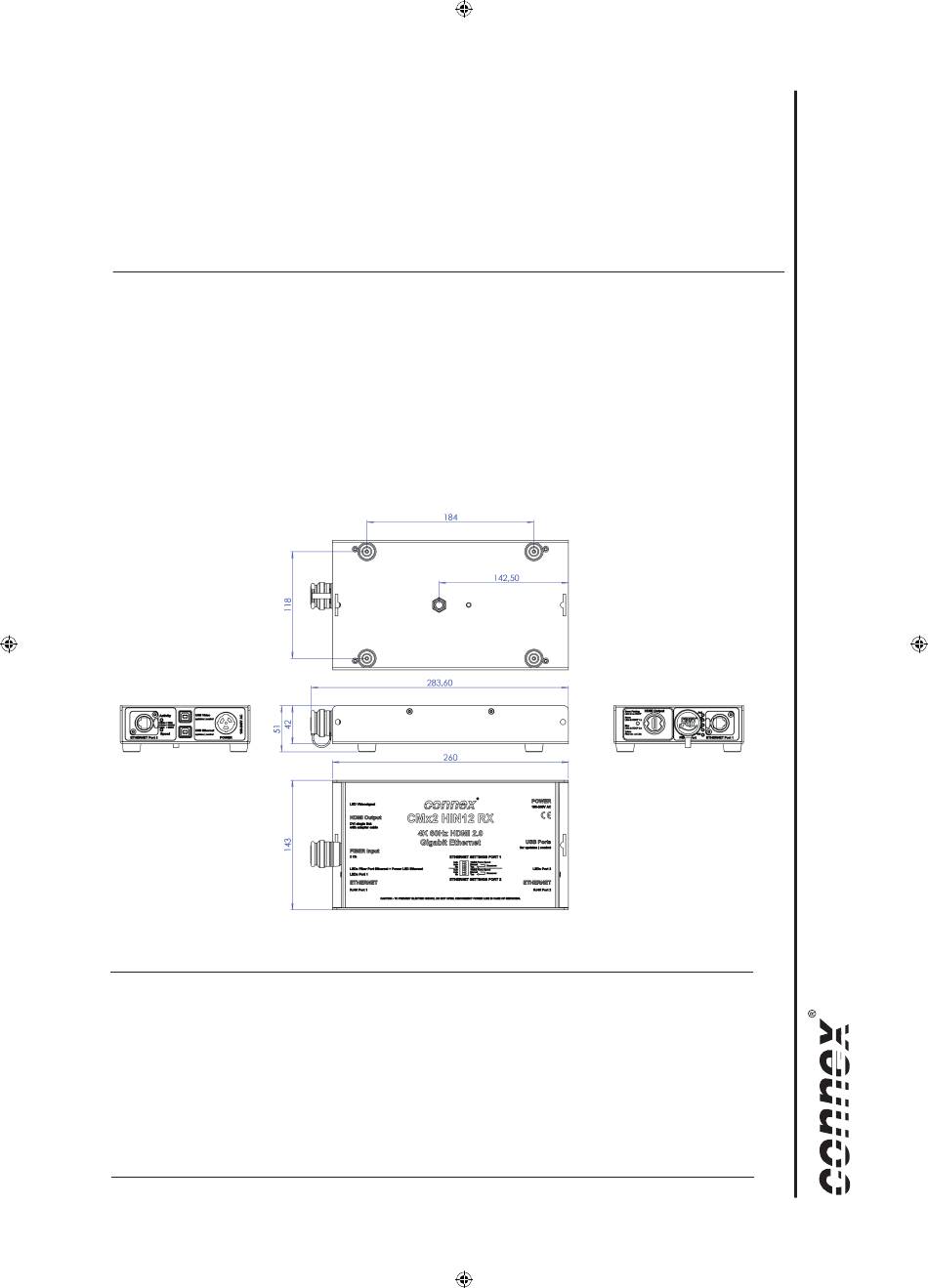

The CMx2 media converters come as a floor box with rubber
feet and M10 installation thread for truss mounting or as a
19"plug-in unit (only in combination with 19" frame
#18270047 for up to 3x CMx2 media converter).
This flexibility makes it possible to place the media converters
exactly where they are needed, thus helping to avoid long
cable runs.
