Neve
09146-09147
09147
Regolatore 120 V~ 50-60 Hz per lampade ad incan-
descenza 30-500 W, trasformatori ferromagnetici
30-300 VA, comando e regolazione con potenziometro
rotativo.
09146
Regolatore 230 V~ 50-60 Hz per lampade ad incan-
descenza 60-900 W, trasformatori ferromagnetici
60-300 VA, comando e regolazione con potenziometro
rotativo.
CARATTERISTICHE.
• Apparecchi con dispositivo a stato solido (tecnologia
TRIAC).
• Va utilizzato in luoghi asciutti e non polverosi ad una
temperatura compresa tra 0 °C e +35 °C.

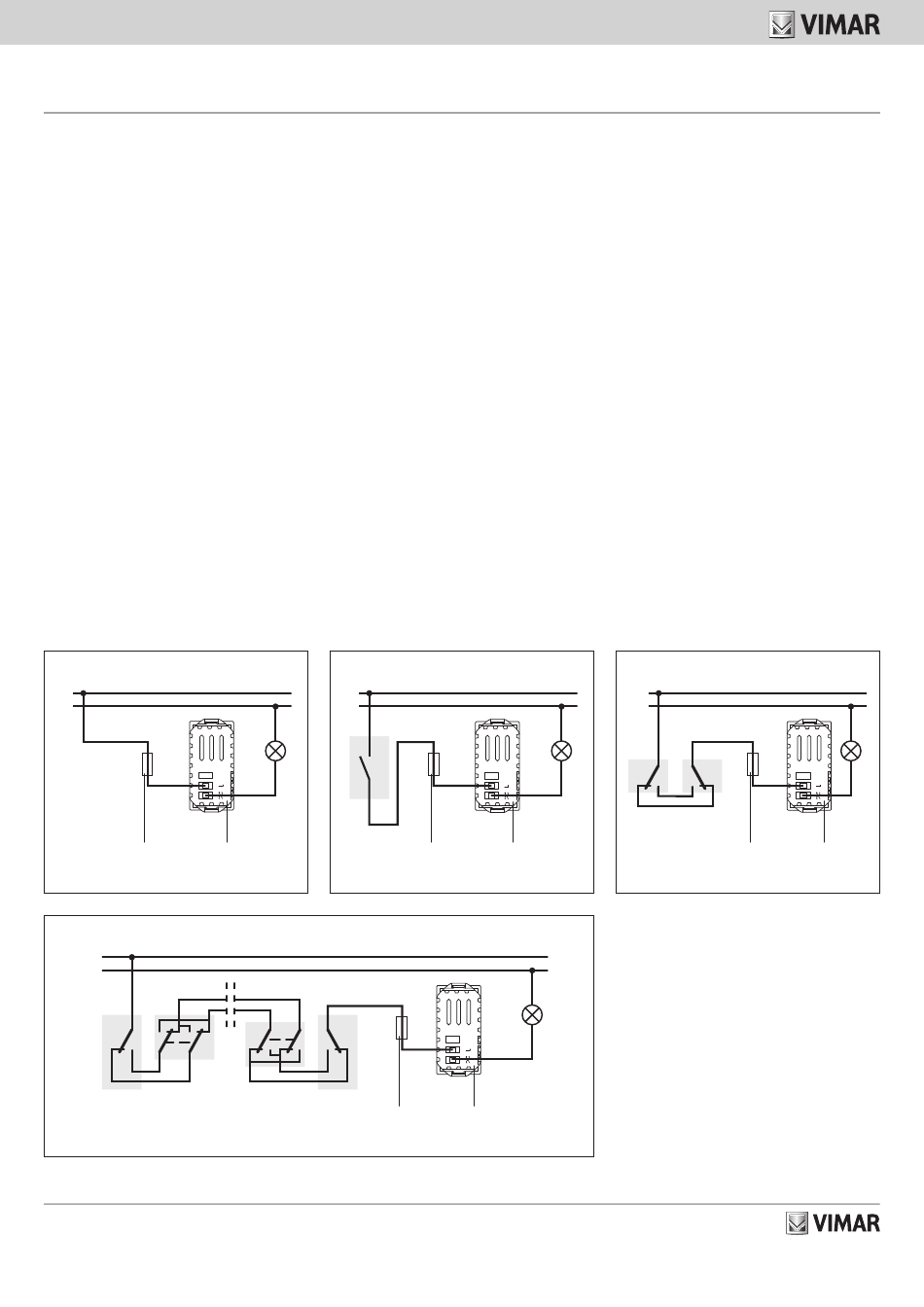

COLLEGAMENTI.
Il collegamento deve avvenire in associazione ad un
fusibile rapido ad alto potere di interruzione tipo F5AH
250 V~ come risulta dagli schemi sotto riportati.
• in luogo di un interruttore (figura 1)
• in aggiunta ad un interruttore (figura 2)
• in un circuito che realizza due o più punti di manovra
(deviatori - figura 3, invertitori - figura 4).
1
L
N
fusibile
regolatore
fuse
dimmer
fusible
variateur
4
L
N
907.9146A0 04 1809
09147
Dimmer 120 V~ 50-60 Hz for incandescent lamps
30-500 W, ferromagnetic transformers 30-300 VA,
control and adjustment by rotary potentiometer.
09146
Dimmer 230 V~ 50-60 Hz for incandescent lamps
60-900 W, ferromagnetic transformers 60-300 VA,
control and adjustment by rotary potentiometer.
CHARACTERISTICS.
• Electronic switches with solid state device (TRIAC tech-
nology).
• It should be used in dry, dust-free places at a tem-
perature between 0 °C and +35 °C.
CONNECTIONS.
The connection should be made together with a quick-
acting fuse with high breaking capacity type F5AH
250 V~ as shown in the following diagrams.
• in place of a switch (figure 1)
• in addition to a switch (figure 2)
• in a circuit making two or more points of opera-
tion (2-way switches - figure 3, reversing switches
- figure 4).
2
L
N
fusibile
regolatore
fuse
dimmer
fusible
variateur
fusibile
regolatore
fuse
dimmer
fusible
variateur
09147
Variateur 120 V~ 50-60 Hz pour lampes à incandes-
cence 30-500 W, commande et réglage par potentio-
mètre rotatif.
09146
Variateur 230 V~ 50-60 Hz pour lampes à incandes-
cence 60-900 W, transformateurs ferromagnétiques
60-300 VA, commande et réglage par potentiomètre
rotatif.
CARACTÉRISTIQUES.
• Appareils avec dispositif à état solide (technologie
TRIAC).
• Doit être utilisé dans un lieu sec non poussiéreux à
une température comprise entre 0 °C et +35 °C.
RACCORDEMENTS.
Le raccordement doit se faire avec fusible rapide à haut
pouvoir de coupure type F5AH 250 V~ comme indiqué
par les schémas ci-dessous.
- au lieu d'un interrupteur (figure 1)
- en sus d'un interrupteur (figure 2)
- sur un circuit qui réalise deux ou plusieurs points de
manœuvre (va-et-vients - figure 3, inverseurs - figure
4).
3
L
N
fusibile
fuse
fusible
36063 Marostica VI - Italy
regolatore
dimmer
variateur
Viale Vicenza, 14
www.vimar.com
