Commissioning

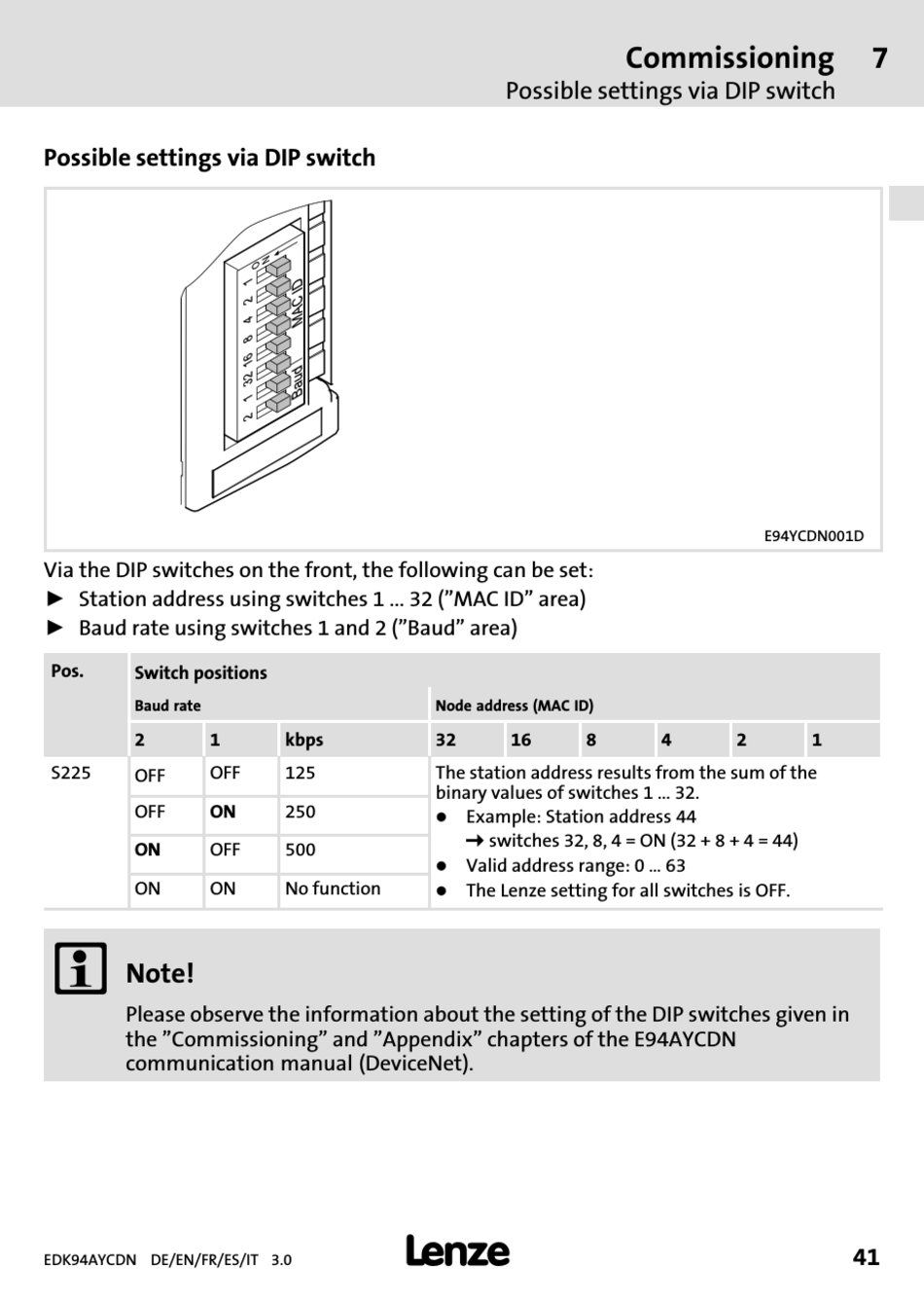

Possible settings via DIP switch

Via the DIP switches on the front, the following can be set:
ƒ Station address using switches 1 ... 32 ("MAC ID" area)
ƒ Baud rate using switches 1 and 2 ("Baud" area)
Pos.
Switch positions
Baud rate
2 1
S225 OFF
OFF
OFF ON
ON OFF
ON ON
)
Note!
Please observe the information about the setting of the DIP switches given in
the "Commissioning" and "Appendix" chapters of the E94AYCDN
communication manual (DeviceNet).
EDK94AYCDN DE/EN/FR/ES/IT 3.0
Node address (MAC ID)
kbps 32
125 The station address results from the sum of the
binary values of switches 1 ... 32.
250
l
500
l
No function
l
l
Commissioning
Possible settings via DIP switch
16 8
Example: Station address 44
W
switches 32, 8, 4 = ON (32 + 8 + 4 = 44)
Valid address range: 0 … 63
The Lenze setting for all switches is OFF.
E94YCDN001D
4 2 1
