CLIMATE SYSTEMS AND ZONES

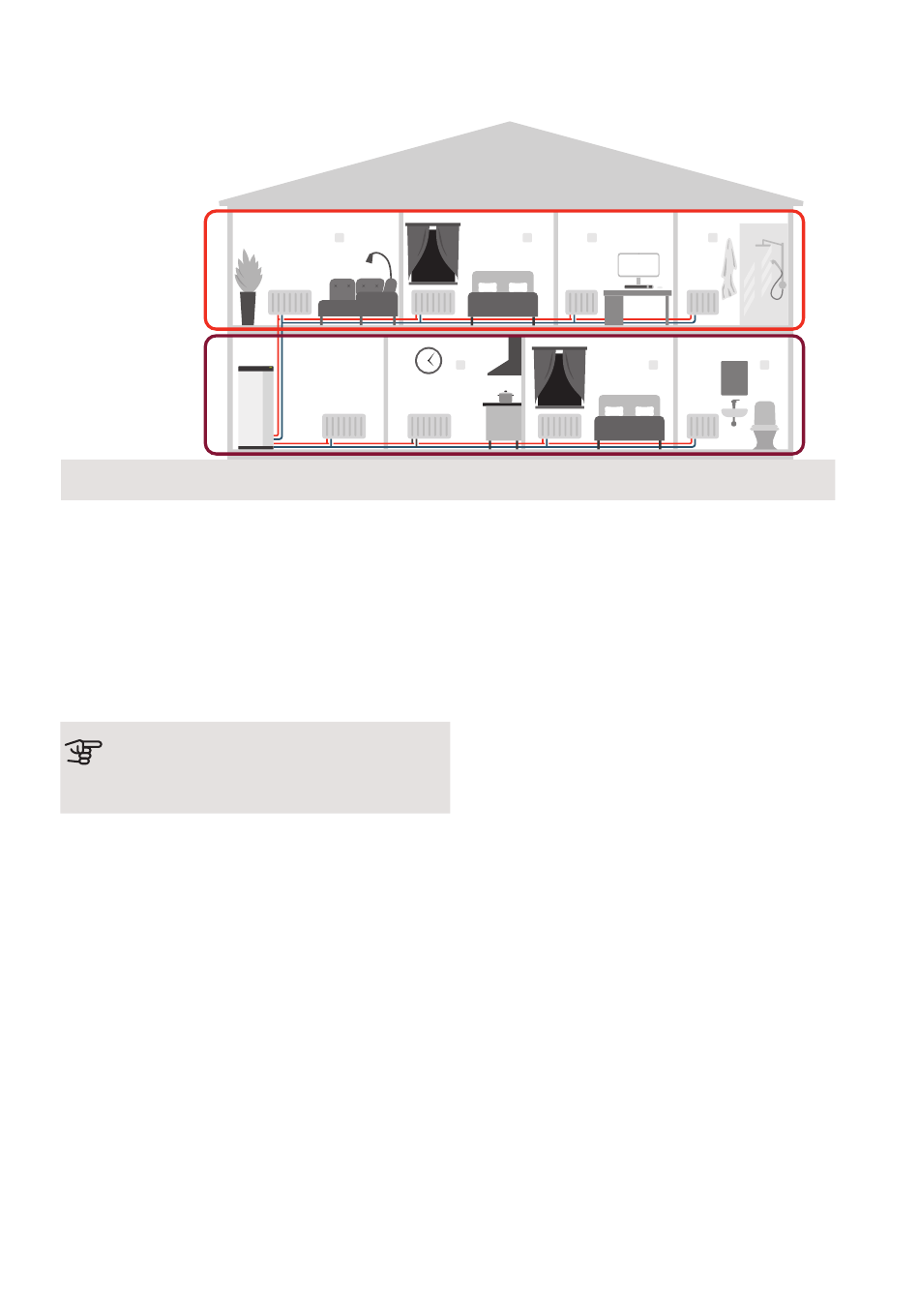

OUTLINE DIAGRAM WITH TWO CLIMATE SYSTEMS AND SEVEN ZONES
Climate system 2:
Zones 4-7
Climate system 1:
Zones 1-3
You can have up to eight climate systems. One climate
system can contain one or more zones. One zone can
be a specific room. It is also possible to divide a large
room into several zones, with the help of radiator ther-
mostats. You can name your zones yourself.
You can place one or more RMU S40 in each zone. Each
zone can also contain one or more other accessories,
both wired and wireless.
Caution
Climate system 2 – 8 can never have a higher
system temperature than climate system 1.
