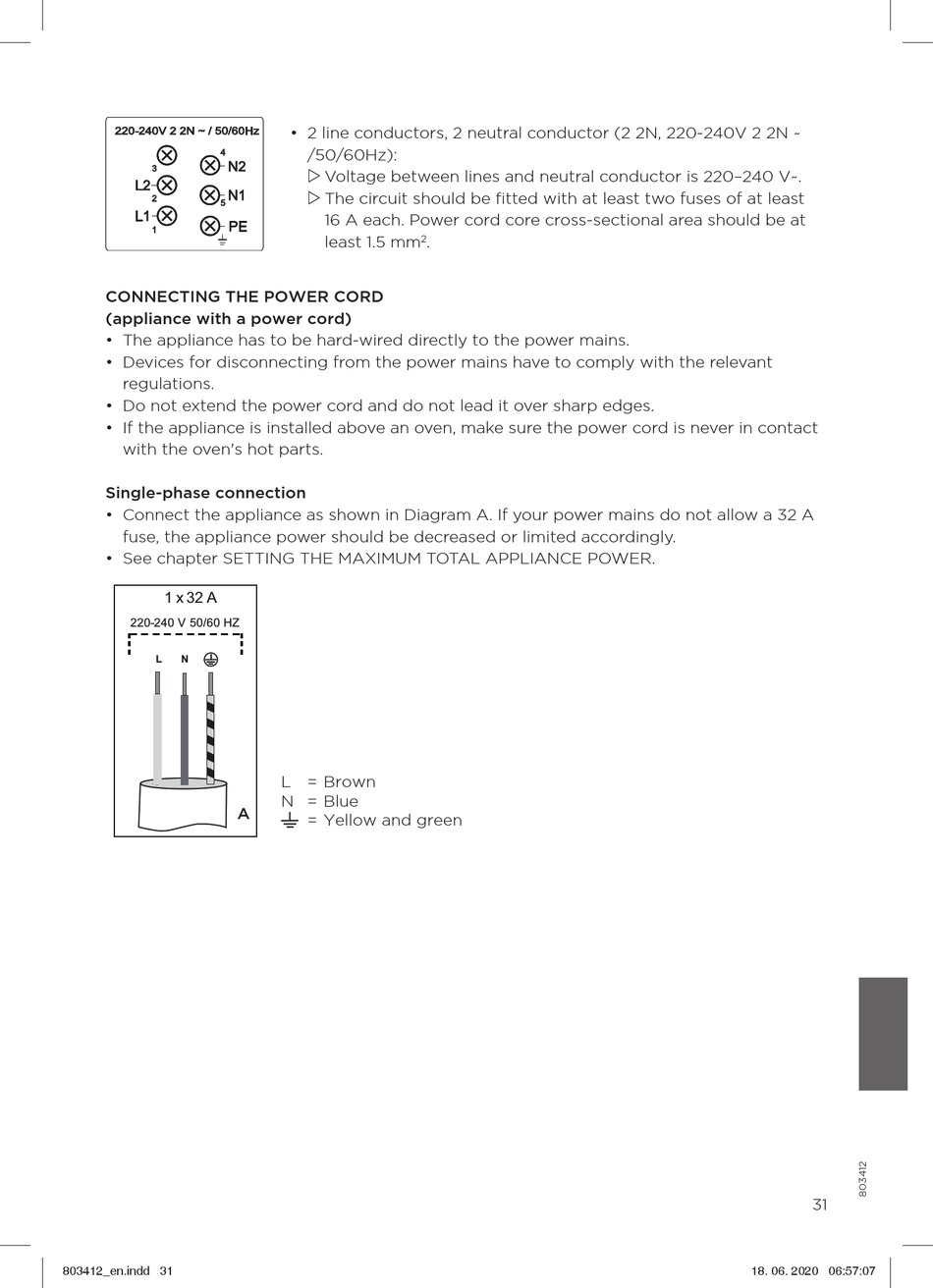

CONNECTING THE POWER CORD

(appliance with a power cord)
• The appliance has to be hard-wired directly to the power mains.
• Devices for disconnecting from the power mains have to comply with the relevant
regulations.
• Do not extend the power cord and do not lead it over sharp edges.
• If the appliance is installed above an oven, make sure the power cord is never in contact
with the oven's hot parts.
Single-phase connection
• Connect the appliance as shown in Diagram A. If your power mains do not allow a 32 A
fuse, the appliance power should be decreased or limited accordingly.
• See chapter SETTING THE MAXIMUM TOTAL APPLIANCE POWER.
1 x 32 A
220-240 V 50/60 HZ
L N
A
803412_en.indd 31 803412_en.indd 31
• 2 line conductors, 2 neutral conductor (2 2N, 220-240V 2 2N ~
/50/60Hz):
 Voltage between lines and neutral conductor is 220–240 V~.
 The circuit should be fi tted with at least two fuses of at least
16 A each. Power cord core cross-sectional area should be at
least 1.5 mm 2 .
L = Brown
N = Blue
= Yellow and green
31
