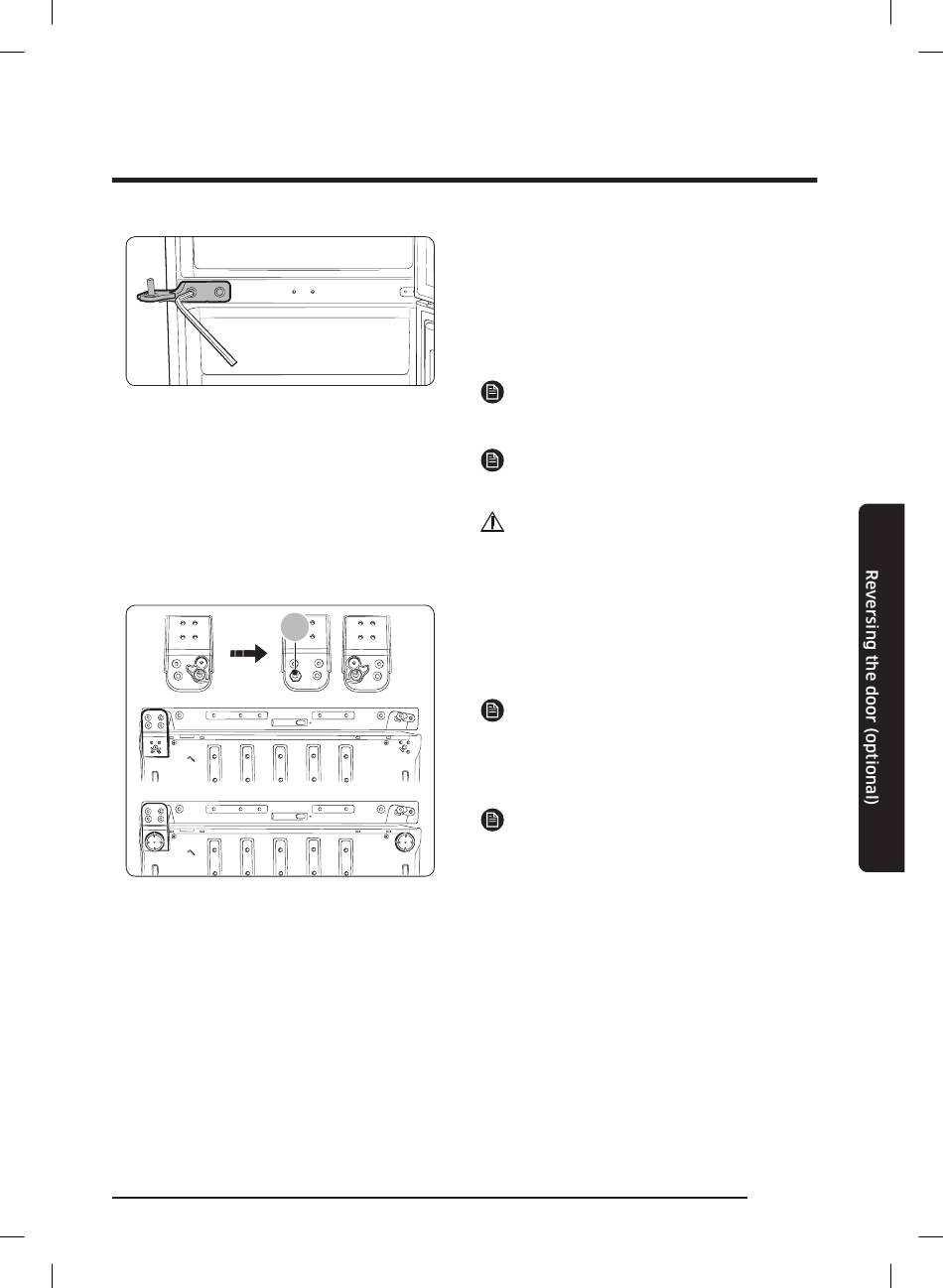

10. Assemble the Middle hinge by the
5 mm Allen wrench. First of all,
assemble the Freezer door and Hinge
Mid. And then assemble Hinge Low and
Fridge Door with Assy Hinge Up.
Assembling procedure of the Door
• Hinge Mid > Freezer Door > Hinge
Low > Fridge Door with Assy Hinge
Up
• Make sure that the screws are
screwed tight.
CAUTION
Be careful not to injure yourself during
operation.
11. Switch the position of Bottom hinge
and Leg (Right > Left).
Assemble the Hinge Low after putting
the Freezer Door in the middle hinge.
• Disassemble the Guide auto close
and the Shaft-hinge ( 1 ).
• Assemble the Shaft-hinge and the
the Guide auto close like this Picture.
• Make sure that the screws are
screwed tight.
