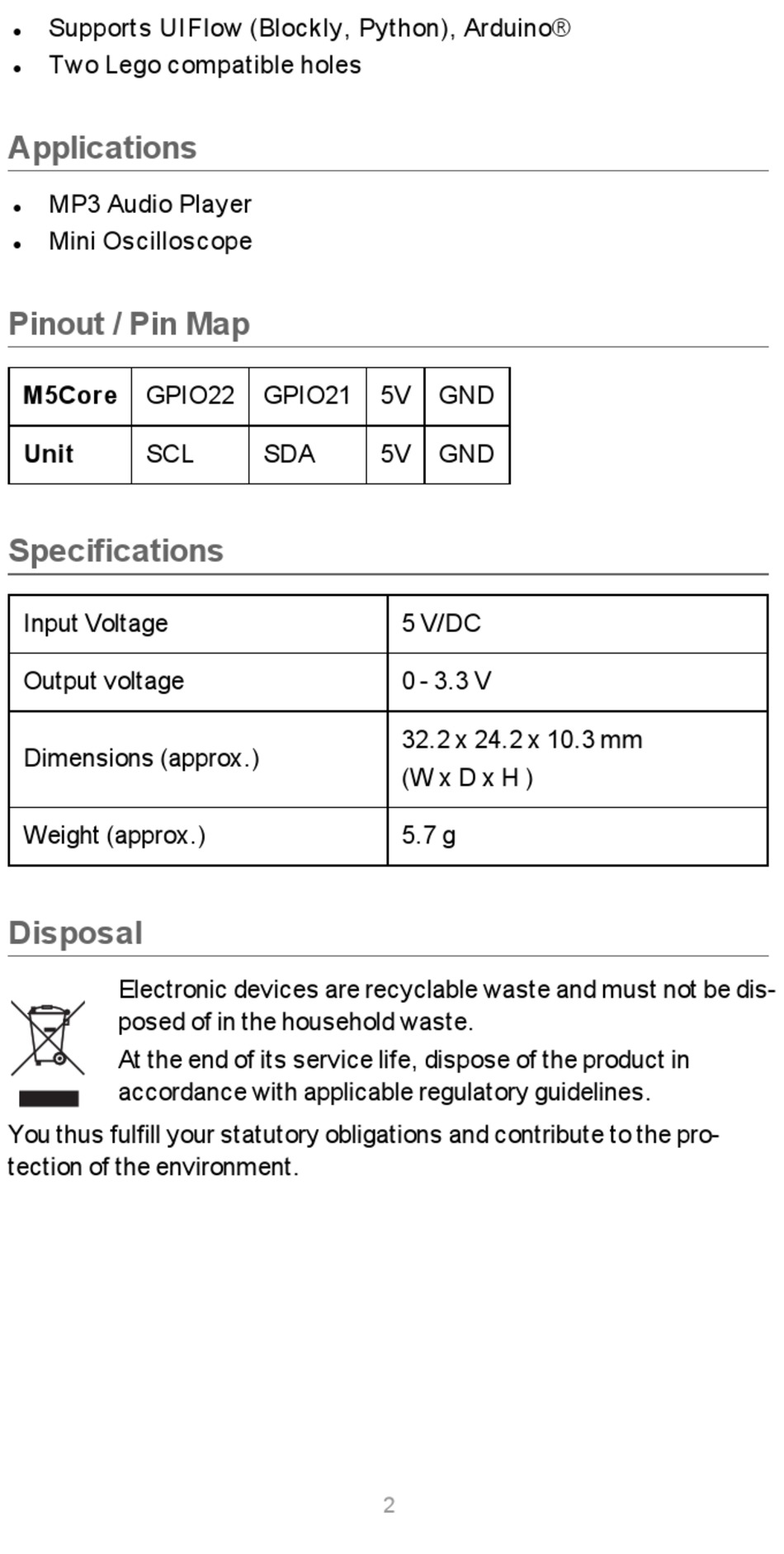

Specifications - Maker Factory M5Stack DAC Kurzanleitung

Supports UIFlow (Blockly, Python), Arduino®
l
Two Lego compatible holes
l
Applications
MP3 Audio Player
l
Mini Oscilloscope
l
Pinout / Pin Map
M5Core GPIO22
Unit SCL

Specifications

Input Voltage
Output voltage
Dimensions (approx.)
Weight (approx.)
Disposal
Electronic devices are recyclable waste and must not be dis-
posed of in the household waste.
At the end of its service life, dispose of the product in
accordance with applicable regulatory guidelines.
You thus fulfill your statutory obligations and contribute to the pro-
tection of the environment.
GPIO21 5V
SDA 5V
5 V/DC
0 - 3.3 V
32.2 x 24.2 x 10.3 mm
(W x D x H )
5.7 g
2
GND
GND
