Helios ultraSilence MiniVent M1/150 Montage- Und Betriebsvorschrift Seite 25

Installation and Operation Instructions
MiniVent M1/150 (Standard model)

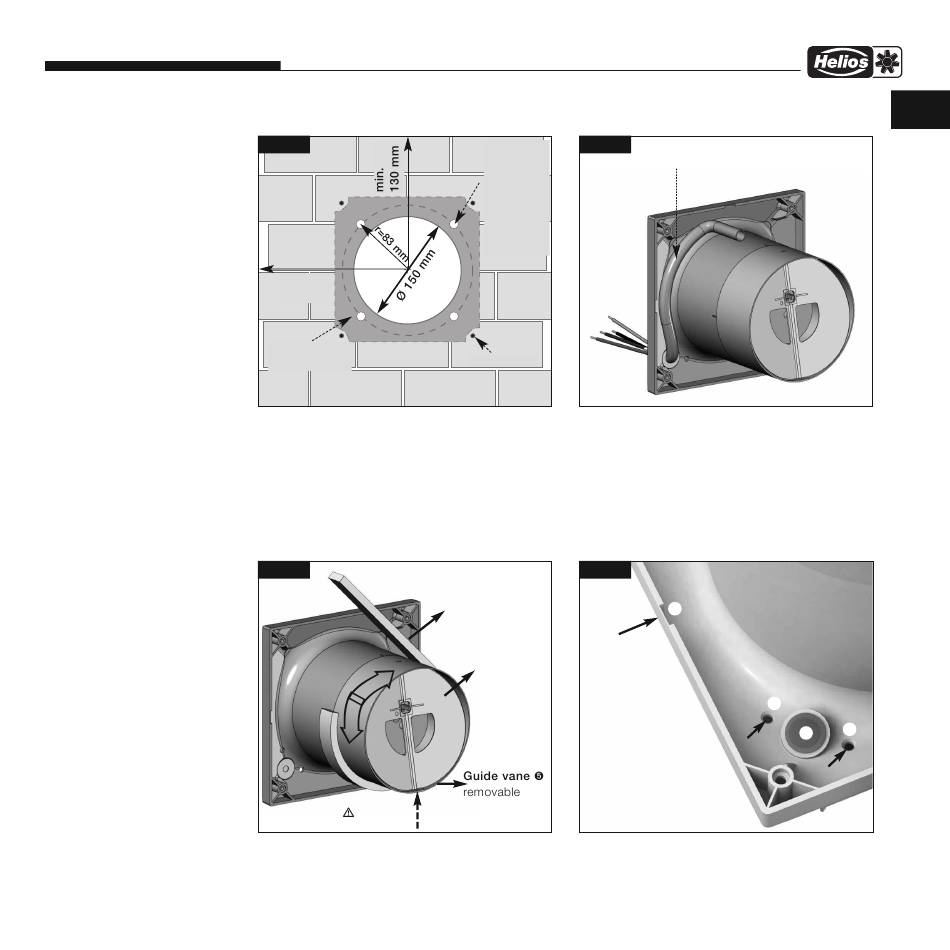

fig.5
min.
130 mm
Possible ca-
ble exit area
2. Drill holes
Set casing against the wall, mark the holes and drill. Fasten with at least 2 screws and plugs.
3. Back draught shutter and guide vane
- The back draught shutter › (scope of delivery) can be installed behind the guide vane if required (fig.7).
- When installing the device, the guide vane š must be mounted vertically (fig.7).
Snaps into place every 90° rotation.
- Affix the rubber foam (scope of delivery) before final assembly (fig.7)
fig.7
top
š
bottom
vertical for wall installation
fig.6
Recommen-
ded
cable
exit optional
0...-360°,
ideally
in each
case 45°
Drill holes
fig.8
Affix the rubber
foam
ΠBreak out entry
Back
knockout for cable for
draught
wall mounting
shutter ›
removable
 Condensate drain
holes for ceiling sus-
pension
Ž Cable grommet
7
Cable runs under the casing.
Œ

Ž
UK

