Tools Required - Hella Rallye 3000 compact Montageanleitung

12
English
GB

Tools required:

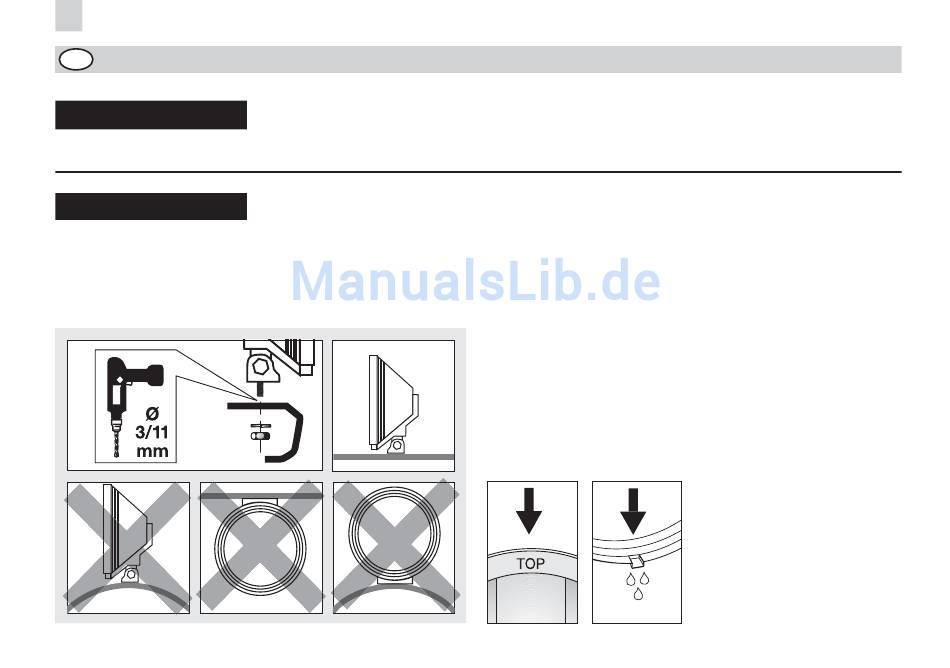

Fitting, page 2/3:
Headlamps must not vibrate
or jut above the bonnet and
must be attached
symmetrically.
• Metre rule - universal pliers
• Open-ended or ring
spanner size 14, 17
Choose a straight surface
for the fitting position and
mark the attachment points.
Pilot-drill with the 3 mm bit
and then drill through using
the 11 mm bit. Seal the
• Drill with bits
Ø 3, 5, 11, 12 mm
• Cross-slot screwdriver
drilled metal parts with
corrosion protection agent.
Pre-fit the bracket. Open the
housing and insert the bulb.
Do not touch the bulb with
your bare fingers! Use a
tissue or similar.
Put the housing together.
Screw the bracket and
housing together and route
the cables carefully.
Screw the headlamps to the
vehicle (using a two-point
bracket if necessary).
Align the headlamps and
tighten all screws.
To guarantee an optimum
beam pattern, make sure
that the "TOP" marking
on the headlamp insert
is always facing the top.
