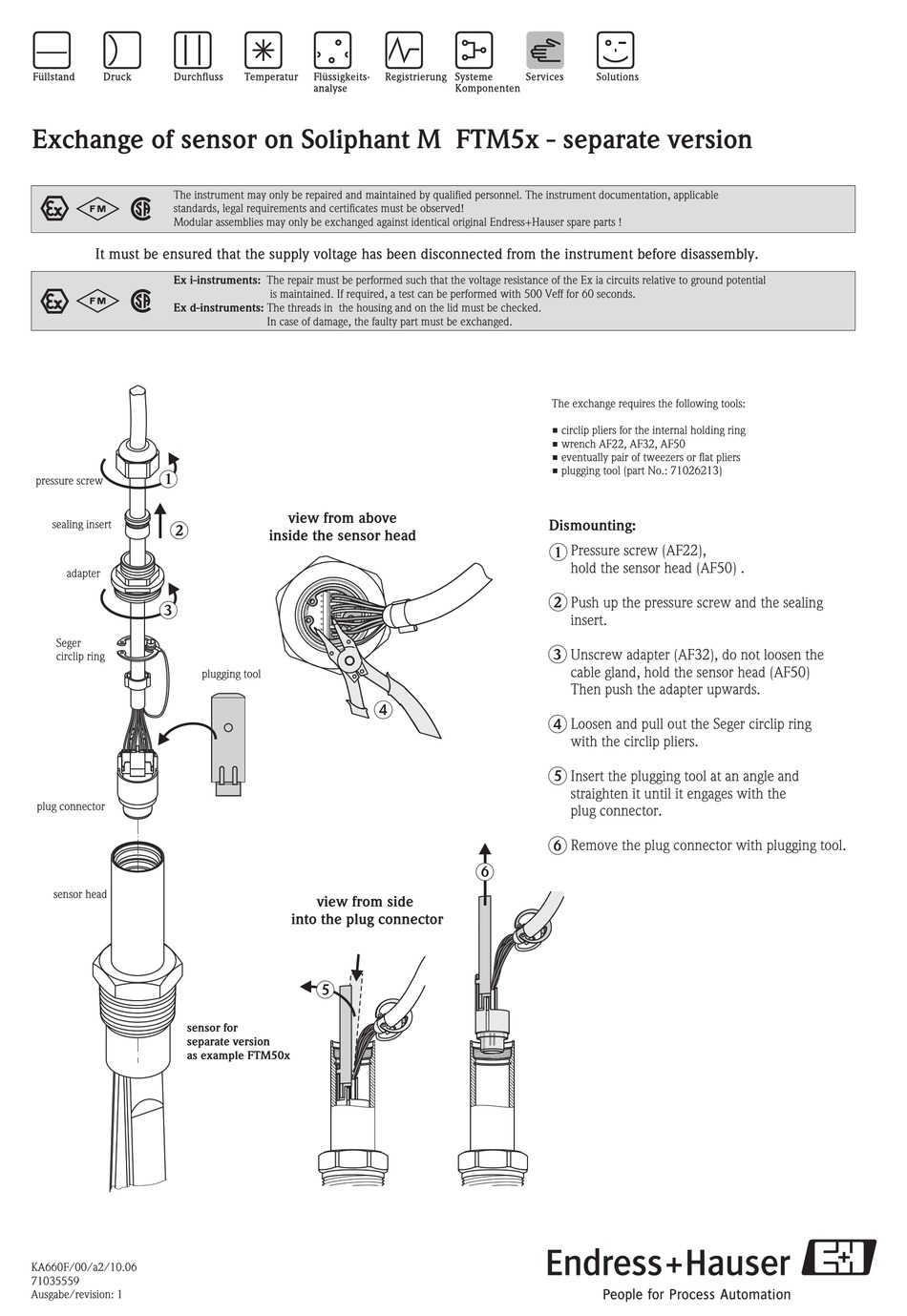

Exchange of sensor on Soliphant M FTM5x - separate version
The instrument may only be repaired and maintained by qualified personnel. The instrument documentation, applicable
0
2
1
standards, legal requirements and certificates must be observed!
Modular assemblies may only be exchanged against identical original Endress+Hauser spare parts !
It must be ensured that the supply voltage has been disconnected from the instrument before disassembly.
Ex i-instruments:
0
2
1
Ex d-instruments:
1
pressure screw
sealing insert
2
adapter
3
Seger
circlip ring
plugging tool
plug connector
sensor head
sensor for
separate version
as example FTM50x
KA660F/00/a2/10.06
71035559
Ausgabe/revision: 1
The repair must be performed such that the voltage resistance of the Ex ia circuits relative to ground potential
is maintained. If required, a test can be performed with 500 Veff for 60 seconds.
The threads in the housing and on the lid must be checked.
In case of damage, the faulty part must be exchanged.
view from above
inside the sensor head
4
view from side
into the plug connector
5
The exchange requires the following tools:
• circlip pliers for the internal holding ring
• wrench AF22, AF32, AF50
• eventually pair of tweezers or flat pliers
• plugging tool (part No.: 71026213)
Dismounting:
Pressure screw (AF22),
1
hold the sensor head (AF50) .
2
Push up the pressure screw and the sealing
insert.
3
Unscrew adapter (AF32), do not loosen the
cable gland, hold the sensor head (AF50)
Then push the adapter upwards.
Loosen and pull out the Seger circlip ring
4
with the circlip pliers.
5
Insert the plugging tool at an angle and
straighten it until it engages with the
plug connector.
6
Remove the plug connector with plugging tool.
6
