KA660F/00/a2/10.06

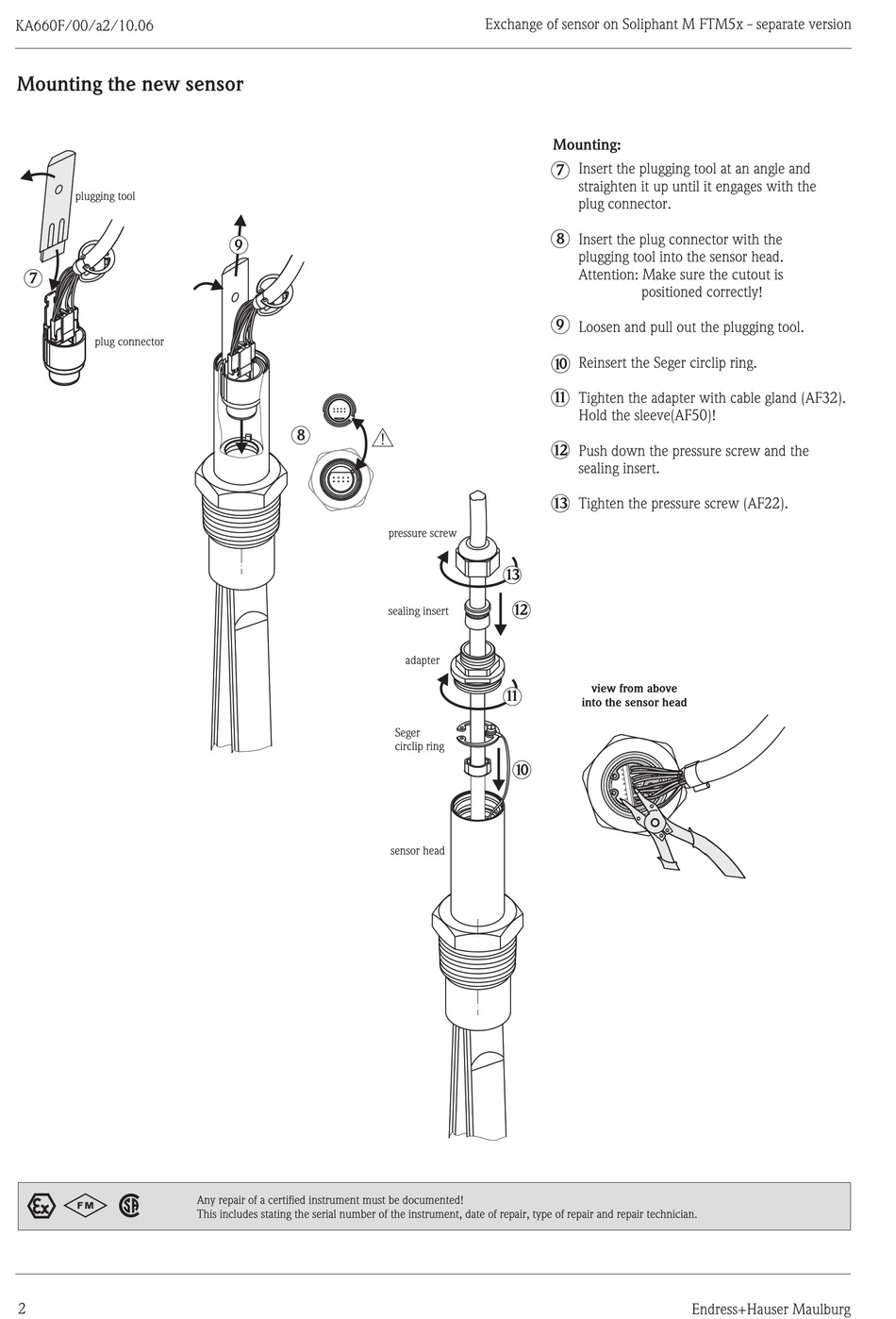

Mounting the new sensor
plugging tool
7
plug connector
0
0
2
2
1
1
2
9
8
Any repair of a certified instrument must be documented!
Any repair of a certified instrument must be documented!
This includes stating the serial number of the instrument, date of repair, type of repair and repair technician.
This includes stating the serial number of the instrument, date of repair, type of repair and repair technician.
Exchange of sensor on Soliphant M FTM5x - separate version
#
pressure screw
3 1
1
2
sealing insert
adapter
1
1
Seger
circlip ring
1
0
sensor head
Mounting:
Insert the plugging tool at an angle and
7
straighten it up until it engages with the
plug connector.
8
Insert the plug connector with the
plugging tool into the sensor head.
Attention: Make sure the cutout is
positioned correctly!
9
Loosen and pull out the plugging tool.
Reinsert the Seger circlip ring.
1
0
1
1
Tighten the adapter with cable gland (AF32).
Hold the sleeve(AF50)!
1
2
Push down the pressure screw and the
sealing insert.
3 1
Tighten the pressure screw (AF22).
view from above
into the sensor head
Endress+Hauser Maulburg
