CONTROLS
30.
Attach the cutting blade using six (6) 5/16-
24 x 1" grade 8 screws, lockwashers and
nuts. Torque attaching hardware to 30 ft.-
lbs. (40.7 Nm).
Use only the special grade 8 cap screws provided.
Screws below grade 8 will not withstand the
recommended torque requirements.
31.
Attach throttle control cable to handle using
clip (loose on cable), one (1) #10-24 x 1/2"
screw and lockwasher.
32.
Install one (1) 1/2" flangelock nut to the
guard support rod.
Engine Switch
Clutch Control
Throttle Control
Operator Presence With clutch control engaged,
GB-10
Downloaded from
www.Manualslib.com
1

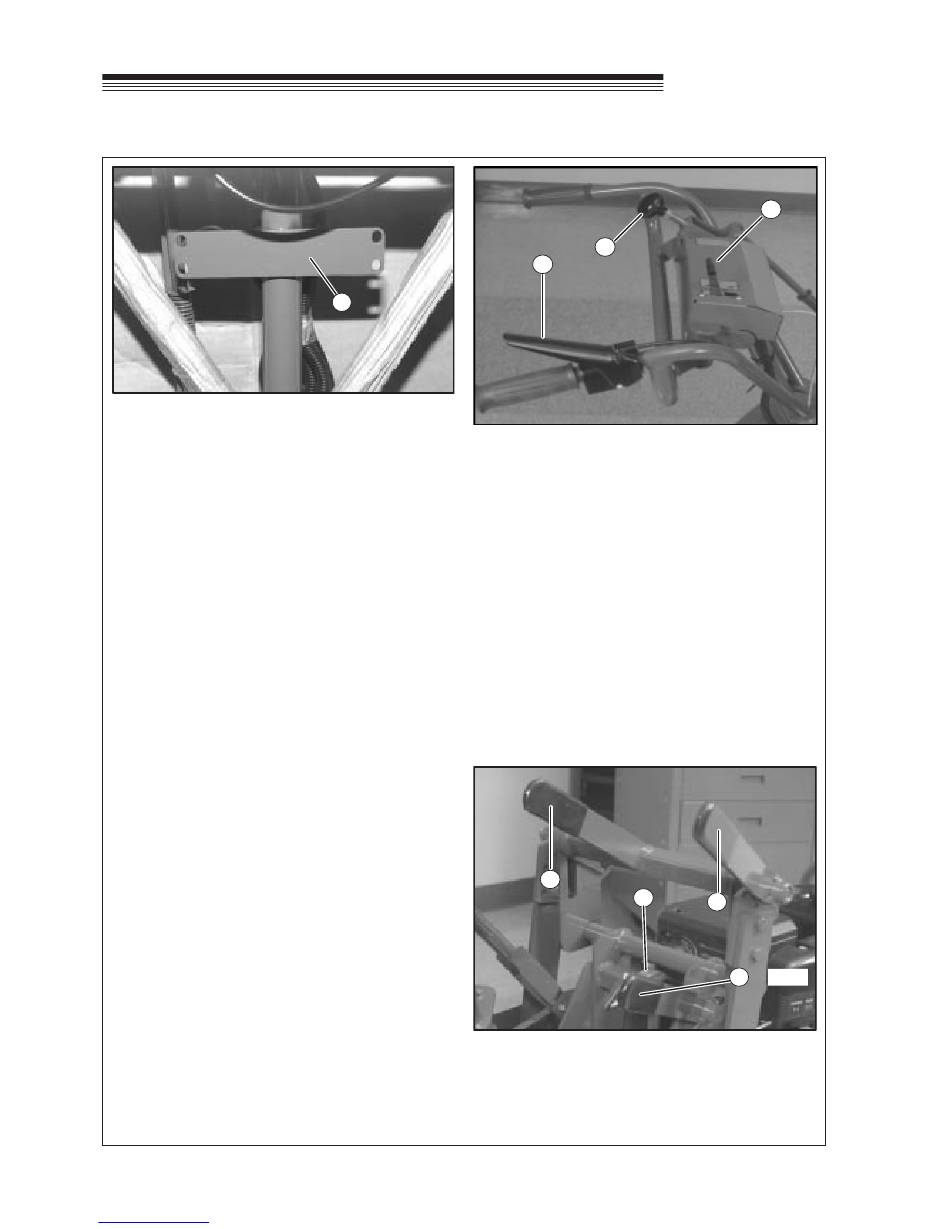

FIGURE 17
1. Literature Mounting Plate
Controls
Turn to "ON" position to start "
engine. Turn to "OFF" position
to stop engine.
Engages or releases drive belt
Lever and applies brake action
to drive belt when pulled
FIRMLY to rear. See Figure
18, item 1.
Speeds up or slows down
engine. See Figure 18, item 2.
Control engine will stop if
operator presence lever is not
depressed. See Figure 18,
item 3.
manuals search engine
1
3
FIGURE 18
1. Clutch Control Lever
2. Throttle Control
3. Operator Presence Control
Blade Depth
Raises or lowers cutting blade.
Control Lever
See Figure 19, item 1.
Blade Angle
Adjusts cutting angle of blade.
Locking Lever
See Figure 19, item 3.
Blade Depth
Locking lever holds blade
Control Locking depth control lever in desired Lever
position. See Figure 19, item 2.
Depth Gauge
Allows resetting of blade depth
to the previous cutting height.
1
4
FIGURE 19
1. Blade Depth Control Lever
2. Blade Depth Control Locking Lever
3. Blade Angle Control Locking Lever
4. Depth Gauge
Jr.
Sodcutter
2
4901
2
4900
3
