Removing the module

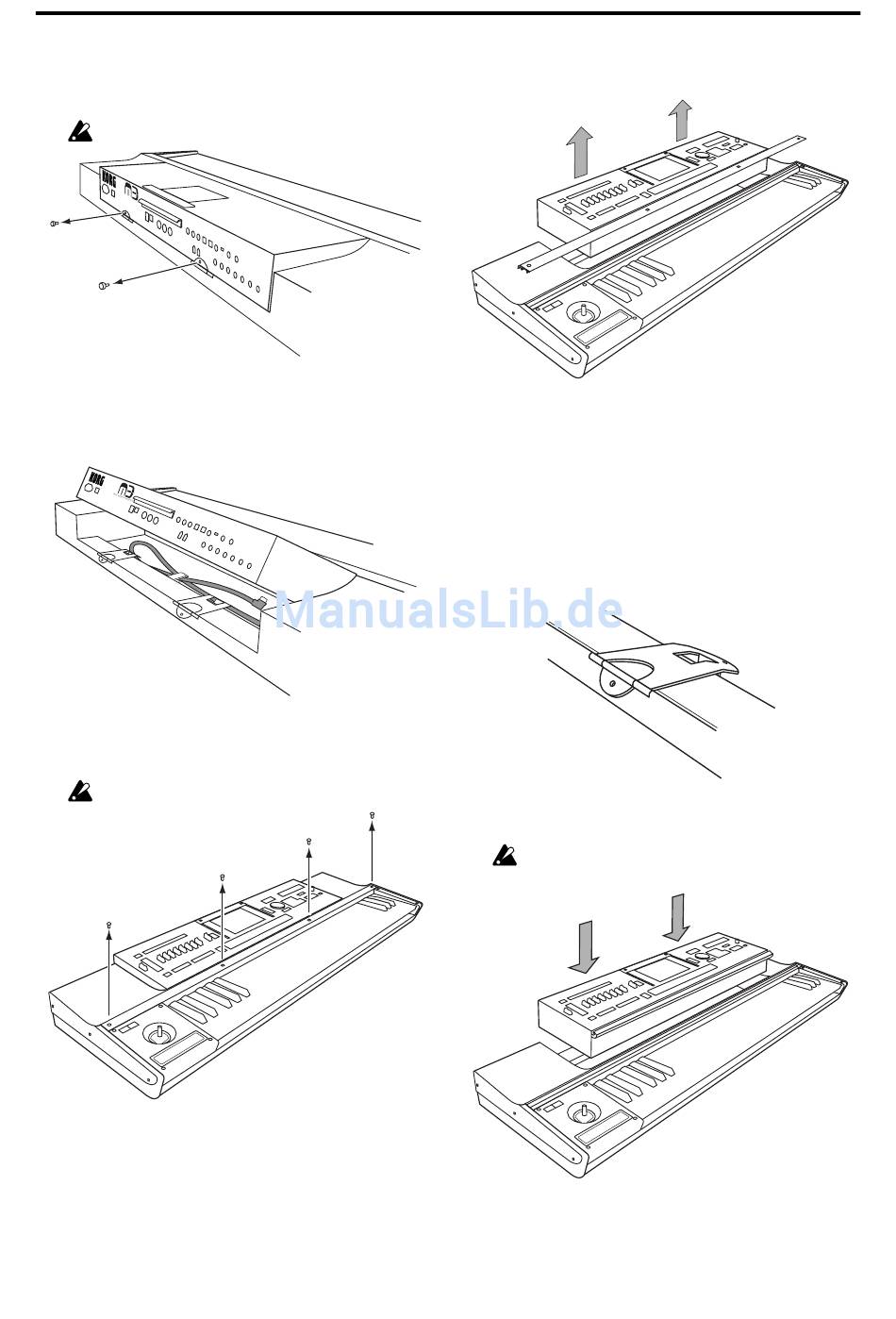

1.
Remove the two screws that fasten the module's rear panel
to the keyboard assembly.
Don't lose these screws!
M U SI
C W
O R KS
TA TI
O N/
SA M
PL ER
2.
While using one hand to raise the module, unplug the
cable (the "L" shaped plug) that's connected to the TO
KYBD connector on the bottom of the module, and gen-
tly lower the module.
3.
Using your Philips (+) screwdriver, remove the four
screws from retaining bar "A" that holds the module to
the keyboard assembly.
Don't lose these screws!
6
4.
Raise the module slightly, and then use both hands to lift
it up, removing the module and retaining bar "A" from
the keyboard assembly.
5.
Re-attach the retaining bar "A" using the screws you re-
moved in step 3. This will keep the screws and retaining
bar "A" safe for future use.
Attaching the module
1.
Make sure that locking supports "B" are in the position
shown below, with the main supports folded in, and the
tab portion folded out. Remove retaining bar "A" from
the keyboard assembly.
2.
Using both hands, lift the module and gently place it on
the keyboard assembly as shown below.
Be careful not to pinch your hand between the module
and keyboard assembly.
