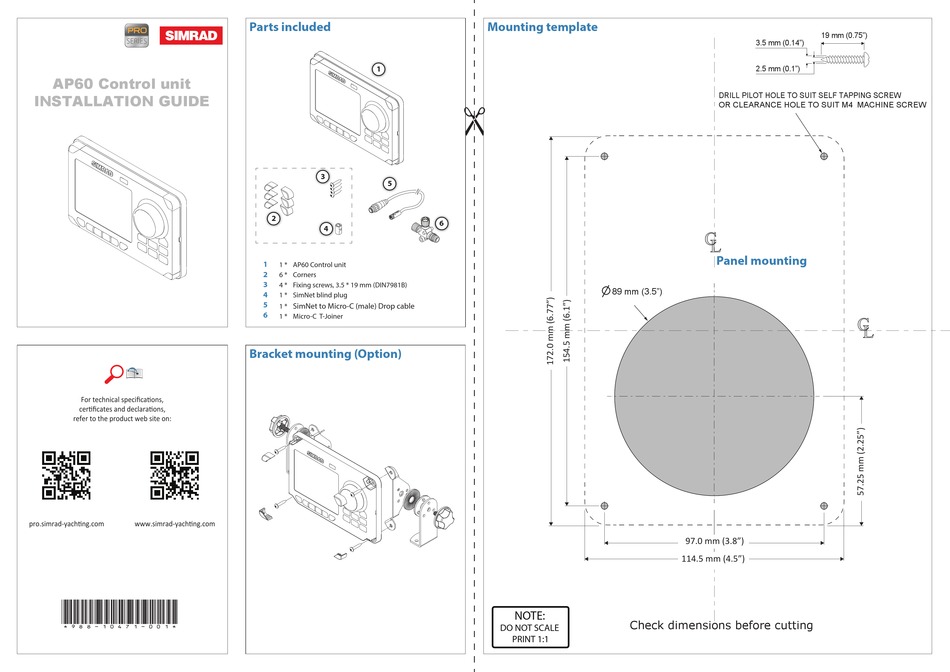

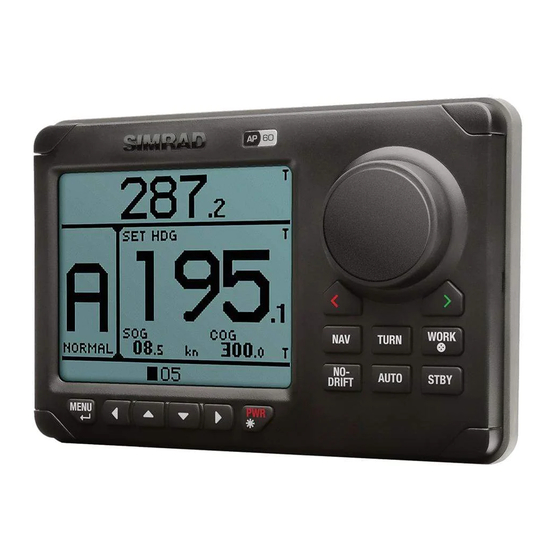

AP60 Control unit
INSTALLATION GUIDE
For technical specifications,
certificates and declarations,
refer to the product web site on:
pro.simrad-yachting.com
www.simrad-yachting.com
*988-10471-001*
Parts included
1
3
5
2
4
1
1 * AP60 Control unit
2
6 * Corners
3
4 * Fixing screws, 3.5 * 19 mm (DIN7981B)
4
1 * SimNet blind plug
5
SimNet to Micro-C (male) Drop cable
1 *
6
1 * Micro-C T-Joiner
Bracket mounting (Option)
Mounting template
6
89 mm (3.5")
NOTE:
DO NOT SCALE
PRINT 1:1
3.5 mm (0.14")
2.5 mm (0.1")
DRILL PILOT HOLE TO SUIT SELF TAPPING SCREW
OR CLEARANCE HOLE TO SUIT M4 MACHINE SCREW
L C
Panel mounting
97.0 mm (3.8")
114.5 mm (4.5")
Check dimensions before cutting
19 mm (0.75")
L C
