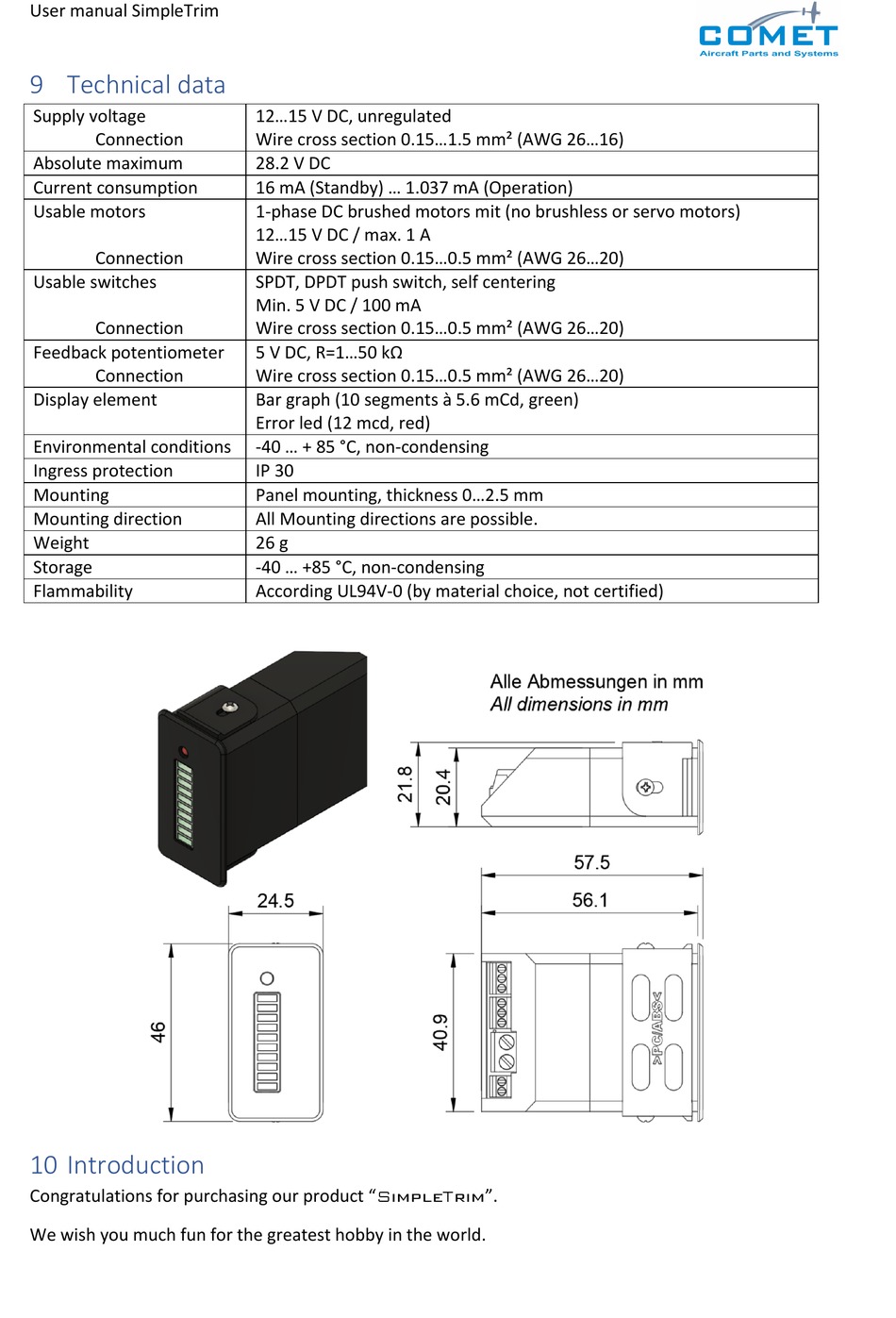

9 Technical data

Supply voltage
Connection
Absolute maximum
Current consumption
Usable motors
Connection
Usable switches
Connection
Feedback potentiometer
Connection
Display element
Environmental conditions
Ingress protection
Mounting
Mounting direction
Weight
Storage
Flammability
10 Introduction
Congratulations for purchasing our product "SimpleTrim".
We wish you much fun for the greatest hobby in the world.
12...15 V DC, unregulated
Wire cross section 0.15...1.5 mm² (AWG 26...16)
28.2 V DC
16 mA (Standby) ... 1.037 mA (Operation)
1-phase DC brushed motors mit (no brushless or servo motors)
12...15 V DC / max. 1 A
Wire cross section 0.15...0.5 mm² (AWG 26...20)
SPDT, DPDT push switch, self centering
Min. 5 V DC / 100 mA
Wire cross section 0.15...0.5 mm² (AWG 26...20)
5 V DC, R=1...50 kΩ
Wire cross section 0.15...0.5 mm² (AWG 26...20)
Bar graph (10 segments à 5.6 mCd, green)
Error led (12 mcd, red)
-40 ... + 85 °C, non-condensing
IP 30
Panel mounting, thickness 0...2.5 mm
All Mounting directions are possible.
26 g
-40 ... +85 °C, non-condensing
According UL94V-0 (by material choice, not certified)
