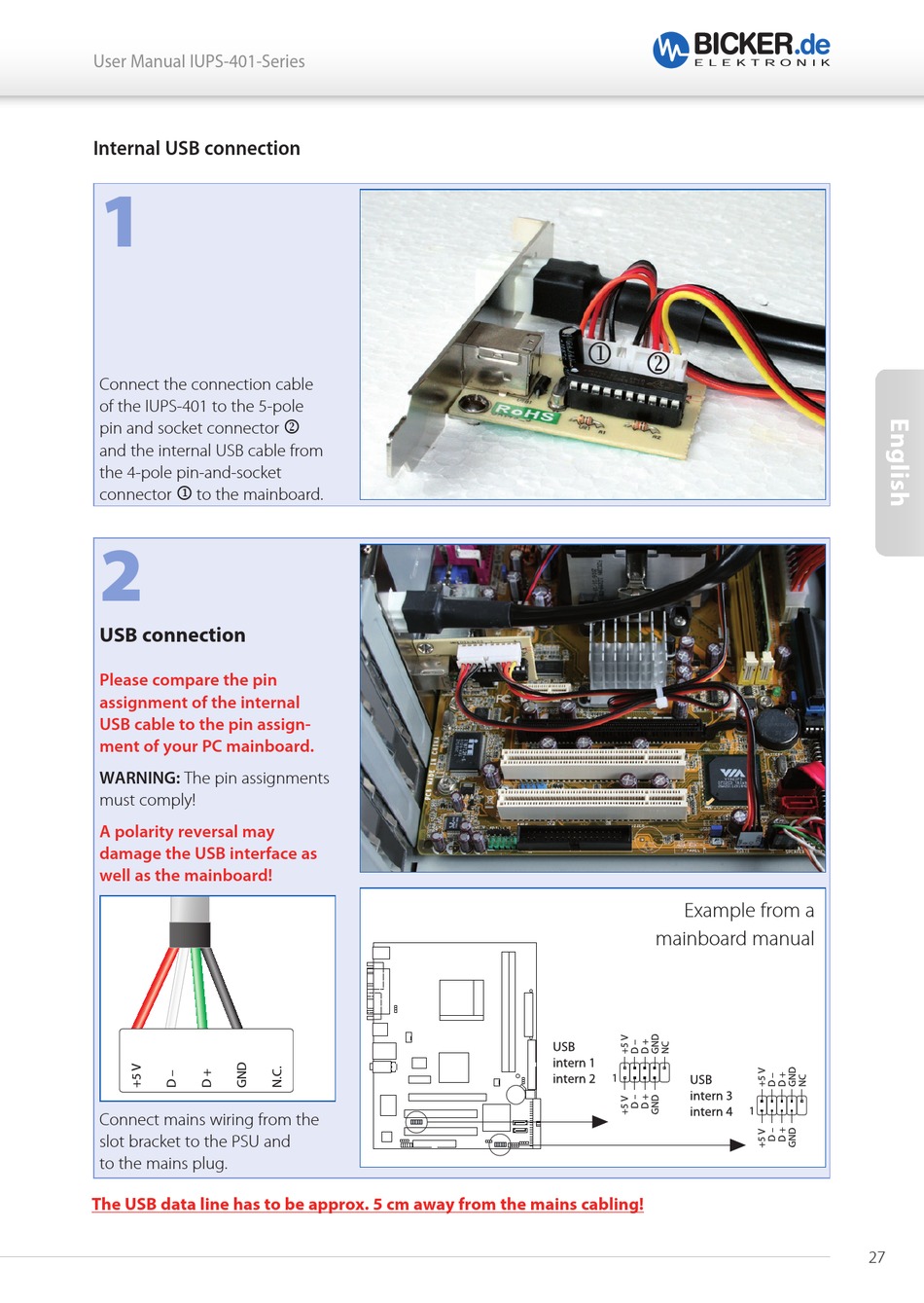

User Manual IUPS-401-Series
Internal USB connection
1
Connect the connection cable
of the IUPS-401 to the 5-pole
pin and socket connector
and the internal USB cable from
the 4-pole pin-and-socket
connector j to the mainboard.
2

USB connection

Please compare the pin
assignment of the internal
USB cable to the pin assign-
ment of your PC mainboard.
WARNING: The pin assignments
must comply!
A polarity reversal may
damage the USB interface as
well as the mainboard!
Connect mains wiring from the
slot bracket to the PSU and
to the mains plug.
The USB data line has to be approx. 5 cm away from the mains cabling!
k
j k
Example from a
mainboard manual
27
