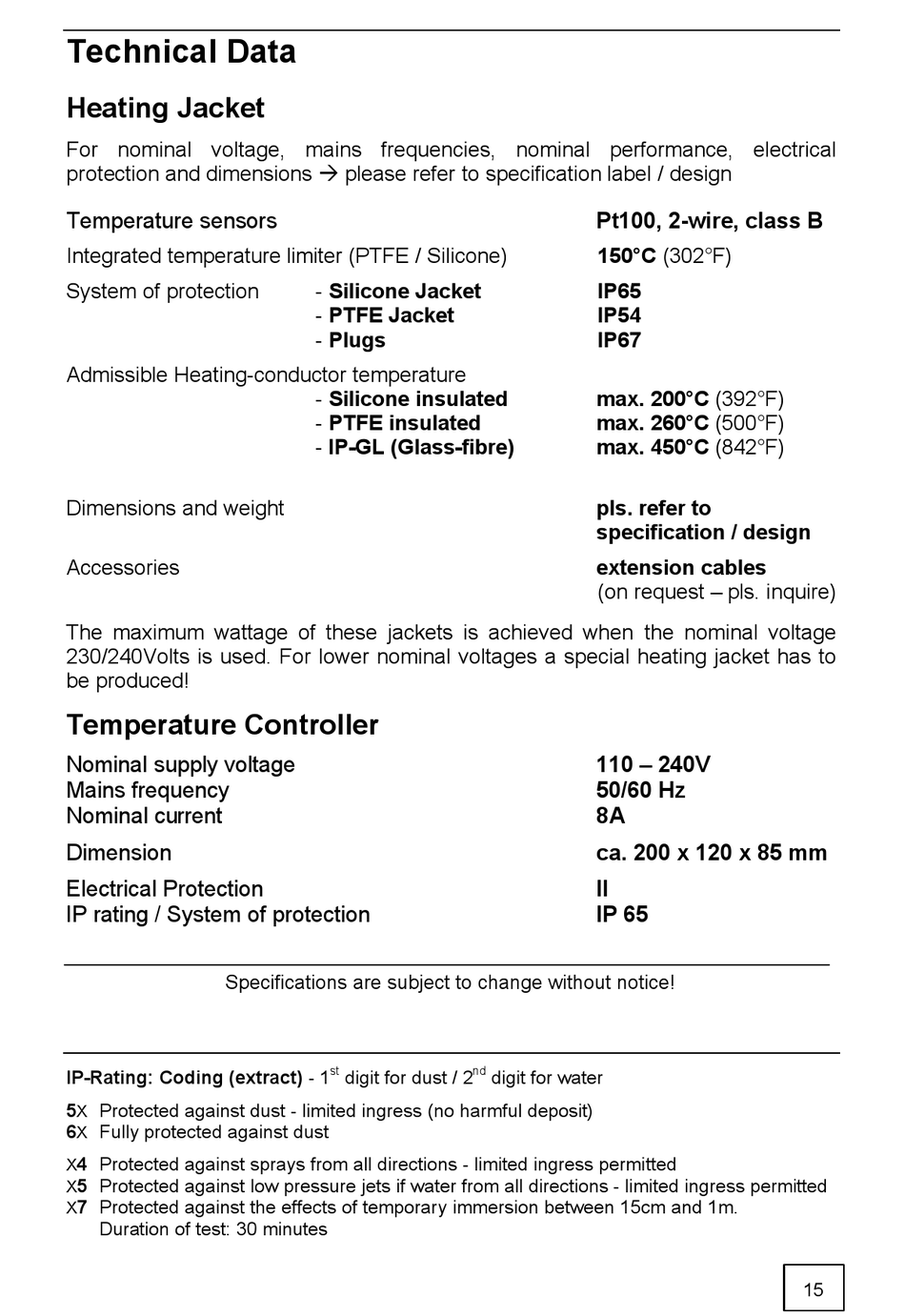

Technical Data

Heating Jacket
For nominal voltage, mains frequencies, nominal performance, electrical
protection and dimensions à please refer to specification label / design
Temperature sensors
Integrated temperature limiter (PTFE / Silicone)
System of protection
Admissible Heating-conductor temperature
Dimensions and weight
Accessories
The maximum wattage of these jackets is achieved when the nominal voltage
230/240Volts is used. For lower nominal voltages a special heating jacket has to
be produced!

Temperature Controller

Nominal supply voltage
Mains frequency
Nominal current
Dimension
Electrical Protection
IP rating / System of protection
Specifications are subject to change without notice!
IP-Rating: Coding (extract) - 1
5 Protected against dust - limited ingress (no harmful deposit)
X
6 Fully protected against dust
X
4 Protected against sprays from all directions - limited ingress permitted
X
5 Protected against low pressure jets if water from all directions - limited ingress permitted
X
7 Protected against the effects of temporary immersion between 15cm and 1m.
X
Duration of test: 30 minutes
- Silicone Jacket
- PTFE Jacket
- Plugs
- Silicone insulated
- PTFE insulated
- IP-GL (Glass-fibre)
st nd
digit for dust / 2
Pt100, 2-wire, class B
150°C (302°F)
IP65
IP54
IP67
max. 200°C (392°F)
max. 260°C (500°F)
max. 450°C (842°F)
pls. refer to
specification / design
extension cables
(on request – pls. inquire)
110 – 240V
50/60 Hz
8A
ca. 200 x 120 x 85 mm
II
IP 65
digit for water
