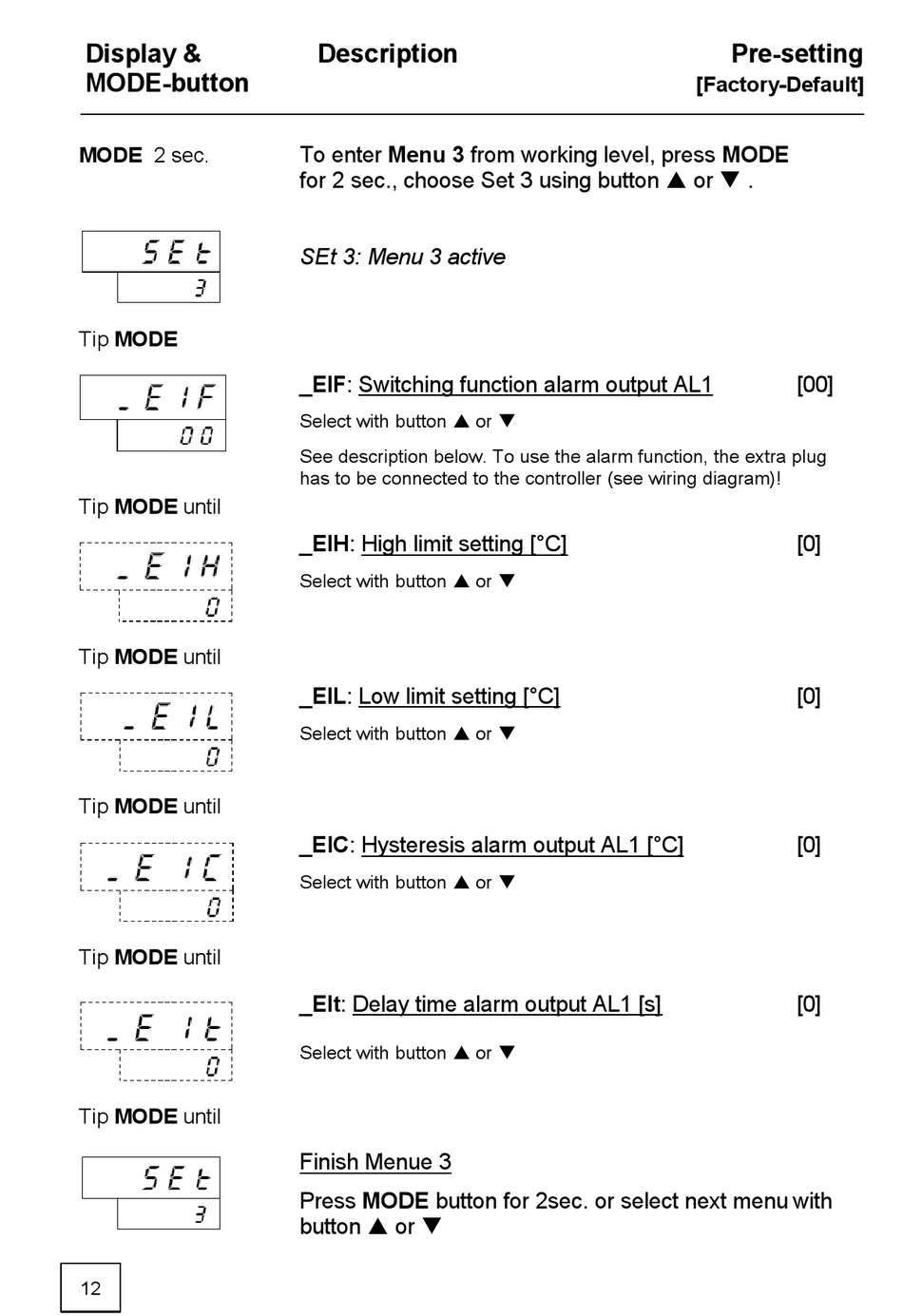

Parker domnick hunter System Bedienungsanweisung Seite 12

Display &
Display &
MODE-button
MODE-button
MODE 2 sec.
Tip MODE
Tip MODE until
Tip MODE until
Tip MODE until
Tip MODE until
Tip MODE until
12
Description
Description
To enter Menu 3 from working level, press MODE
for 2 sec., choose Set 3 using button p or q .
SEt 3: Menu 3 active
_EIF: Switching function alarm output AL1
Select with button p or q
See description below. To use the alarm function, the extra plug
has to be connected to the controller (see wiring diagram)!
_EIH: High limit setting [°C]
Select with button p or q
_EIL: Low limit setting [°C]
Select with button p or q
_EIC: Hysteresis alarm output AL1 [°C]
Select with button p or q
_EIt: Delay time alarm output AL1 [s]
Select with button p or q
Finish Menue 3
Press MODE button for 2sec. or select next menu with
button p or q
Pre-setting
Pre-setting
[Factory-Default]
[Default]
[Default]
[00]
[0]
[0]
[0]
[0]
