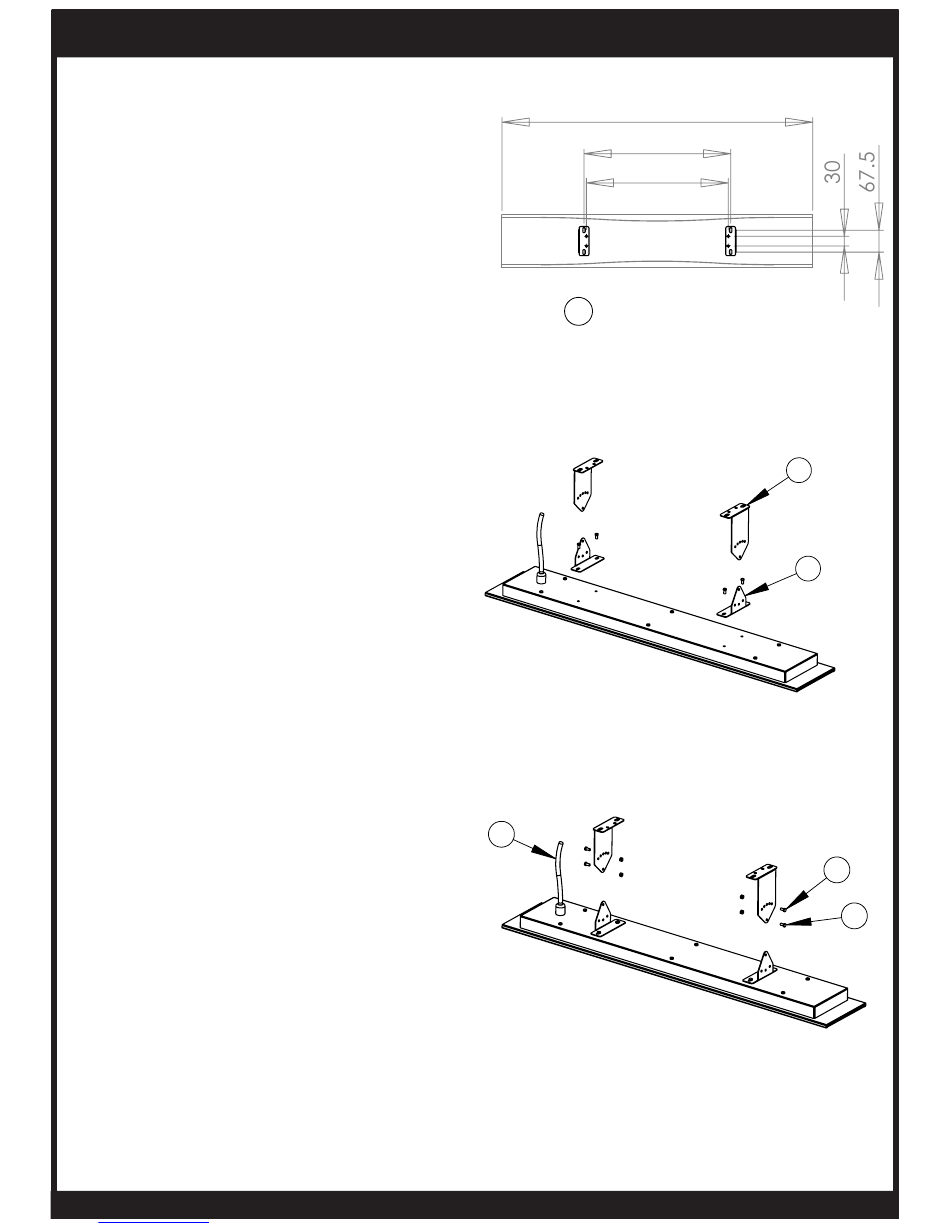

HEATING INSTALLATION INSTRUCTIONS
2. Mark mounting hole centres on ceiling or wall. Brackets
have 2 different mounting holes options.
3. Attach mounting brackets to ceiling or wall using
appropriate fasteners (Not supplied).
4. Assemble rear brackets to heater with M5 screws.
5. Bring heater up to mounting brackets and lock into
position with M5 screw & nut.
6. Rotate heater to required angle. 15° or 30° in either
direction. Lock into position with M5 screw & nut.
7. Make electrical connection from heater to power
supply.
