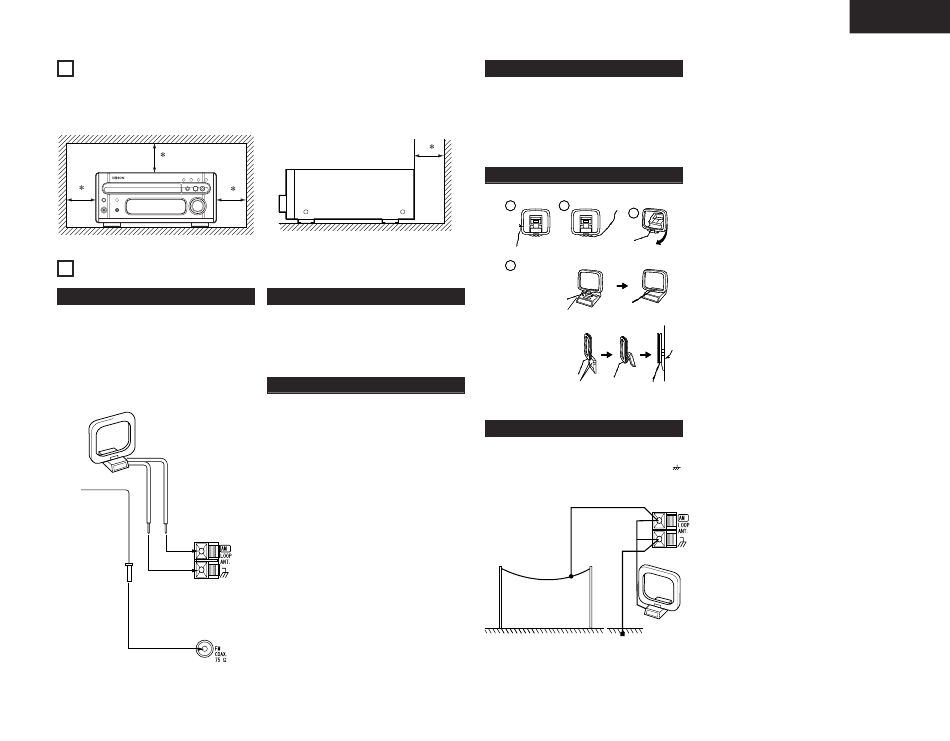

CAUTIONS ON INSTALLATION

Note:
For heat dispersal, do not install this equipment in a confined space such as a book case
or similar unit.
Note
4

CONNECTING THE INCLUDED ANTENNAS

Installing the FM indoor antenna
Tune in FM station (see page 13), set the
antenna so that distortion and noise is minimal,
then secure the tip of the antenna in this
position using tape or a pin.
AM loop antenna
FM antenna
Connecting an FM outdoor antenna
If good reception cannot be achieved with the
included FM antenna, use an FM outdoor
antenna. Connect an PAL-type connector to
the coaxial cable and connect the antenna to
the FM COAX. (75 Ω/ohms) terminal.
Selecting a place for the FM outdoor antenna
• Set the antenna so that it points towards the
broadcast station's transmitting antenna.
Behind buildings or mountains, set the
antenna in the position at which reception is
best, and also try changing the direction of
the antenna.
• Do not install the antenna under power lines.
Doing so is extremely dangerous, as the
power line could touch the antenna.
• Install the antenna away from roads or train
tracks to avoid noise from cars or trains.
• Do not install the antenna too high, as it may
be hit by lightning.
Installing the AM loop antenna
Tune in an AM station (see page 13) and set
the antenna as far from the system as possible
to keep distortion and noise is minimal. In
some cases, it is best to invert the polarities.
AM broadcasts cannot be received well if the
loop antenna is not connected or if it is set
close to metal objects.
Assembling the AM loop antenna
Connection to the AM
loop antenna terminals.
1 1 2 2
3 3
Remove the vinyl tie
Bend in the reverse
and take out the
direction.
connection line.
4 4
a. With the antenna
on top any stable
surface.
Mount
b. With the antenna
attached to a wall.
Installation hole
Mount on wall, etc.
Installing an AM outdoor antenna
Connect the signal wire from the AM outdoor
antenna to the antenna terminal. Be sure to
connect the signal ground wire to the
terminal. Also be sure to connect the included
AM loop antenna.
AM outdoor antenna
AM loop
antenna
Signal ground
