Det.
Nomenclature
1 Bout - Bolt -Schraube -Boulen M16x40 .............................................. .
2 Borgplaat - Lockplate -Sicherungsblech - Rondelle .............................. .
3 Sluitring -Washer - Scheibe - Rondelle .................................................
4 Vleugel -Wing -Flügel -Aile .................................................................
5 V-snaarschijf -Pulley -Riemenscheibe - Poulie SPB -225-5 ..............
6 Veerring - Springwasher - Federring -Rondelle d'arrêt MB ...................
7 Bout -Bolt -Schraube -Boulen MBx20 .................................................
8 Deksel -Cover -Deckel -Couvercle Incl. Det. 9 ....................................
9 Oliekeerring - Oil seal - Simmerring -Joint... ..........................................
10 Kogellager -Bearing - Lager
11 Lagerhuis -Housing - Gehäuse - Boite Incl. Det. 9 ................................
12 Verlengpijpje -Extension tube - Distanzrohr - Rallonge .........................
13 Smeernippel - Grease nipple - Schmiemippel -Graisseur ......................
14 Ring -Washer- Scheibe - Rondelle ...................................................... .
15 Bout - Bolt -Schraube -Boulen M16x65 .............................................. .
16 Bout -Bolt - Schraube - Boulen M16x70 .............................................. .
17 Veerring - Springwasher - Federring -Rondelle d'arrêt M16 .................
18 Borgmoer -Locknut-Sicherungsmutter - Ecrou freine M16 ..................
19 Spie - Key - Keil -Clavette .....................................................................

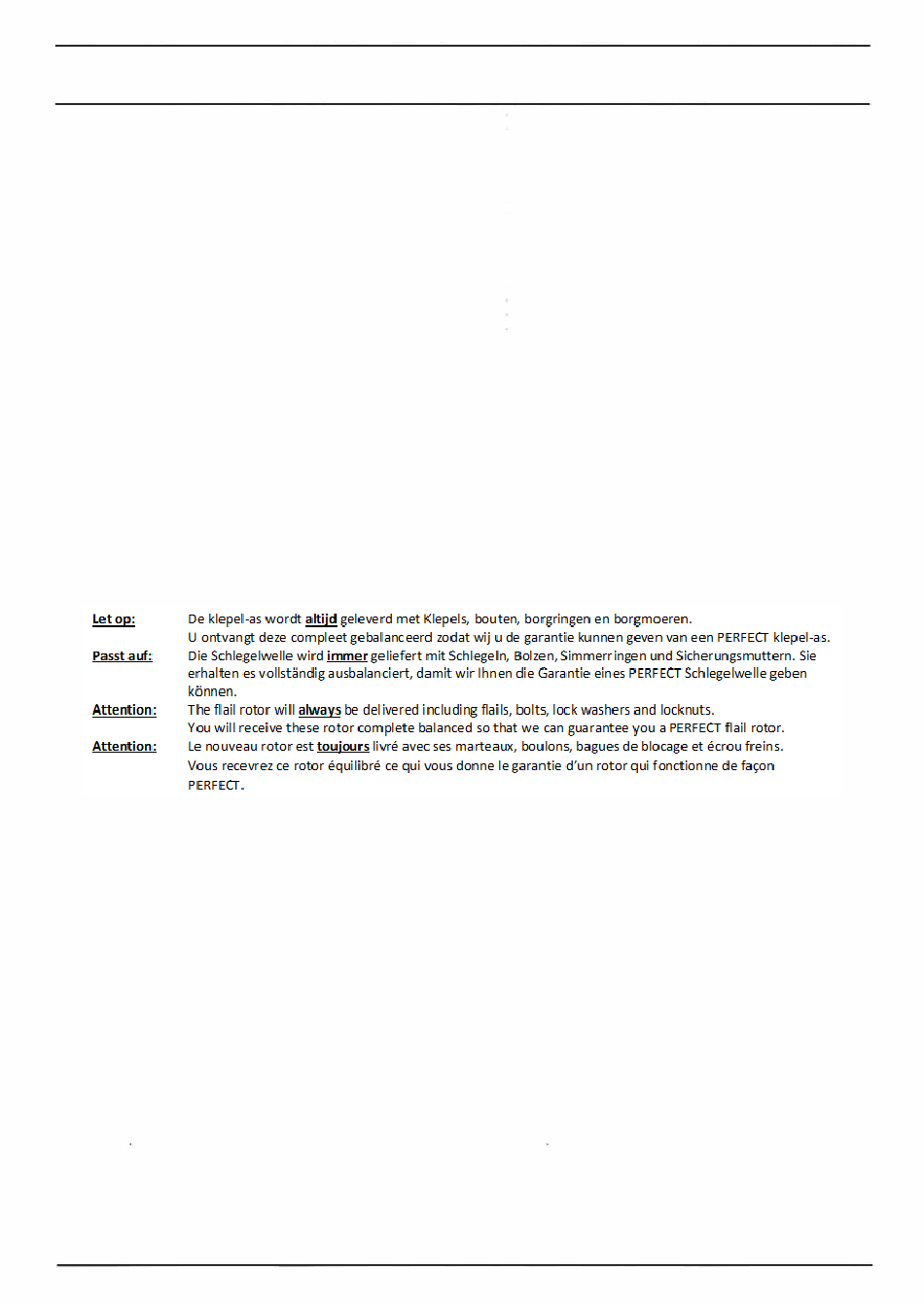

20 Klepelas - Flail rotor - Schlegelwelle - Rotor .........................................
21 Deksel -Cover -Deckel - Couvercle ......................................................
22 Klepel - Flail -Schlegel -Marteau .........................................................
23 Spanbus - Bushing -Büchse -Bague ....................................................
24 Spanbus -Bushing - Büchse -Bague ....................................................
25 Borgring -Lockwasher -Sicherrungsring - Rondelle freine ....................
26 Bout -Bolt -Schraube -Boulon M20x137 .............................................
27 Borgmoer - Locknut - Sicherungsmutter - Ecrou freine M20 ..................
28 Oor -Ear -Lasche -Douille ...................................................................
29 Oor -Ear -Lasche -Douille ...................................................................
01-01-201 B
nadruk verboden - all rights reserved - nachdruck verboten - contrefaire interdite
-
Roulement 1311 ....................................
Qty.
RX-620
L./R.
No.
1
3.02964
1
4.12214
,
1
4.12213
1
,
4.14590
,
1
4.15758
.
8
3.01932
8
.
3.02902
.
1
4.11636
.
3
3.03483
2
.
3.01881
.
2
4.11637
.
1
3.11751
2
.
3.01537
2
4.11891
5
3.02969
1
3.02970
.
6
3.02879
.
6
3.00211
.
1
3.01570
.
1
4.15757
.
1
4.11638
20
.
3.11624
.
20
3.02991
.
20
3.03030
.
20
3.03025
.
20
3.11668
.
20
3.00212
.
20
3.11719
.
20
3.11718
111
