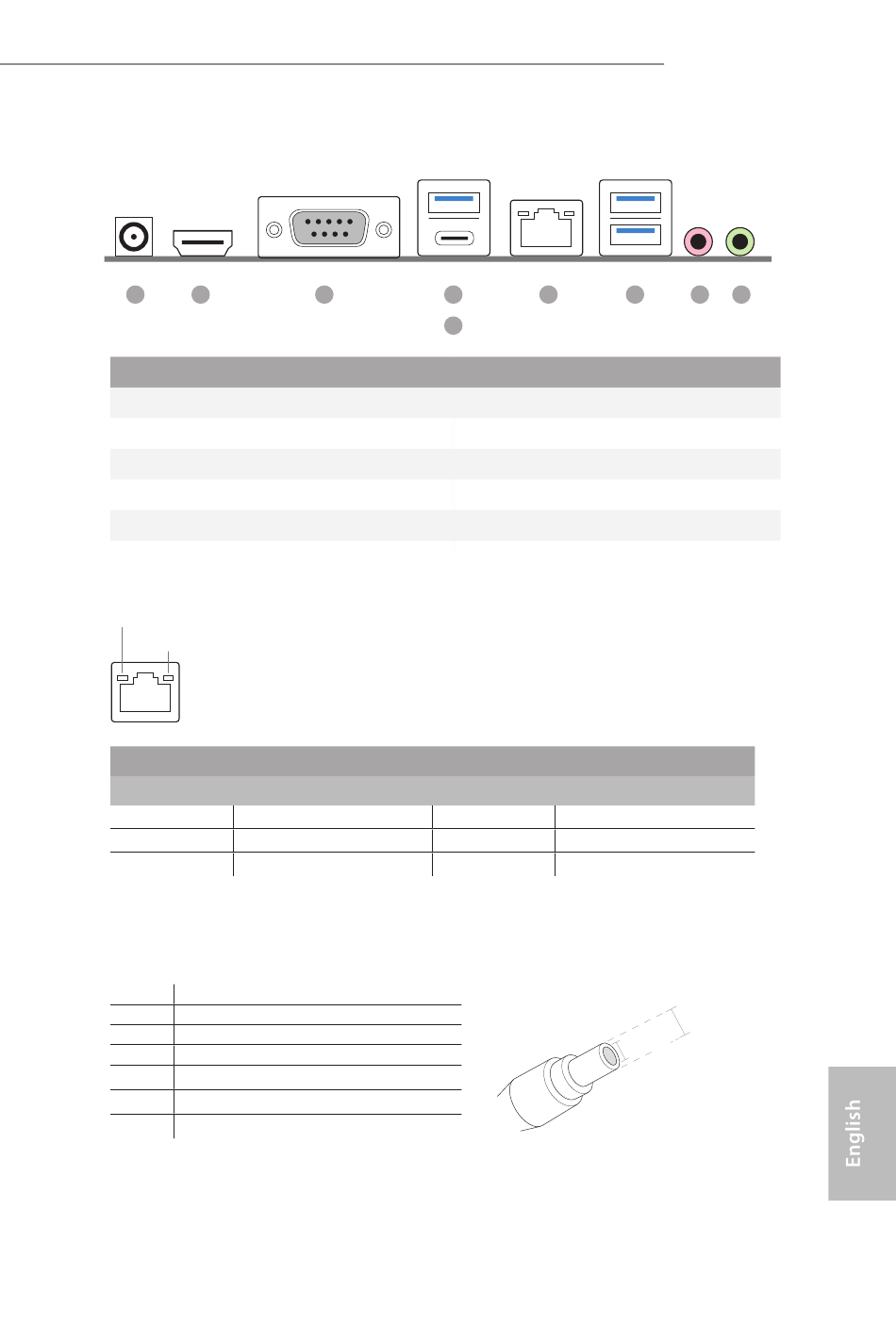

I/O Panel
1 2
No. Description
1 DC Jack**
2 HDMI Port (HDMI1)
3 COM Port
4 USB 3.2 Gen1 Type-A Port (USB_TA_2)
5 USB 3.2 Gen1 Type-C Port (USB_TC_1)
*There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED
Status Description
Off No Link
Blinking Data Activity
On Link
** Please use a 19V power adapter for the DC jack. This jack accepts dual barrel plugs with an inner diameter of 2.5
mm and an outer diameter of 5.5 mm, where the inner contact is +19 (±10%) DC and the shell is (centre positive).
DELTA DELTA-ADP-150TB-150W/19V
HP HP-TBC-BA52-150W/19V
FSP FSP-FSP150-ABAN1-150W/19V
DELL FA130PE1-00-130W/19.5V
DELL LA90PE0-01-90W/19.5V
DELTA DELTA-ADP-180TB-180W/19V
FSP FSP-FSP180-ABBN3-180W/19V
This motherboard is available with support for either 4-pin ATX 19V power or DC-in power supplies. Please do
not use two kinds of power supplies at the same time! Doing so may damage the motherboard components and
devices. When you use the DC-in power adapter, please use the onboard SATA power connector to get the power
for HDDs.
3 4
5
No. Description
6
7
8
9
Speed LED
Status
Off
Green
Green
6 7
LAN RJ-45 Port*
USB 3.2 Gen1 Type-A Port (USB3_01)
Microphone (Pink)
Line out (Lime)
Description
10Mbps connection
100Mbps connection
1Gbps connection
*Specification for DC plug
2.5 mm
X300TM-ITX
8 9
5.5 mm
