USING THE IMAGE GUIDE ON THE FLAT TABLE
• To aid with feeding in images, the rear table is provided
with an "Image Guide".
• This device can be positioned in front of the roller and
it prevents the images from interrupting the photoelec-
tric eyes.
• The image guide can be removed when mounting
boards.

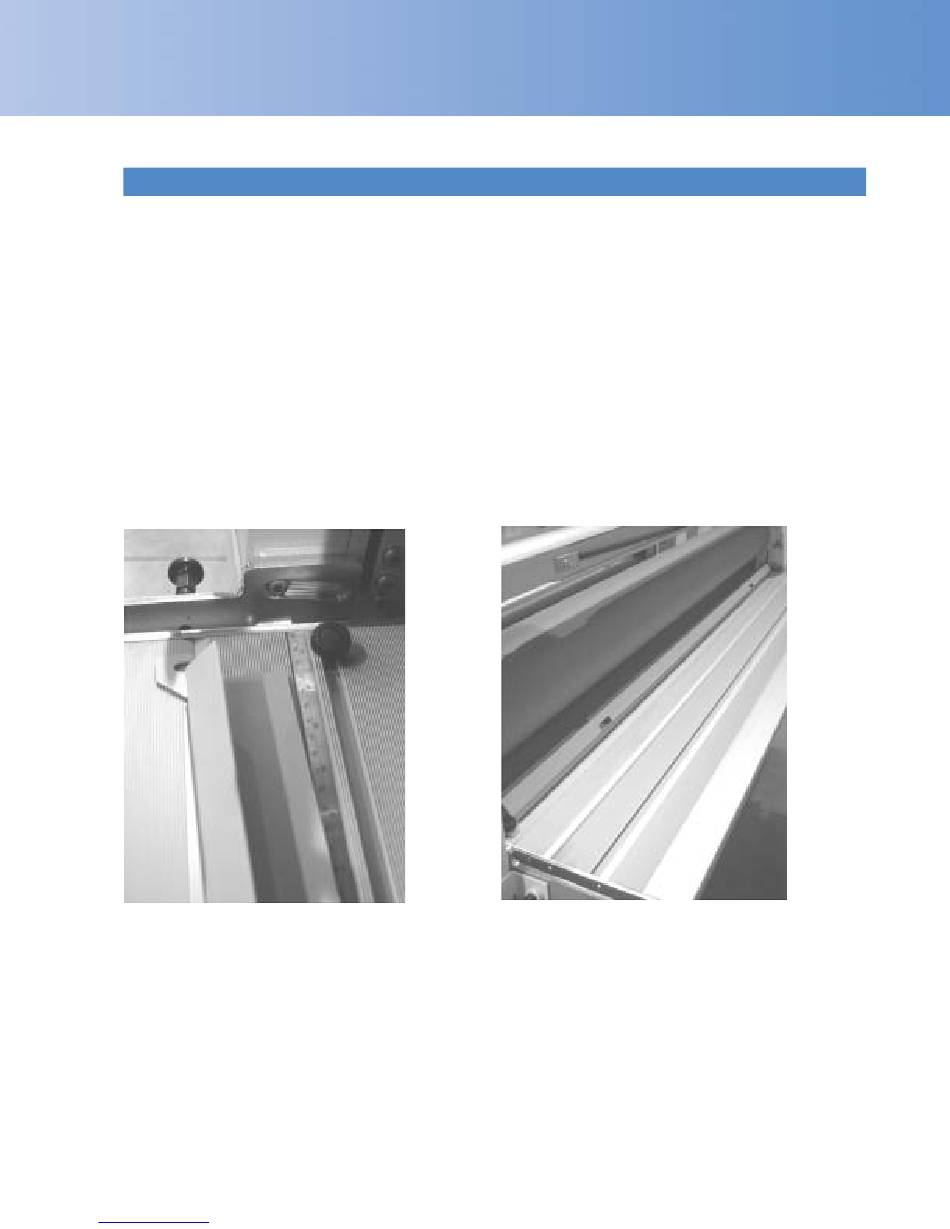

Figure 2. Installing the Rear Table Image Guide
Downloaded from www.Manualslib.com manuals search engine
F E E D I N G I M A G E S
• To position the Image Guide, push it completely in
towards the roller aligning the outer notches with the
thumbscrews in the table.
• Tighten the thumbscrews down to secure the image
guide in place. You are ready to feed images.
• To assist with this, the edge of the image can be seen
through the windows in the "Image Guide", which is
in front of the rollers.
Figure 3. Placement of the Image Guide
