6500 Xt Back Control Panel - SEAL Image 6500 XT Betriebsanleitung

1. Air Pressure Gauge: Indicates the PSI reading for the
downward pressure of the top pull roller. The standard
setting for the normal operation is 35-55 PSI.
2. Air Regulator Knob: Adjusts the downward pressure of
the top pull roller. Turn clockwise to increase the pres-
sure.
3. Roller Up/Down Switch (Rear, Top): Press the switch
up to raise the roller. Press the switch down to lower the
roller.
4. Reset Button: Press this button to reset the material
total usage counter to zero. Totalizer Display must be
showing to be able to zero out.
5. Ratemeter /Totalizer Button: Pressing this button will
toggle between the roller speed readout or total material
usage. Press this button to track and display the total
number of feet or meters run in a given period, which
can help to monitor film usage. The total will be stored
even after the laminator is turned off, and adds to the
total whenever the bottom main roller is turning. The
corresponding LED will be lit when the Totalizer is
being used.
6. Ratemeter/Totalizer Readout: Displays the rate of
speed of the main rollers in either feet or meters per
minute, or displays the total number of feet or meters
run in a given period.
7. Top Rear Roller On/Off Button: Turns On/Off the
top rear roller heater. The corresponding LED will be lit
when the heater is ON.
8. Top Rear Roller Temperature Increase Button:
Press this button once to view the temperature set point.
Press and hold the button to raise the top rear roller
temperature.
4
Downloaded from www.Manualslib.com
6 5 0 0 X T B A C K C O N T R O L P A N E L
manuals search engine
9. Top Rear Roller Temperature Readout: Displays both
the set and actual temperature of the top rear roller.
10. Top Rear Roller Temperature Decrease Button:
Press this button once to view the set point. Press
and hold the button to lower the top rear roller
temperature.

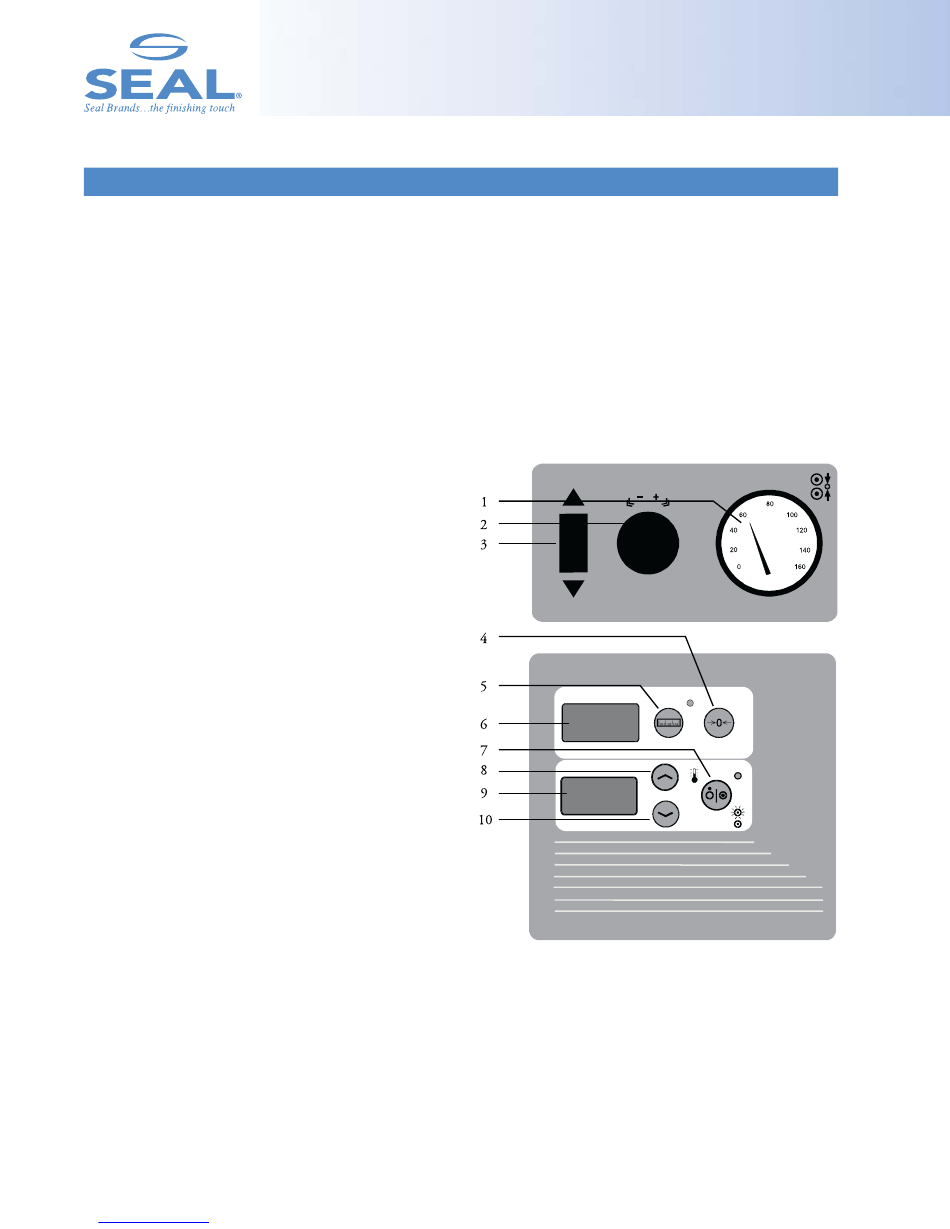

Figure 1. 6500 XT Top Heat Back Control Panel
