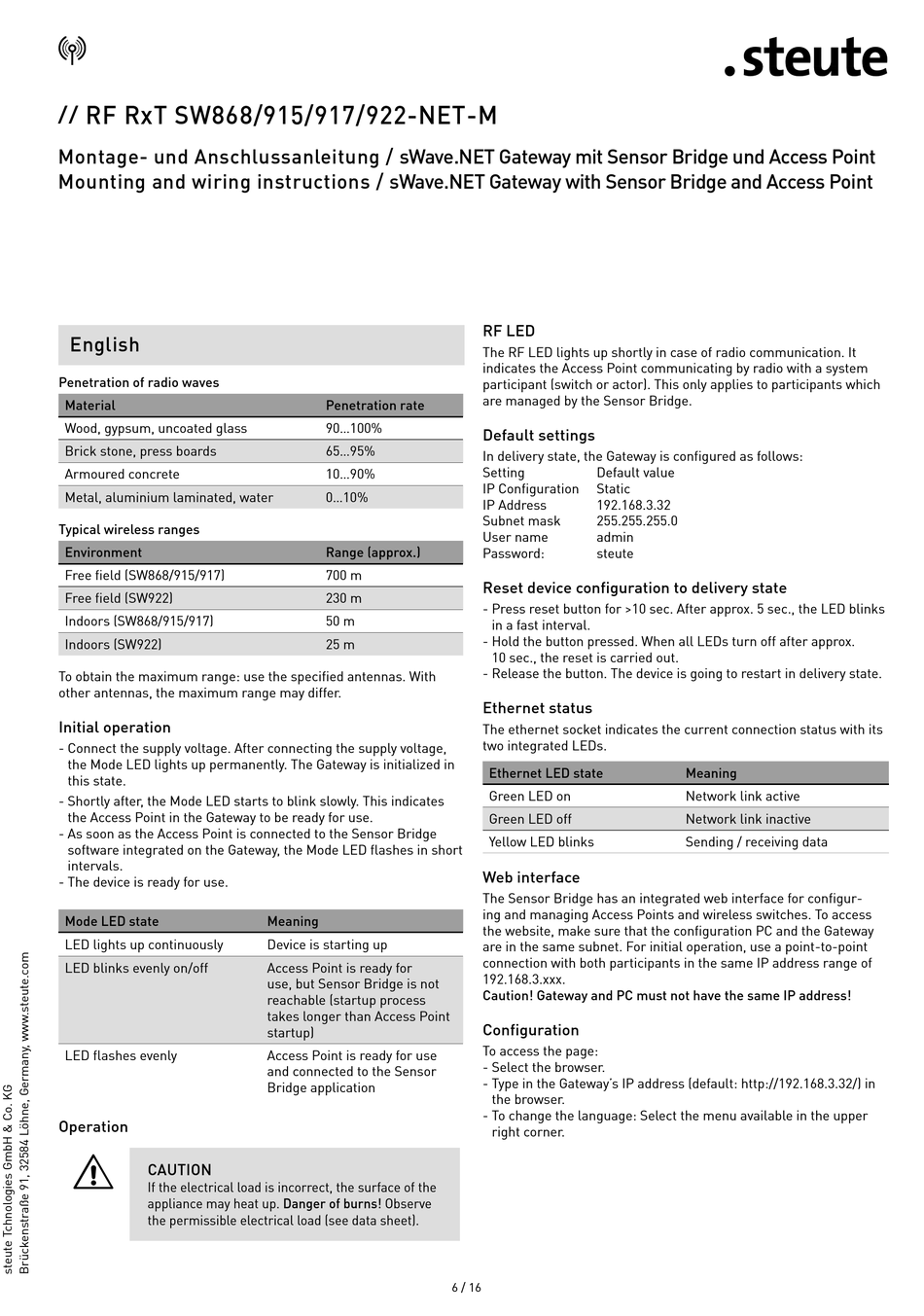

RF RxT SW868/915/917/922-NET-M
//
Montage- und Anschlussanleitung / sWave.NET Gateway mit Sensor Bridge und Access Point
Mounting and wiring instructions / sWave.NET Gateway with Sensor Bridge and Access Point
English
Penetration of radio waves
Material
Wood, gypsum, uncoated glass
Brick stone, press boards
Armoured concrete
Metal, aluminium laminated, water
Typical wireless ranges
Environment
Free field (SW868/915/917)
Free field (SW922)
Indoors (SW868/915/917)
Indoors (SW922)
To obtain the maximum range: use the specified antennas. With
other antennas, the maximum range may differ.
Initial operation
- Connect the supply voltage. After connecting the supply voltage,
the Mode LED lights up permanently. The Gateway is initialized in
this state.
- Shortly after, the Mode LED starts to blink slowly. This indicates
the Access Point in the Gateway to be ready for use.
- As soon as the Access Point is connected to the Sensor Bridge
software integrated on the Gateway, the Mode LED flashes in short
intervals.
- The device is ready for use.
Mode LED state
LED lights up continuously
LED blinks evenly on/off
LED flashes evenly

Operation

=
CAUTION
If the electrical load is incorrect, the surface of the
appliance may heat up. Danger of burns! Observe
the permissible electrical load (see data sheet).
Penetration rate
90...100%
65...95%
10...90%
0...10%
Range (approx.)
700 m
230 m
50 m
25 m
Meaning
Device is starting up
Access Point is ready for
use, but Sensor Bridge is not
reachable (startup process
takes longer than Access Point
startup)
Access Point is ready for use
and connected to the Sensor
Bridge application
RF LED
The RF LED lights up shortly in case of radio communication. It
indicates the Access Point communicating by radio with a system
participant (switch or actor). This only applies to participants which
are managed by the Sensor Bridge.
Default settings
In delivery state, the Gateway is configured as follows:
Setting Default value
IP Configuration Static
IP Address 192.168.3.32
Subnet mask 255.255.255.0
User name admin
Password: steute
Reset device configuration to delivery state
- Press reset button for >10 sec. After approx. 5 sec., the LED blinks
in a fast interval.
- Hold the button pressed. When all LEDs turn off after approx.
10 sec., the reset is carried out.
- Release the button. The device is going to restart in delivery state.
Ethernet status
The ethernet socket indicates the current connection status with its
two integrated LEDs.
Ethernet LED state
Green LED on
Green LED off
Yellow LED blinks
Web interface
The Sensor Bridge has an integrated web interface for configur-
ing and managing Access Points and wireless switches. To access
the website, make sure that the configuration PC and the Gateway
are in the same subnet. For initial operation, use a point-to-point
connection with both participants in the same IP address range of
192.168.3.xxx.
Caution! Gateway and PC must not have the same IP address!
Configuration
To access the page:
- Select the browser.
- Type in the Gateway's IP address (default: http://192.168.3.32/) in
the browser.
- To change the language: Select the menu available in the upper
right corner.
6 / 16
Meaning
Network link active
Network link inactive
Sending / receiving data
