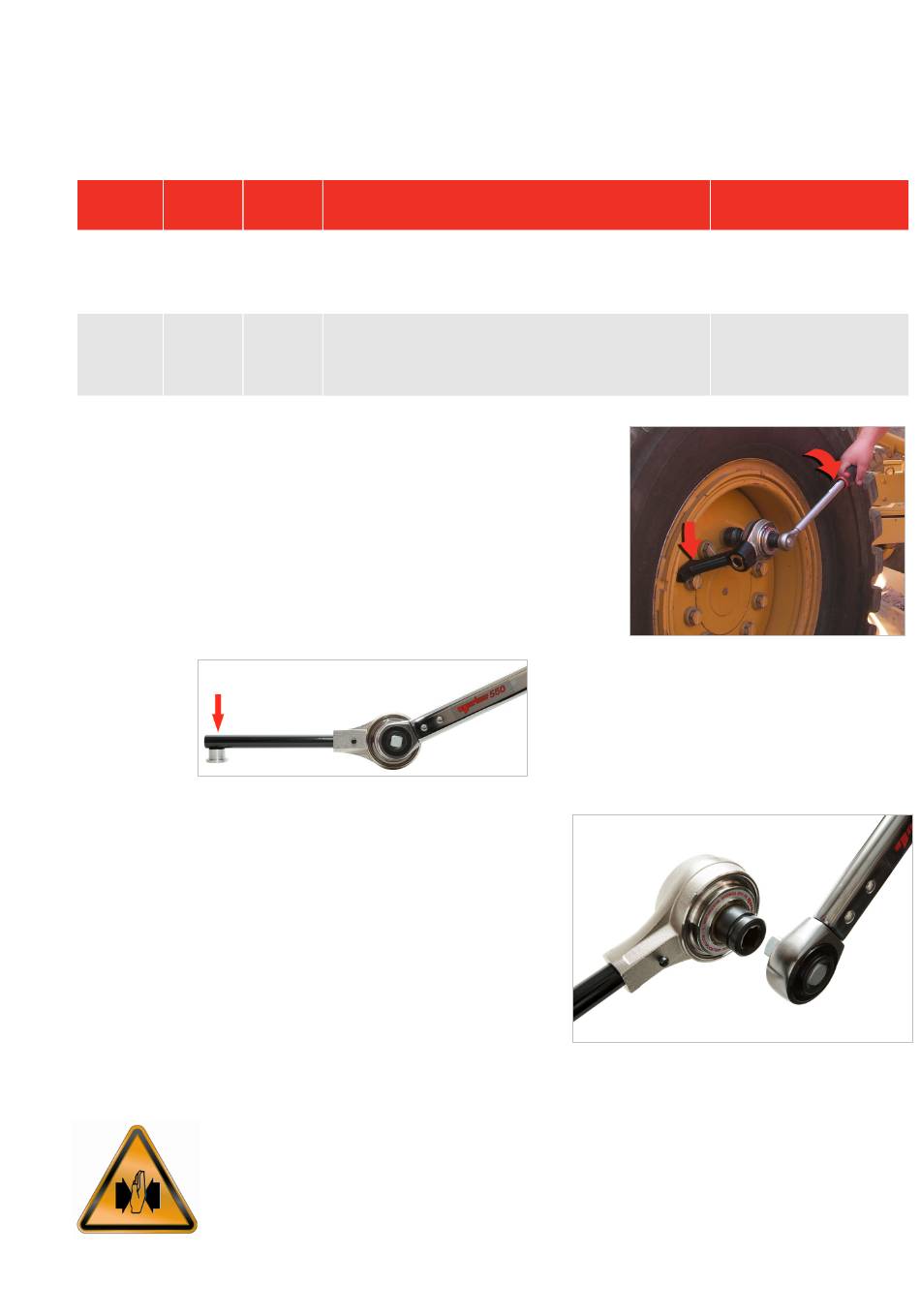

INTRODUCTION
®
The HandTorque
HT3 is a precision tool which multiplies the input torque by a factor of 5 when used with the
supplied straight reaction, or 4.75 when used with the supplied cranked reaction.
Part
Input
Number
Square
17220
½"
17221
¾"
REACTION
1.
Select correct socket drive: it is recommended to use power drive
sockets.
2.
In use the tool body rotates in the opposite direction to applied drive. It
is necessary to allow the torque reaction arm to rest against a solid
stop before any useful work can be done.
3.
To prevent undue stress on the gears always take torque reaction as
far away from drive square as circumstances permit.
DRIVING TOOL
1.
For torque control and even bolt loading a torque wrench is
required.
2.
A) With straight reaction - set torque wrench to 1/5 of the
desired torque on the nut
B) With cranked reaction – set torque wrench to 1/4.75 of
the desired torque on the nut
Do not exceed maximum input torque.
IMPORTANT:
DO NOT USE THE MULTIPLIER WITH IMPACT OR
IMPULSE WRENCHES.
There is a risk of crushing between the reaction bar and work piece.
Keep hands away from reaction bar.
Keep hands away from tool output
1
Output
Square
¾"
1"
Max Input
260 Nꞏm (190 lbfꞏft)
With straight reaction
274 Nꞏm (202 lbfꞏft)
With cranked reaction
540 Nꞏm (400 lbfꞏft)
With straight reaction
568 Nꞏm (421 lbfꞏft)
With cranked reaction
Max Output
1300 Nꞏm (960 lbfꞏft)
2700 Nꞏm (2000 lbfꞏft)
