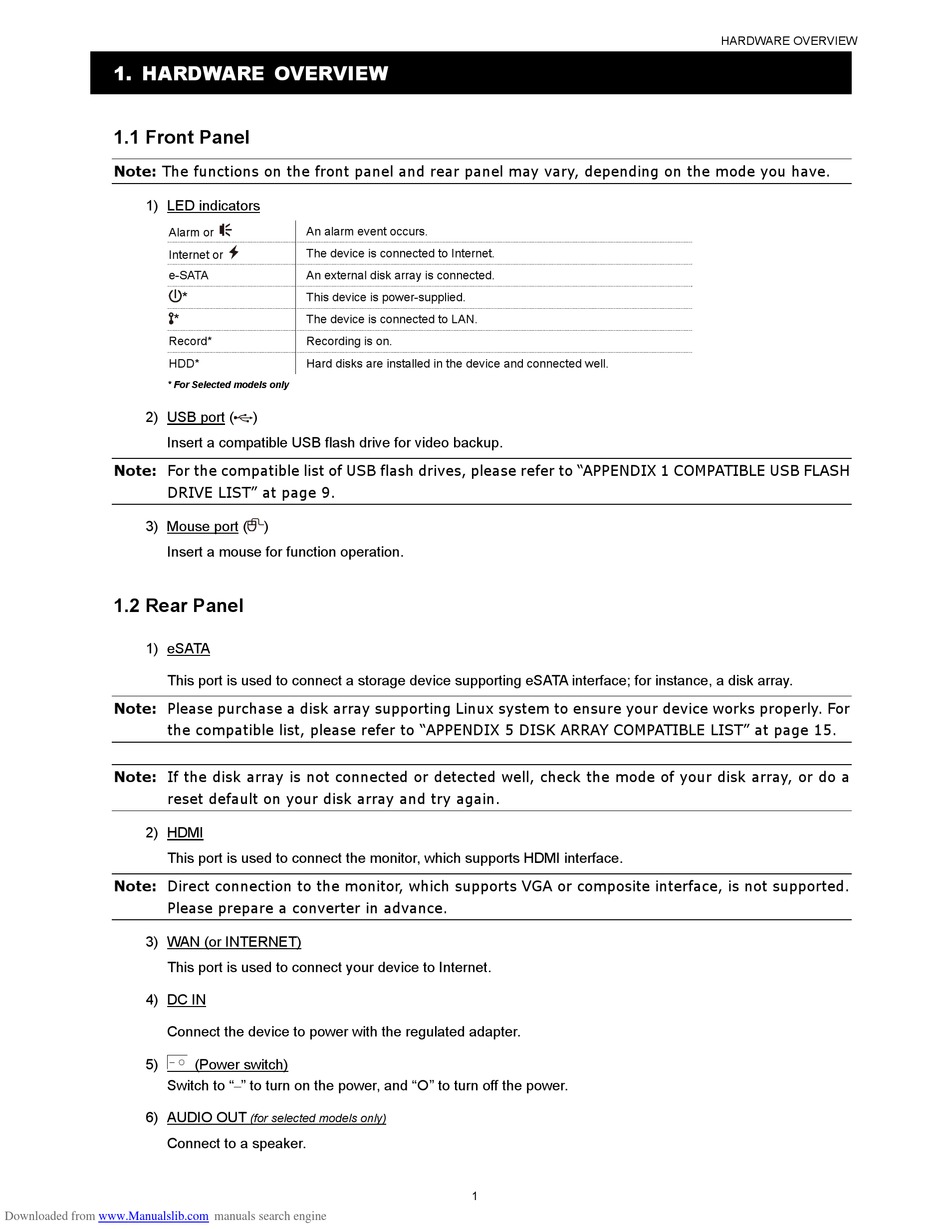

1. HARDWARE OVERVIEW

1.1 Front Panel

Note: The functions on the front panel and rear panel may vary, depending on the mode you have.
1) LED indicators
Alarm or
Internet or
e-SATA
*
*
Record*
HDD*
* For Selected models only
2) USB port (
Insert a compatible USB flash drive for video backup.
Note: For the compatible list of USB flash drives, please refer to "APPENDIX 1 COMPATIBLE USB FLASH
DRIVE LIST" at page 9.
3) Mouse port (
Insert a mouse for function operation.
1.2 Rear Panel
1) eSATA
This port is used to connect a storage device supporting eSATA interface; for instance, a disk array.
Note: Please purchase a disk array supporting Linux system to ensure your device works properly. For
the compatible list, please refer to "APPENDIX 5 DISK ARRAY COMPATIBLE LIST" at page 15.
Note: If the disk array is not connected or detected well, check the mode of your disk array, or do a
reset default on your disk array and try again.
2) HDMI
This port is used to connect the monitor, which supports HDMI interface.
Note: Direct connection to the monitor, which supports VGA or composite interface, is not supported.
Please prepare a converter in advance.
3) WAN (or INTERNET)
This port is used to connect your device to Internet.
4) DC IN
Connect the device to power with the regulated adapter.
5)
Switch to "–" to turn on the power, and "" to turn off the power.
6) AUDIO OUT
Connect to a speaker.
Downloaded from www.Manualslib.com
An alarm event occurs.
The device is connected to Internet.
An external disk array is connected.
This device is power-supplied.
The device is connected to LAN.
Recording is on.
Hard disks are installed in the device and connected well.
)
)
(Power switch)
(for selected models only)
