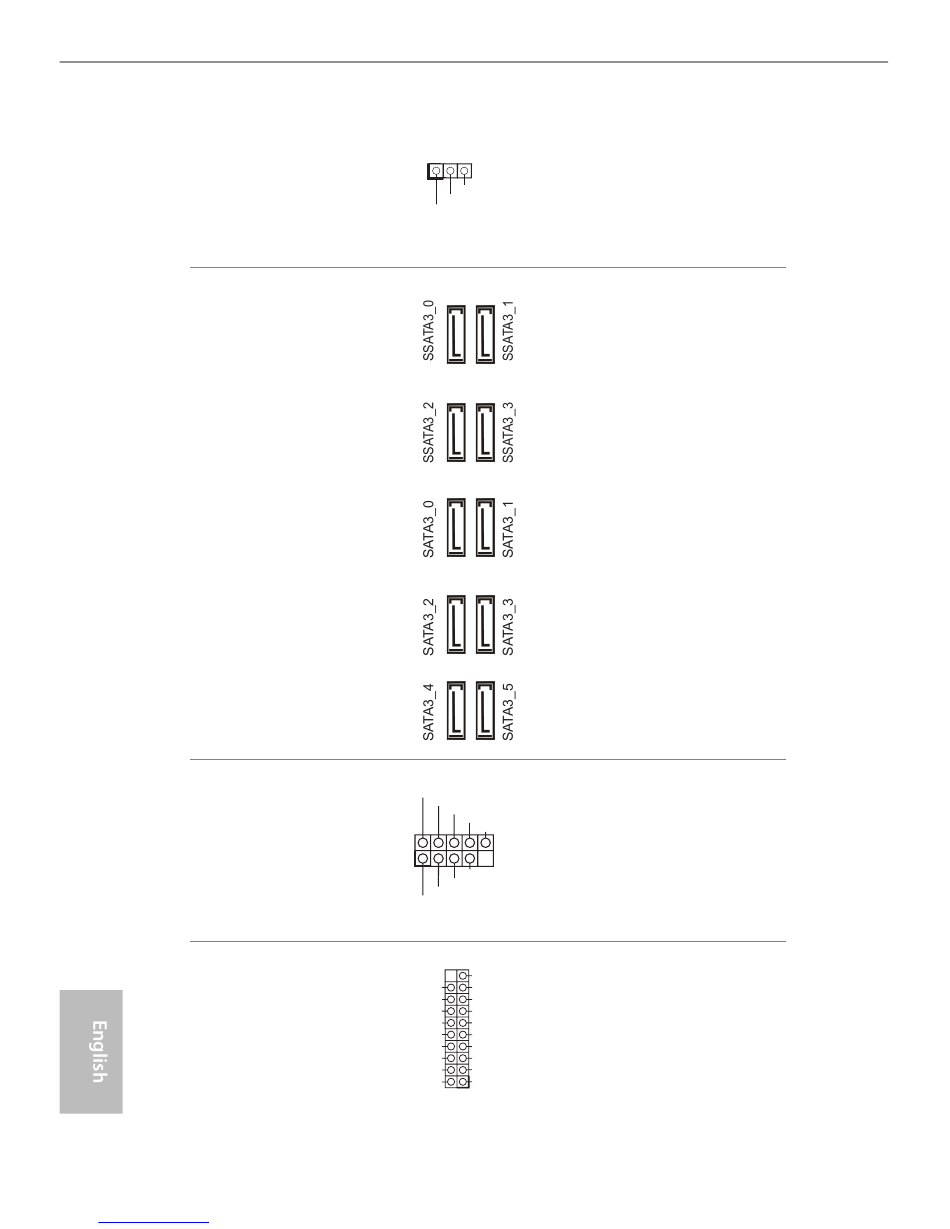

Power LED Header
(3-pin PLED1)
(see p.1, No. 16)
Serial ATA3 Connectors
(SSATA3_0_1:
see p.1, No. 9)
(SSATA3_2_3:
see p.1, No. 10)
(SATA3_0_1:
see p.1, No. 11)
(SATA3_2_3:
see p.1, No. 12)
(SATA3_4_5:
see p.1, No. 13)
USB 2.0 Headers
(9-pin USB4_5)
(see p.1, No. 20)
(9-pin USB6_7)
(see p.1, No. 21)
USB 3.0 Header
(19-pin USB3_4_5)
(see p.1, No. 7)
manuals search engine
Please connect the chassis
1
power LED to this header
PLED-
PLED+
PLED+
to indicate the system's
power status.
hese ten SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
If the Ultra M.2 Socket
has been occupied, the
internal SSATA3_2 will
not function.
* RAID is supported on
SATA3_0 ~ SATA3_5
ports only.
Besides four USB 2.0 ports
USB_PWR
P-
P+ on the I/O panel, there
GND
DUMMY
are two headers on this
motherboard. Each USB
1
GND
2.0 header can support
P+
P-
USB_PWR
two ports.
Besides four USB 3.0
Vbus Vbus
Vbus IntA_PB_SSRX-
ports on the I/O panel,
IntA_PA_SSRX- IntA_PB_SSRX+
IntA_PA_SSRX+ GND
there is one header on this
GND IntA_PB_SSTX-
IntA_PA_SSTX-
IntA_PB_SSTX+
motherboard. his USB
IntA_PA_SSTX+
GND
GND IntA_PB_D-
3.0 header can support
IntA_PA_D- IntA_PB_D+
IntA_PA_D+
Dummy
two ports.
1
