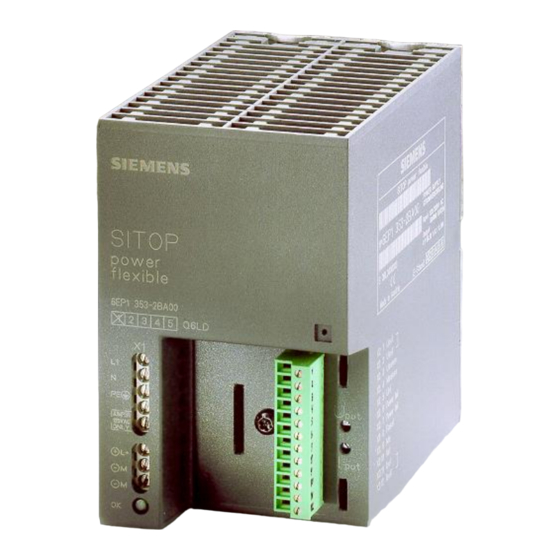

- Seite 1 SITOP power flexi 6EP1353-2BA00 Betriebsanleitung Best. Nr.: C98130-A7518-A1-03-7419 Operating instructions Siemens AG Österreich, 03.2001 SITOP power flexi...
-
Seite 2: Montage / Installation
These instructions cannot claim to cover all details of possible equipment variations, nor in particular can they provide for every possible example of installation, operation or maintenance. Further information is obtainable from your local Siemens office or from Catalog KT 10 Power Supplies SITOPpower. Subject to change without prior notice. - Seite 3 120 V range, a jumper must be wired between the two "AC120 V-JUMPER"-terminals. It must have the same cross-section and insulation as the power supply cables. It must not be longer than 100 mm ( 4 in.). WARNING: The necessary jumper also carries dangerous electrical voltage ! Siemens AG Österreich, 03.2001 SITOP power flexi...
- Seite 4 (front). If jumper is not fitted, remote setting of the current limit by means of voltage signal at terminal X2-12 X2-12 (signal ground X2-9); here, a voltage signal of 0.5 - 2.5 V corresponds to a current limit of 2 to 10 A. ┘ soll Siemens AG Österreich, 03.2001 SITOP power flexi...
- Seite 5 0,5V load line at full load operation if using switching device in load line, load sense + line and sense line must be turned off in common Load sense - max. 0,5V Siemens AG Österreich, 03.2001 SITOP power flexi...
- Seite 6 Herausgegeben vom Elektronikwerk Wien (EWW) Bereich A&D Siemens AG Österreich All rights reserved. Siemensstraße 88-92 A 1210 Wien Liefermöglichkeiten und technische Änderungen vorbehalten Siemens AG Österreich Bestell-Nr. C98130-A7518-A1-03-7419 Printed in Austria BA 03.2001...
