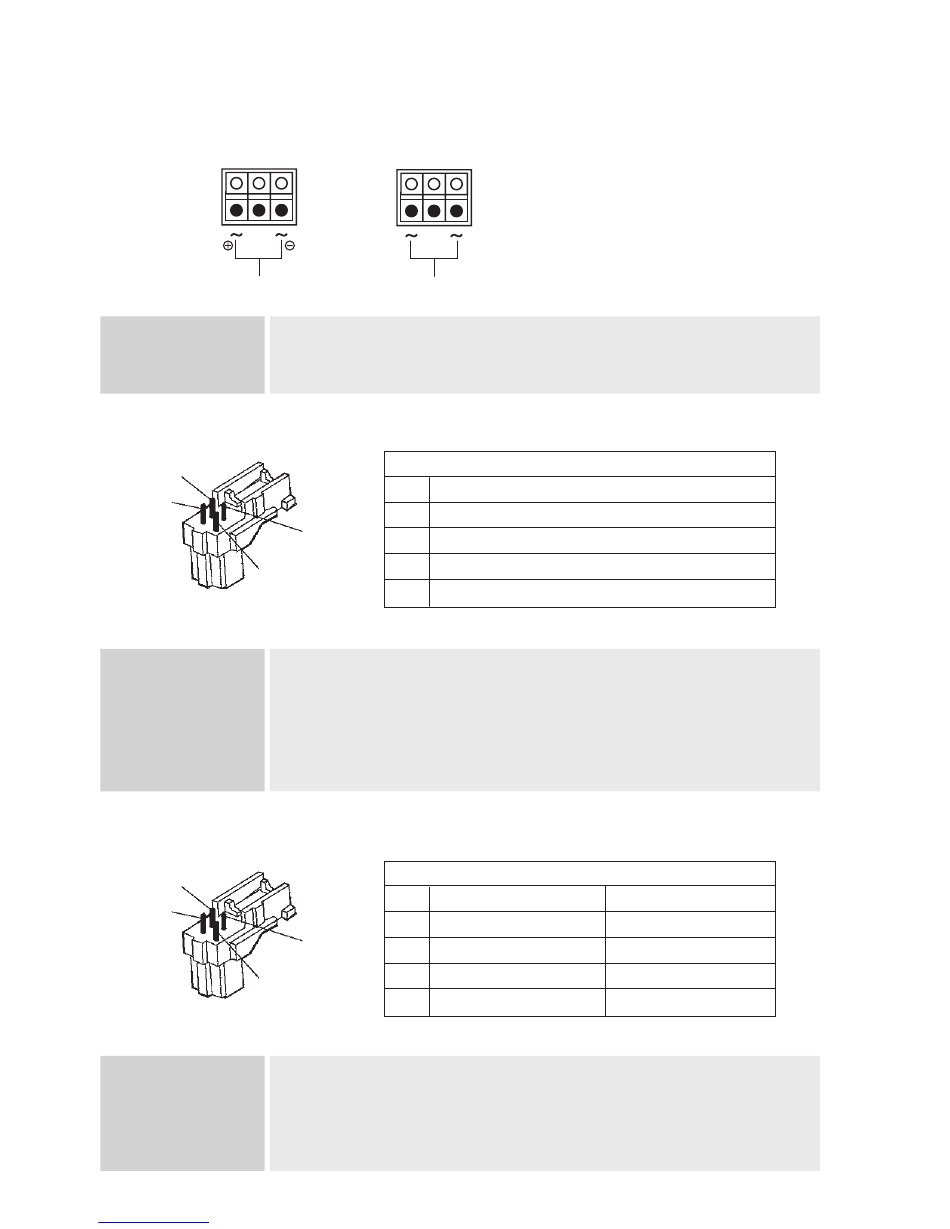

4. Pinout

Power Supply at the VKC-1330IR12-24
12VDC
Note
3
1
Lens connection
Signal level
Remark
3
1
Lens connection
Signal level
Downloaded from www.Manualslib.com
24VAC
G
Only switch on the power supply when all the other connections have been carried out.
The use of power supply units with stabilised output voltage (12VDC ±10%) is
recommended.
Connector assignment for DC voltage controlled lenses
1
4
2
3
2
4
AE status of menu should be selected to manual mode and shutter speed is fixed at
normal status.
A/I switch in dc position
To be optimized with LEVEL potentiometer
Use only DC voltage controlled lenses with internationally standardized plug pinout.
Connector assignment for Videosignal controlled lenses
1
4
2
3
2
4
AE status of menu should be selected to manual mode and shutter speed is fixed at
normal status.
A/I switch in video position
Optimise via the „LEVEL" regulator on the AI lens.
manuals search engine
G
Description
Damping (-)
Damping (+)
Control (+)
Control (-)
Description
Supply voltage
N.C.
Video
Ground
20
Colour
red
–
white
black
