PRIOR ADJUSTMENTS 1A

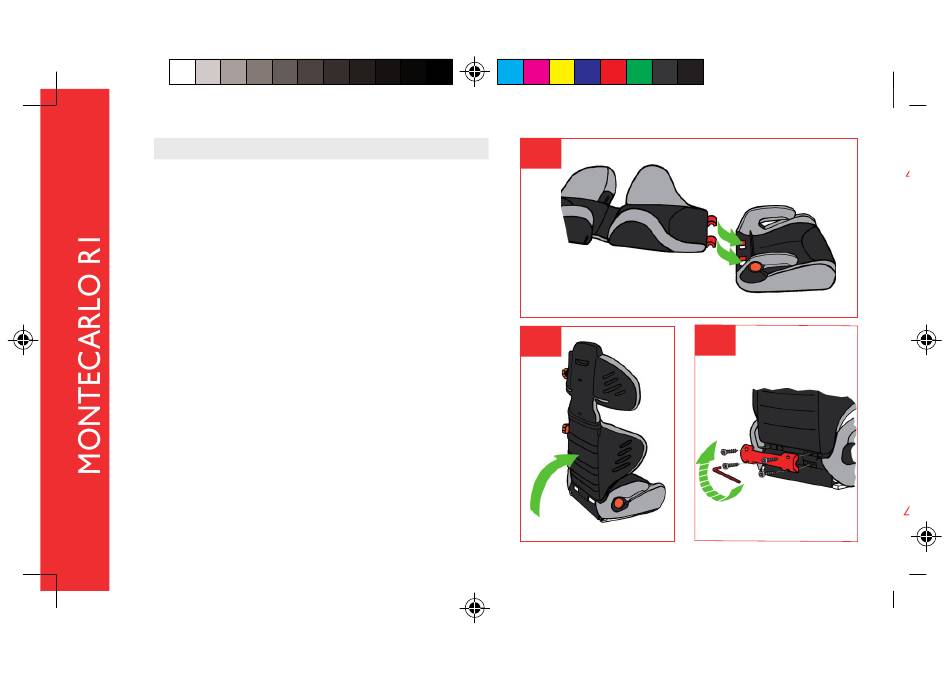

1 Assembling the backrest with the booster
To assemble the backrest on the booster cushion, lift the rear part of the
booster cushion cover, place the backrest in a horizontal position and slot
the two legs of the backrest into the booster cushion holes (1a).
Turn the backrest to its vertical position (1b).
Place the blocking part in the rear part of the legs of the backrest, there
is only one position that fits perfectly, and finally secure it with the 4
screws (1c). Keep the key in case you need to disassemble it in future.
1C
1B
