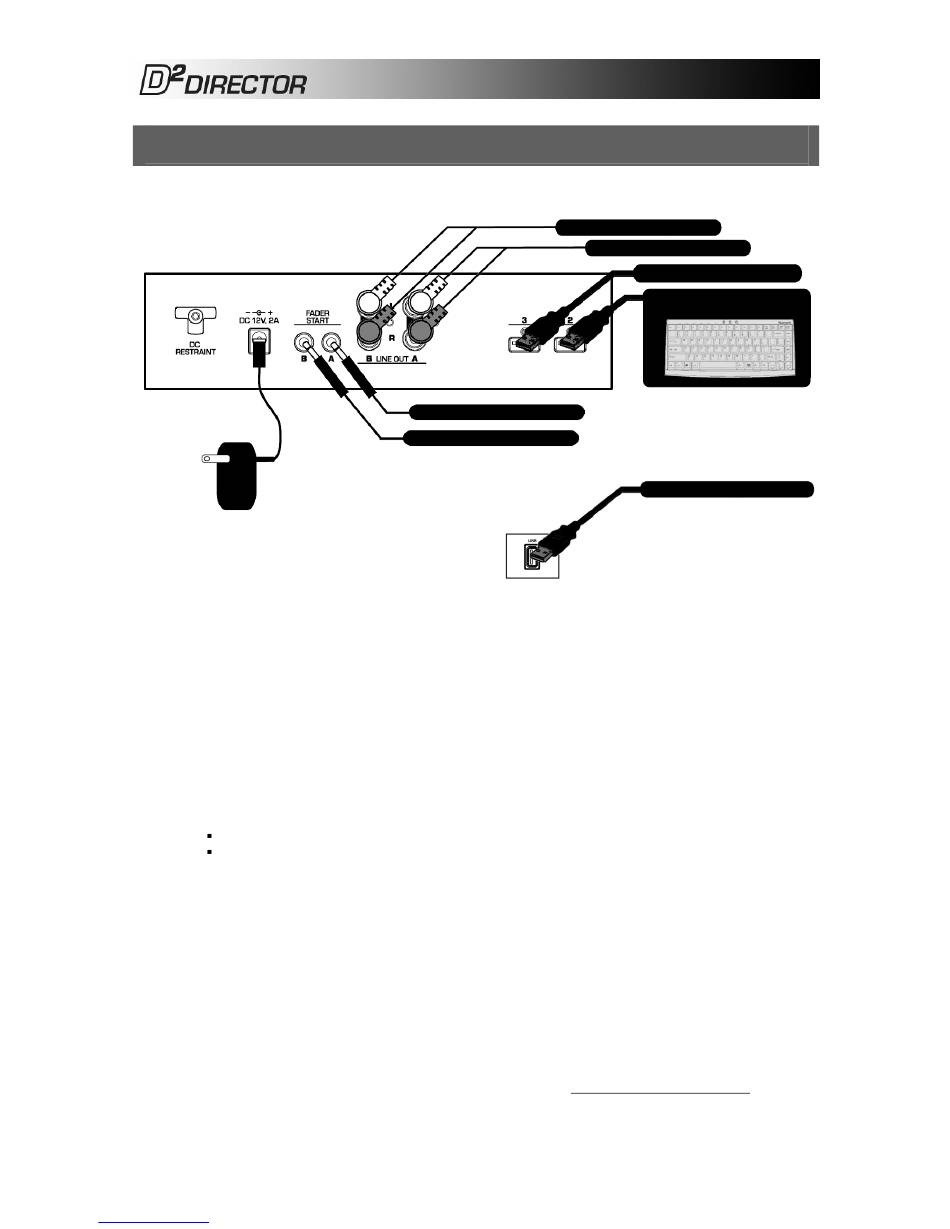

CONNECTION DIAGRAM

REAR PANEL CONNECTIONS
1.
2.
3.
4.
5.
6.
7.
8.
9.
Downloaded from www.Manualslib.com
TO
POWER
SOURCE
Make sure the following items were in the box:
• D2 Director
• Power adapter
• USB key drive
• USB keyboard
• 2 stereo RCA cables
• Quickstart Guide
• Safety Instruction Booklet
READ SAFETY INSTRUCTION BOOKLET BEFORE USING THE PRODUCT.
Study this connection diagram.
Place the D2 Director in an appropriate position for operation. You may:
Place the D2 Director on a flat surface.
Mount the D2 Director in a standard 19" 3u rackspace using four rack screws.
Make sure all devices are turned off and all faders and gain knobs are set to their lowest
level.
Connect the stereo outputs to mixer and/or other audio devices.
Plug all devices into AC power.
Switch everything on in the following order:
• D2 Director
• mixer
• amplifiers or output devices
Always reverse this operation by turning off devices in the following order:
• amplifiers or output devices
• mixer
• D2 Director
More information about this product may be found at
manuals search engine
TO MIXER LINE INPUT
TO FADER START COMPATIBLE MIXER
TO FADER START COMPATIBLE MIXER
FRONT PANEL
CONNECTIONS
(top left)
http://www.numark.com/d2
4
TO MIXER LINE INPUT
TO MASS STORAGE MEDIA USB DEVICE
TO INCLUDED KEYBOARD
TO MASS STORAGE MEDIA USB DEVICE
