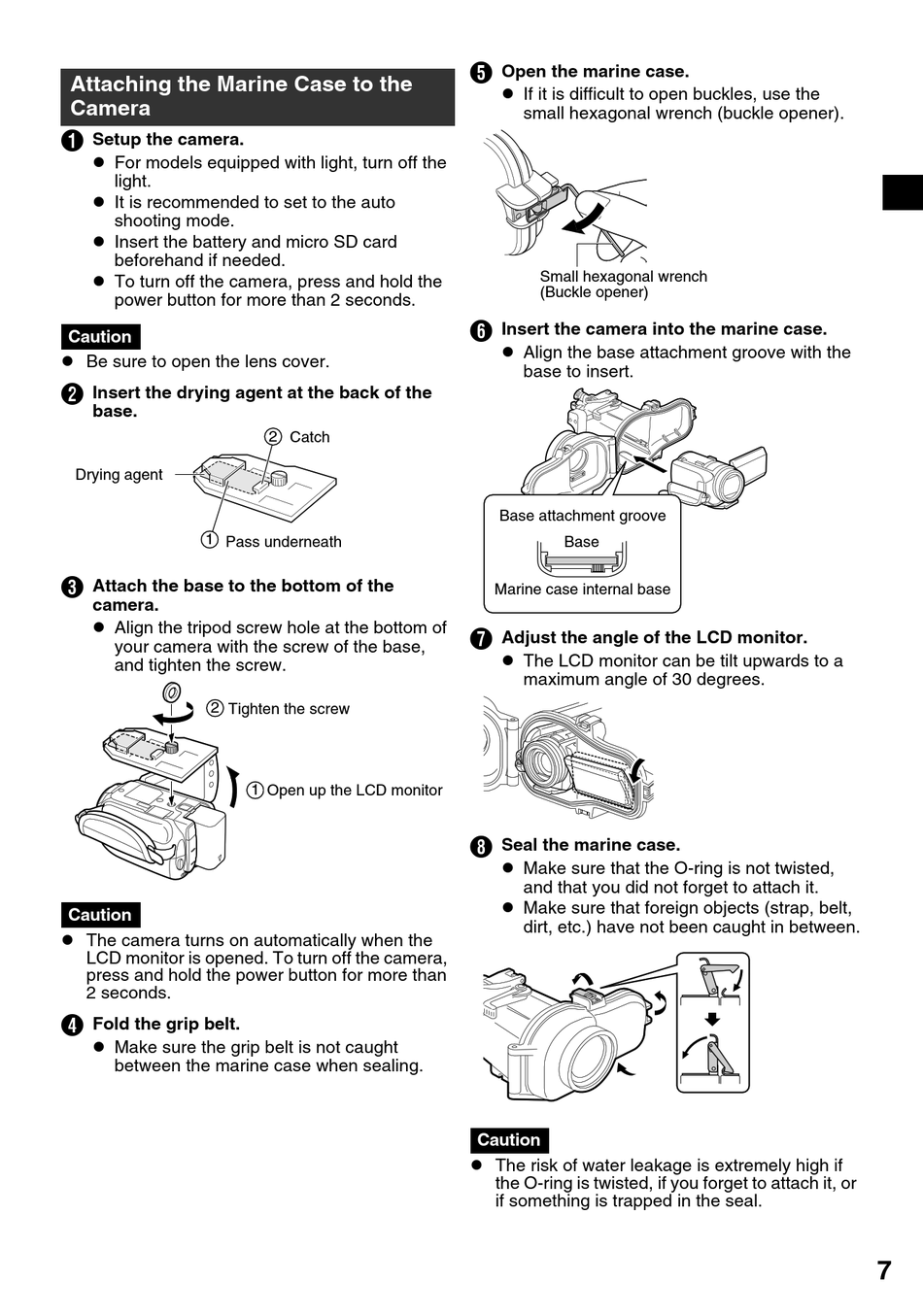

Attaching the Marine Case to the
Camera
A
Setup the camera.
For models equipped with light, turn off the
light.
It is recommended to set to the auto
shooting mode.
Insert the battery and micro SD card
beforehand if needed.
To turn off the camera, press and hold the
power button for more than 2 seconds.
Caution
Be sure to open the lens cover.
B
Insert the drying agent at the back of the
base.
Drying agent
1
Pass underneath
C
Attach the base to the bottom of the
camera.
Align the tripod screw hole at the bottom of
your camera with the screw of the base,
and tighten the screw.
2
Tighten the screw
Caution
The camera turns on automatically when the
LCD monitor is opened. To turn off the camera,
press and hold the power button for more than
2 seconds.
D
Fold the grip belt.
Make sure the grip belt is not caught
between the marine case when sealing.
2
Catch
1
Open up the LCD monitor
E
Open the marine case.
If it is difficult to open buckles, use the
small hexagonal wrench (buckle opener).
Small hexagonal wrench
(Buckle opener)
F
Insert the camera into the marine case.
Align the base attachment groove with the
base to insert.
Base attachment groove
Base
Marine case internal base
G
Adjust the angle of the LCD monitor.
The LCD monitor can be tilt upwards to a
maximum angle of 30 degrees.
H
Seal the marine case.
Make sure that the O-ring is not twisted,
and that you did not forget to attach it.
Make sure that foreign objects (strap, belt,
dirt, etc.) have not been caught in between.
Caution
The risk of water leakage is extremely high if
the O-ring is twisted, if you forget to attach it, or
if something is trapped in the seal.
