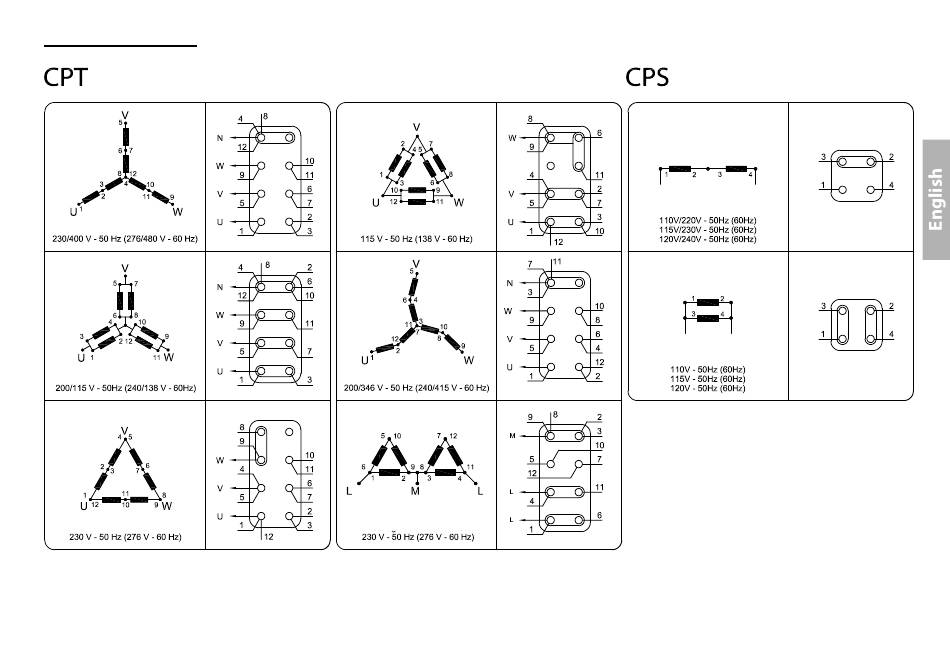

7. TERMINAL CONNECTION DIAGRAMS

Star + neutral series connection
Parallel + neutral star connection
Series triangle connection
Note: The single phase voltage reference (terminals 5 and 6 of the HVR-11) must be always connected between the winding terminals 1 and 2.
Parallel triangle connection
Zig-zag / neutral connection
Single-phase connection
- 15 -
Series connection
Parallel connection
