Siemens SIMATIC NET 6GK1 901-1GA00 Gebrauchsanleitung

Gebrauchsanleitung für SIMATIC NET Industrial Ethernet FastConnect Stripping Tool
Yellow for: SCALANCE W Hybrid Plug
6GK1901-1FC00-0AA0
yellow
6GK1901-1BB10-6AA0
Green for: 6GK1901-1BB10-2A...
6GK1901-1BB20..., 1BB30...
green
6GK1901- 0DB...

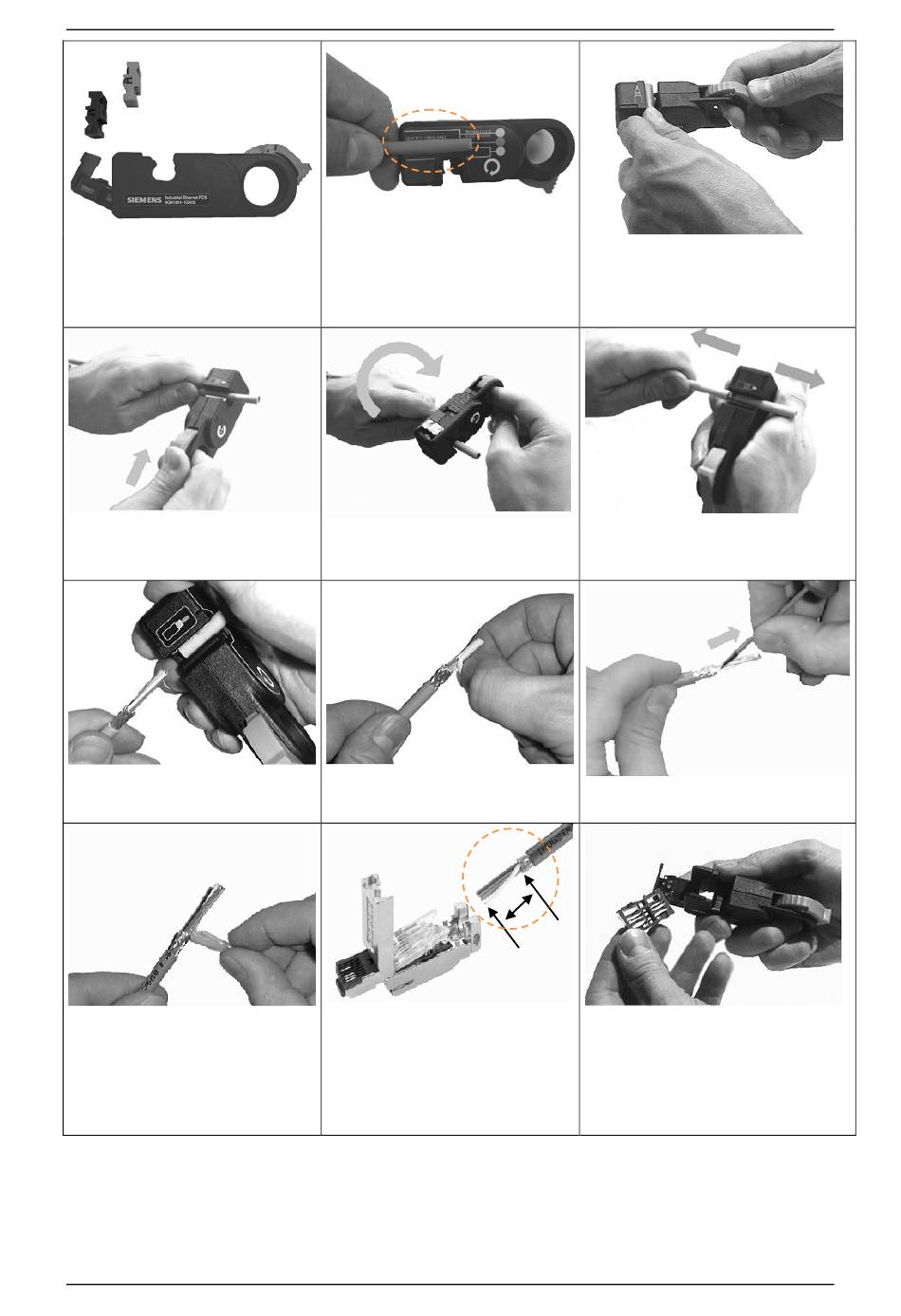

1. Fit the required knife cassette in the
stripping tool. If your stripping tool was
supplied with a yellow knife cassette,
the cutting depth must be adjusted
with the middle socket-head screw
after fitting the new cassette!
5. Tighten the stripping tool fully.
8. After releasing the tool, remove the
remnants of the cable from it.
11. Pull the protective foil off the wires
12. Ensure the wires have not been cut
into as a result of stripping the cable
jacket and the shield. If this is the
case, the cutting knife must be
adjusted.
For more detailed information on setting up networks, refer to the SIMATIC NET Industrial
Ethernet Network Manual
Copyright © 2018 Siemens AG
2. Take the stripping tool in your right
hand.
3. Measure the cable length by placing
the cable against the measuring
template. Use your left index finger as
a limit stop.
6. To strip the insulation, turn the tool in
the direction of the arrow
- approx. 4 times for PVC insulation,
- approx, 8 times for PUR insulation.
9. If the white filler was not removed
during stripping, pull this off with your
hand.
for
6GK1901-1BBx0-xxx
13. Follow the instructions supplied
with your connector or outlet.
14. Make sure the length of the cores
corresponds to the dimensions
stated in the assembly instructions
for the respective plugs.
4. Fit the measured end of the cable into the
stripping tool as far as allowed by the
index finger of your left hand.
7. Keeping the stripping tool closed, pull it
off the end of the cable along with the
jacket and remnants of the shield.
10. The protective foil is easier to remove if
you score it between the wires with a
screwdriver.
18 mm
15. Replace the knife cassette after approx:
- 1500 operations with cables
with PVC outer jackets;
- 150 operations with cables
with PUR outer jackets.
Order numbers for knife cassettes:
Green: 6GK1901-1GB01
Yellow: 6GK1901-1GB00
6GK1 901-1GA00
