2: Connecting the antennas

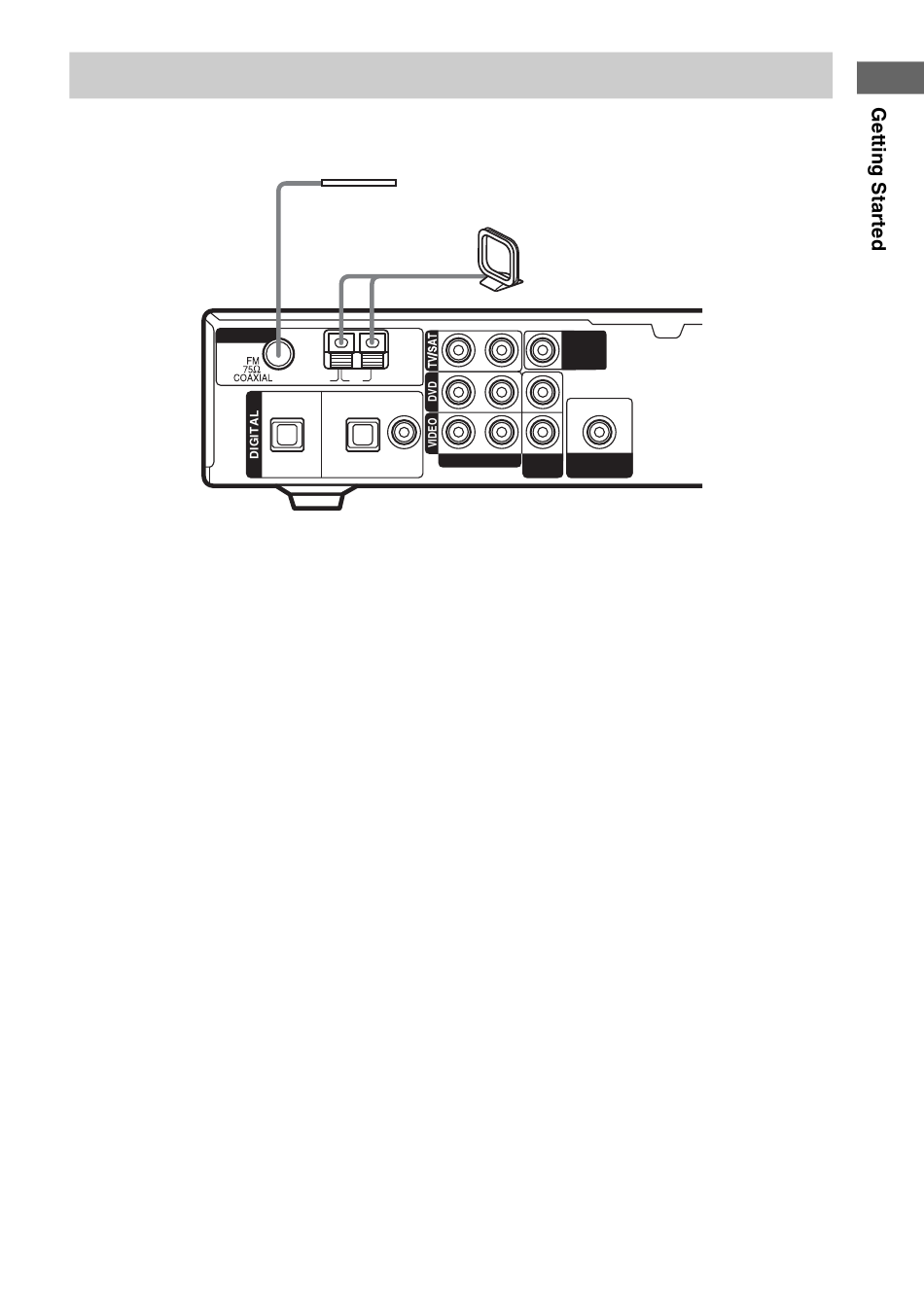

Connect the supplied AM loop antenna and FM wire antenna.
ANTENNA
Notes
• To prevent noise pickup, keep the AM loop antenna away from the receiver and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as horizontal as possible.
FM wire antenna
(supplied)
