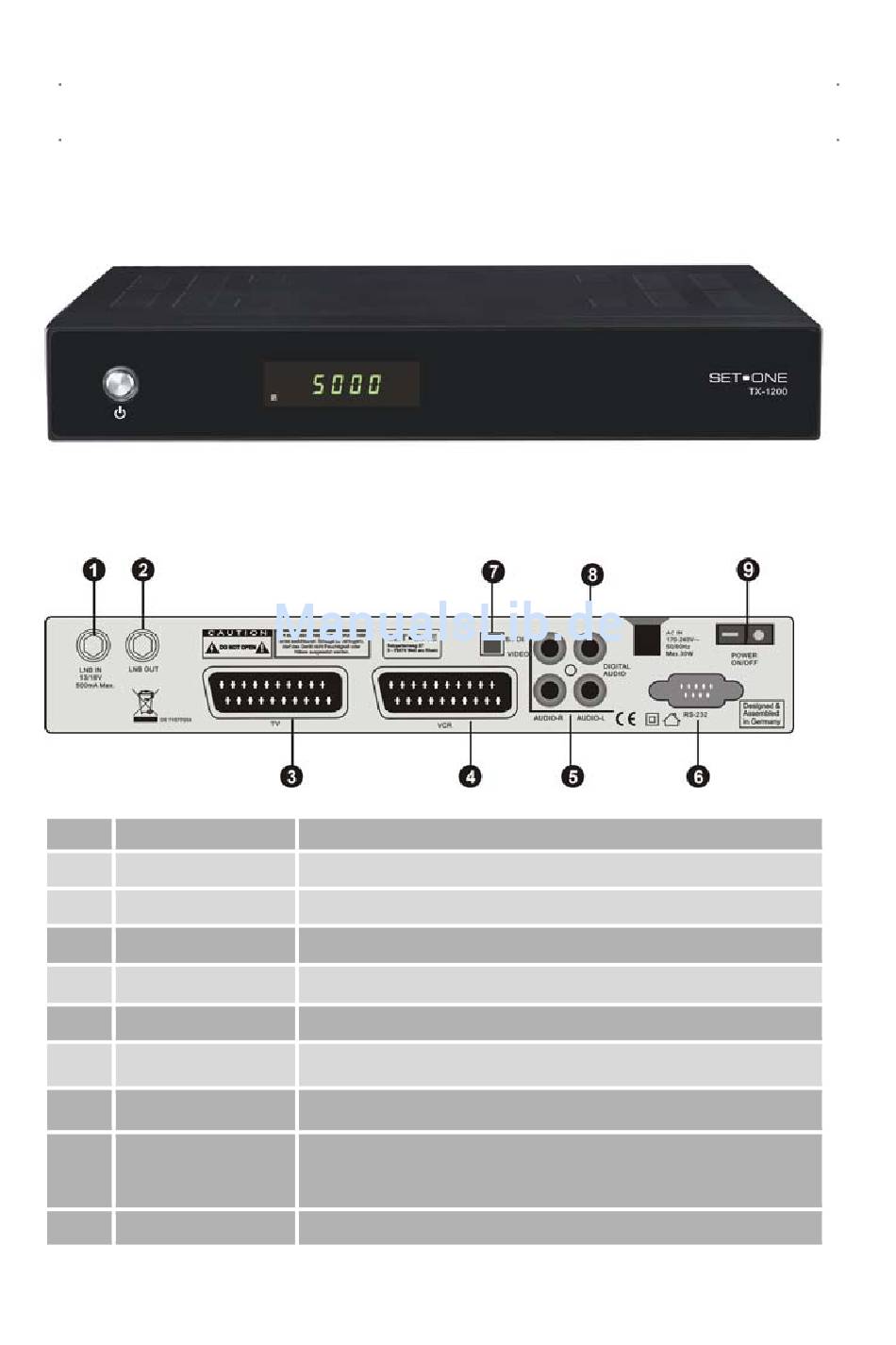

Front Panel/ Rear Panel

Front Panel
Press to switch between operation and standby modes
Rear Pnel
No. Symbol
1 LNB INPUT
2 TV SCART
3 VCR SCART
4 A/V RCA:
5 RS-232
LNB OUTPUT
6
7
SPDIF
8
Digital Audio
9 POWER
Function
Use to connect an antenna.
For the video/audio input of the TV.
For the video/audio input of VCR.
To connect the Audio/Video RCA output to TV.
Use it when connecting to your PC.
Use it when connecting to another STB.
SPDIF audio format output system.
SPDIF format sound by coaxial and optical
output
Power ON/OFF switch.
