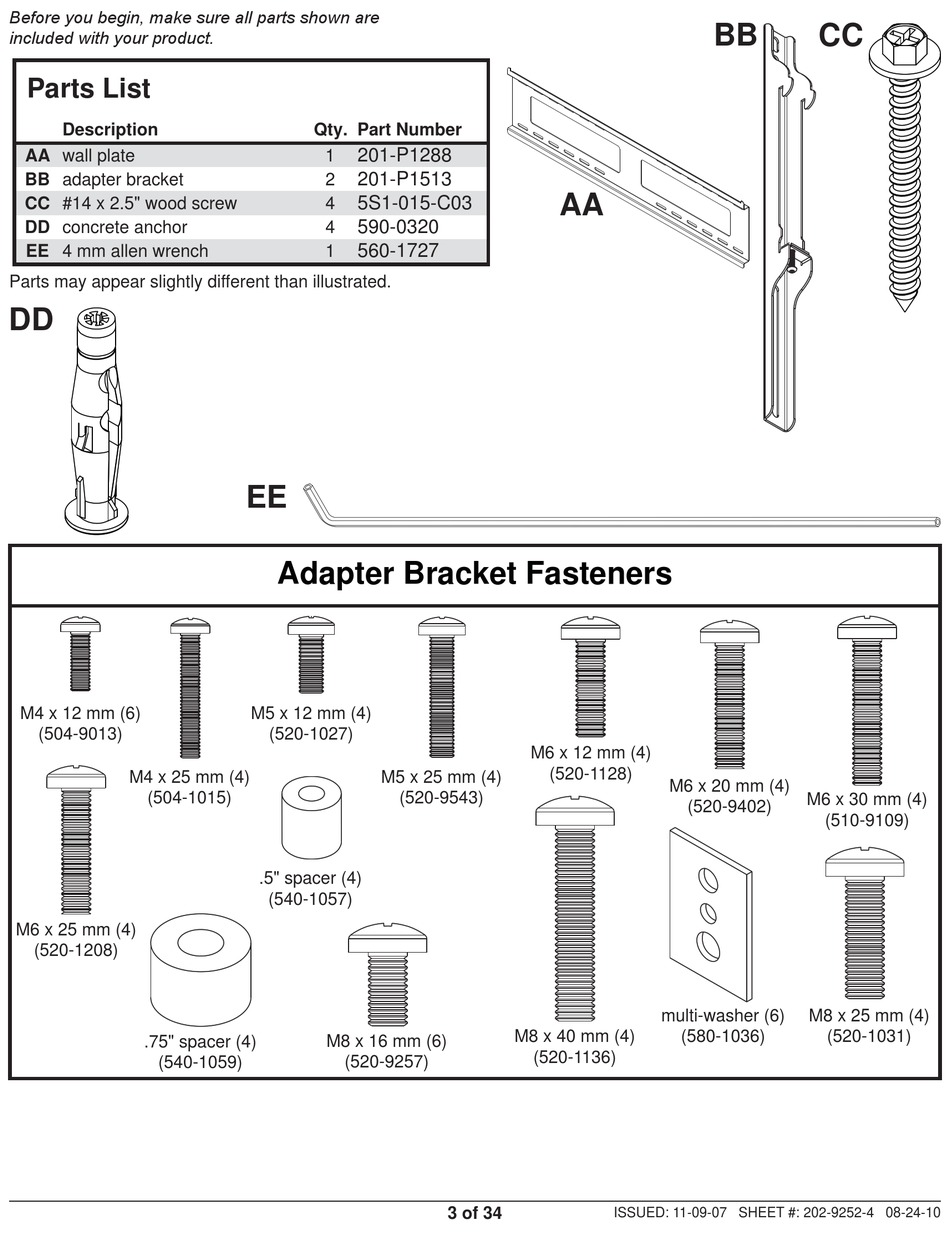

Parts List

Description
AA wall plate
BB adapter bracket
CC #14 x 2.5" wood screw
DD concrete anchor
EE 4 mm allen wrench
Parts may appear slightly different than illustrated.
DD
M4 x 12 mm (6)
(504-9013)
M4 x 25 mm (4)
(504-1015)
M6 x 25 mm (4)
(520-1208)
.75" spacer (4)
(540-1059)
Qty. Part Number
201-P1288
1
201-P1513
2
5S1-015-C03
4
590-0320
4
560-1727
1
EE
Adapter Bracket Fasteners
M5 x 12 mm (4)
(520-1027)
M5 x 25 mm (4)
(520-9543)
.5" spacer (4)
(540-1057)
M8 x 16 mm (6)
(520-9257)
AA
M6 x 12 mm (4)
(520-1128)
M8 x 40 mm (4)
(520-1136)
3 of 34
ISSUED: 11-09-07 SHEET #: 202-9252-4 08-24-10
BB CC
M6 x 20 mm (4)
M6 x 30 mm (4)
(520-9402)
(510-9109)
multi-washer (6) M8 x 25 mm (4)
(580-1036) (520-1031)
