PEERLESS PARAMOUNT PF650 Installation Und Montage Seite 7

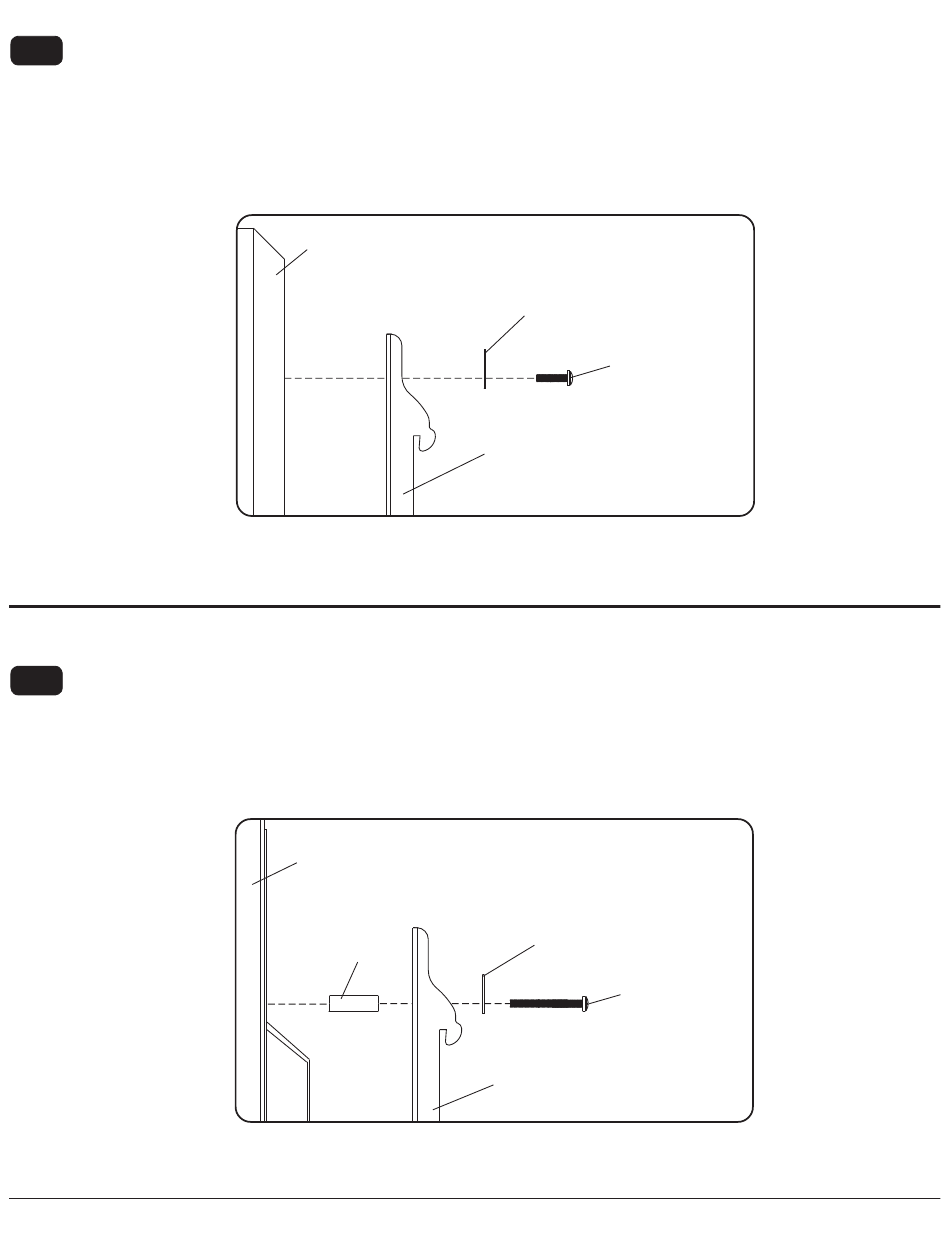

For Flat Back Screen
Begin with the shortest length screw, hand thread through multi-washer and adapter bracket into screen as shown
2-1
below. Screw must make at least three full turns into the mounting hole and fi t snug into place. Do not over tighten.
If screw cannot make three full turns into the screen, select a longer length screw from the baffl ed fastener pack.
Repeat for remaining mounting holes, level brackets and tighten screws.
NOTE: Spacers may not be used, depending upon the type of screen.
If you have any questions, please call Peerless customer care at 1-800-865-2112.
For Bump-out or Recessed Back Screen
Begin with longer length screw, hand thread through multi-washer, adapter bracket and spacer in that order into
2-2
screen as shown below. Screw must make at least three full turns into the mounting hole and fi t snug into place.
Do not over tighten. If screw cannot make three full turns into the screen, select a longer length screw from the
baffl ed fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.
If you have any questions, please call Peerless customer care at 1-800-865-2112.
SCREEN
SCREEN
SPACER
7 of 34
MULTI-WASHER
SCREW
ADAPTER BRACKET (BB)
fi g 2.2
MULTI-WASHER
SCREW
ADAPTER BRACKET (BB)
ISSUED: 11-09-07 SHEET #: 202-9252-4 08-24-10
fi g 2.1
